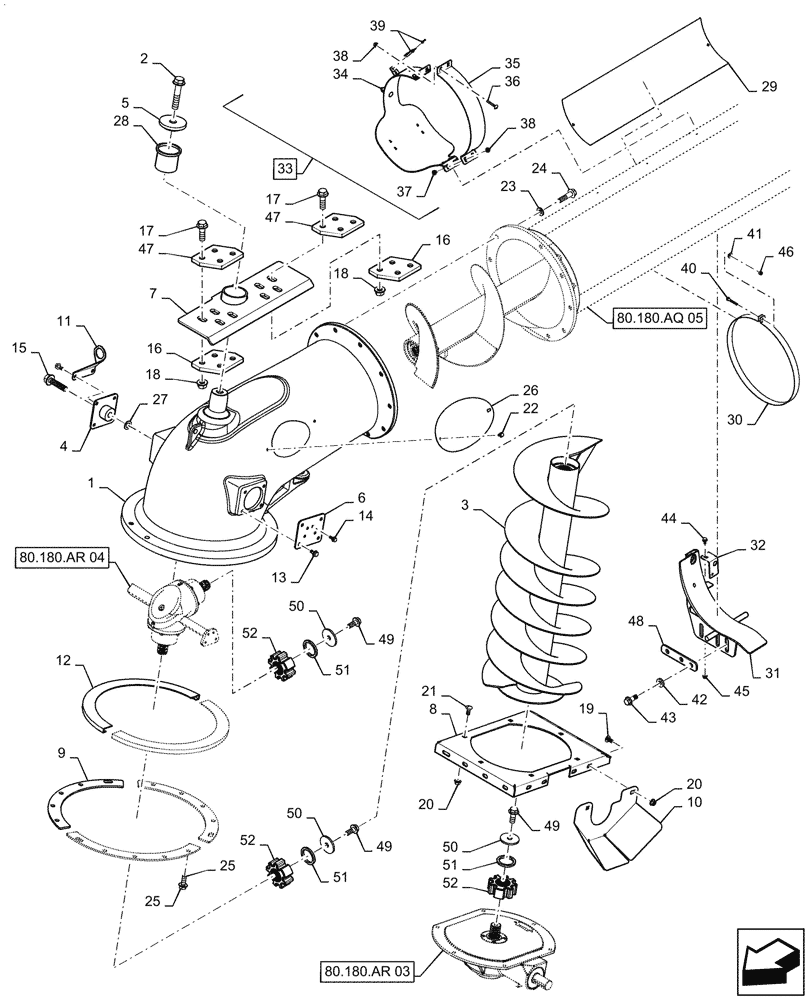

Запчасти Case IH 7230 (80.180.AP[04]) - VAR - 425346 - UNLOADING TUBE, HIGH SPEED, HIGH CAPACITY, PERFORATED 6.4M (21FT) (80) - CROP STORAGE/UNLOADING

1

47463149

ELBOW

Unload Tube

1шт.

2

84163827

BOLT,M20 x 118.9mm OAL, Cl 10.9

1шт.

3

84522663

AUGER

Vertical Unload, Extended Wear, Serial Range: -YGG231218

1шт.

3

47886360

AUGER

Vertical Unload, Extended Wear, 8 Spline, Start Serial: YGG231219

1шт.

4

84357568

PLATE

Elbow, Side, 127mm W x 127mm OAL

1шт.

5

47463148

PLATE

Top Pivot Washer, 21mm ID x 95mm OD x 20mm Thk

1шт.

6

47377660

PLATE

Elbow, Side, 124.5mm W x 143mm OAL

1шт.

7

47471338

CHANNEL

Beam, Pivot

1шт.

8

84344564

PLATE

Elbow Base, 513.5mm W x 606.2mm OAL

1шт.

9

84373488

WIRE CLAMP

Ring Base

3шт.

10

84416047

SHIELD

Gearbox Guard

1шт.

11

84511607

BRACKET

Plate W/ Eye Hook

1шт.

12

84343576

RING,PLASTIC

Plastic Pivot, 14mm Thk

2шт.

13

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

8шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

15

84415414

BOLT,M20 x 98.9mm OAL, Full Thd, Cl 10.9

1шт.

16

47481113

PLATE

Top Pivot Gang Washer, 168mm W x 126.5mm OAL

4шт.

17

47506619

BOLT,M20 x 88.9mm OAL, Full Thd, Cl 10.9

8шт.

18

47490610

NUT,M12 x 31.8mm OAL, Cl 8.8, Full Thd

8шт.

19

9503839

CARRIAGE BOLT,Short NK, M12 x 25, Cl8.8, Full Thd

16шт.

20

86512497

FLANGE NUT,M12 x 1.75, Cl 10

22шт.

21

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

6шт.

22

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

23

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

10шт.

24

47411035

BOLT,Hex Flng, M16 x 60mm, Full Thd, Cl 10.9

10шт.

25

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

15шт.

26

84397140

COVER

Unload Tube Elbow

1шт.

27

13580001

WASHER,21mm ID x 36mm OD x 0.5mm Thk

1шт.

28

47463129

BUSHING

HC Top Pivot

1шт.

29

84399226

COVER

Perforated

1шт.

30

84399231

CLAMP

Perforated Cover

4шт.

31

84485433

CRADLE

Unload Tube Saddle

1шт.

32

47360554

BRACKET

Supporting

1шт.

33

47839523

CLAMP BRACKET

Assy, Unload Tube, Upgrade

1шт.

33

84522169

SECURING STRAP,388.8mm ID

Unload Tube, Incl 34 - 39

1шт.

34

47405791

BAND

Lower

1шт.

35

84315380

BAND

Upper, 520.4mm OAL x 75mm W

1шт.

36

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

37

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

38

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

39

87106279

PIN,6.4mm OD

Klik, Quick Connect, 6.4mm OD x 54.7mm OAL

1шт.

40

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

4шт.

41

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

42

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

3шт.

43

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

3шт.

44

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

45

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

46

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

47

47548526

PLATE

Upper Elbow, 126.5mm W x 168mm OAL

2шт.

48

47535076

PLATE

Saddle Support, 200mm OAL x 40mm W

1шт.

49

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

, Start Serial: YGG231219

3шт.

50

327084

WASHER,13mm ID x 52mm OD x 5mm Thk

, Start Serial: YGG231219

3шт.

51

47832557

SPACER

Hub, Start Serial: YGG231219

3шт.

52

47745647

COUPLING

Course, Start Serial: YGG231219

3шт.
