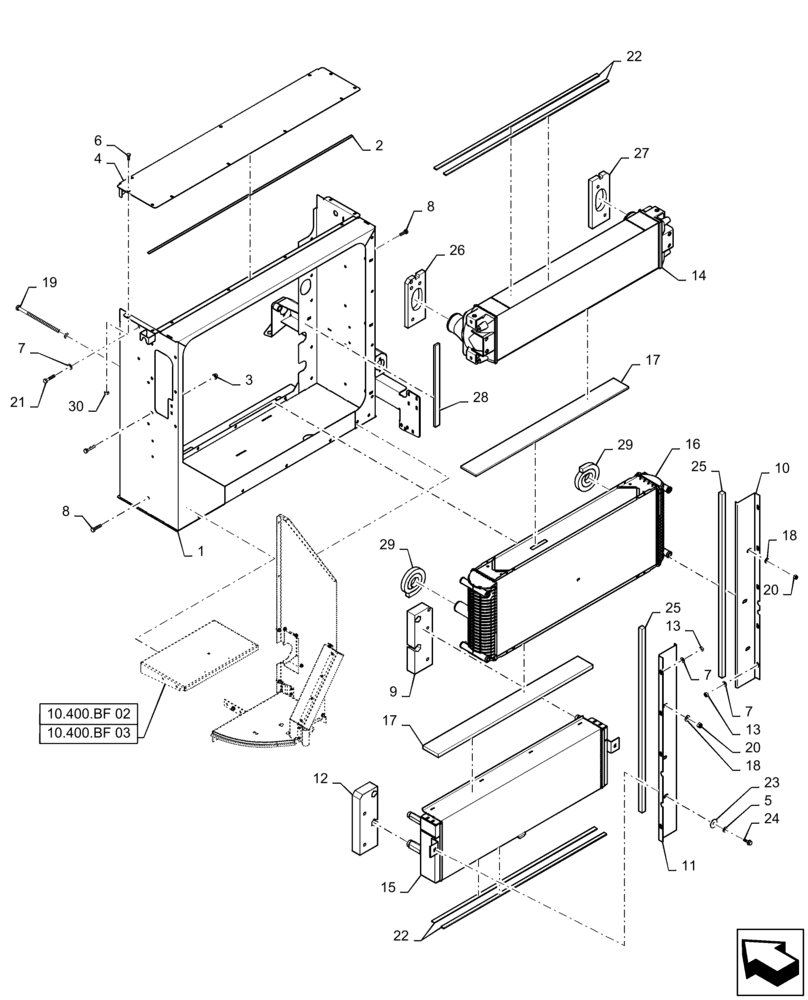

Запчасти Case IH 7230 (10.400.BF[01]) - COOLER ASSY., AIR DUCT, OIL COOLER, 7230 (10) - ENGINE

1

84554233

FRAME

Cooler Box

1шт.

2

87510717

SEALING STRIP,10mm W x 1459mm L x 3.174mm Thk

Tape

1шт.

3

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

10шт.

4

87380303

COVER ASSY

Cooler Box

1шт.

5

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

8

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

9шт.

9

84331748

FOAM INSULATION

Seal

1шт.

10

84170569

PLATE

Side Panel, Painted

1шт.

11

87388375

PLATE

Side Panel, Painted

1шт.

12

84359439

FOAM INSULATION

Oil Cooler Air Seal

1шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

9шт.

14

87578692

INTERCOOLER,Charge Air

Air

1шт.

15

87378363

COOLER, OIL

1шт.

16

87378361

RADIATOR

Coolant

1шт.

17

87584962

SEALING STRIP

Foam

2шт.

18

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

19

364053

BOLT,Hex, M12 x 1.75 x 220mm, Cl 8.8

4шт.

20

100038

NUT,M12 x 1.75, Cl 8

4шт.

21

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

22

292029

SPECIAL TOOL

1/4" X 3/4"

1шт.

23

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

M8

2шт.

24

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

25

87710390

SEALING STRIP,25.4mm W x 1190mm L x 25.4mm Thk

Baffle

2шт.

26

84359435

FOAM INSULATION

Upper Cooler Box, Intercooler

1шт.

27

84331743

FOAM INSULATION

Upper Cooler Box, Intercooler

1шт.

28

87419199

FOAM INSULATION,31.8mm W x 520mm L x 12.7mm Thk

Tape, Inner Box

1шт.

29

WIC291355

PAD

Poly Foam

1шт.

30

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.
