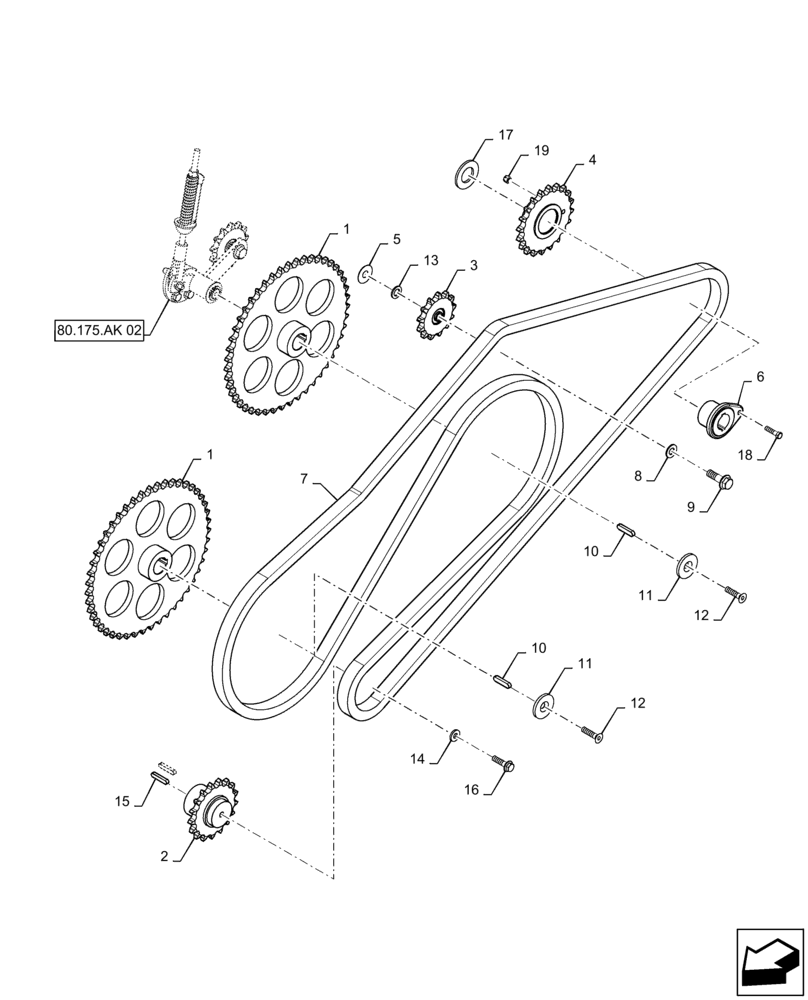

Запчасти Case IH 7230 (80.175.AK[01]) - VAR - 425364 - CHAIN, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING

1

84377231

SPROCKET

47 Teeth, 80 Standard

2шт.

2

84416055

SPROCKET,39.525mm ID x 154.1mm OD x 83.7mm Thk

17 Teeth, 80 Standard

1шт.

3

84401598

SPROCKET,39.967mm ID x 118.4mm OD x 14.61mm Thk

Idler, 13 Teeth, 80 Standard

1шт.

4

84376918

SPROCKET,60.08mm ID x 178.16mm OD x 40mm Thk

20 Teeth, 80 Standard

1шт.

5

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

1шт.

6

84376911

HUB

38.1mm ID

1шт.

7

84566255

CHAIN,80, 220 Links x 25.4mm = 5588mm

Unload Drive

1шт.

8

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

9

87698849

BOLT,M16 x 50mm, Cl 10.9

1шт.

10

170056

KEY,12mm W x 50mm OAL

2шт.

11

84351012

THRUST WASHER,13.5mm ID x 60mm OD x 6.35mm Thk

13.5mm ID x 60mm OD x 6.35mm W

2шт.

12

87654459

SCREW

M12 x 50mm OAL

2шт.

13

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

14

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

1шт.

15

170012

KEY,8mm W x 50mm OAL

2шт.

16

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

1шт.

17

84377890

WASHER,38.2mm ID x 69.9mm OD x 5mm Thk

38.2mm ID x 69.9mm OD x 5mm W

1шт.

18

246309

SHEAR BOLT

1 - 1/2" OAL x 3/8" Thread

1шт.

19

88902

NUT,3/8"-16

1шт.
