Запчасти Case IH 7230 (80.175.AG[03]) - VAR - 425365 - DRIVE, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING

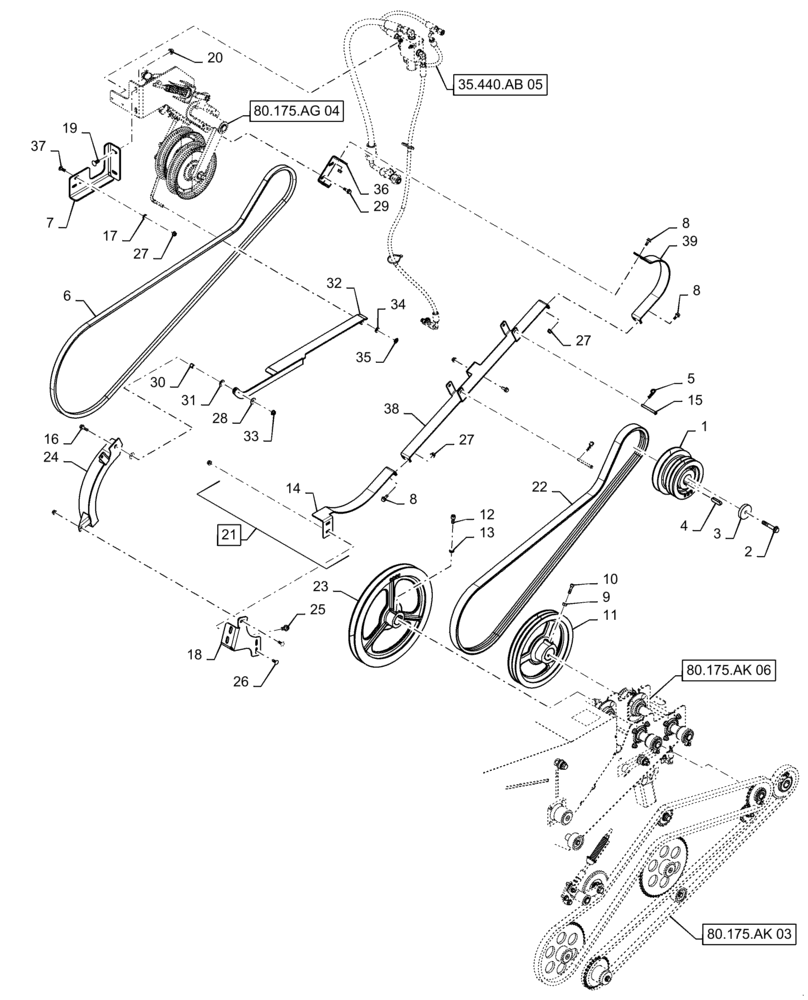

Схема запчастей Case IH 7230 - (80.175.AG[03]) - VAR - 425365 - DRIVE, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING
34
5
4
8
23
13
30
12
2
10
80.175.ag 04
24
21
28
36
38
29
19
37
25
9
26
8
27
3
18
1
33
32
27
16
17
14
20
31
7
8
27
11
35
80.175.ak 06
15
22
80.175.ak 03
6
39
35.440.ab 05

Артикул

Название

Примечание

Количество

1

84256377

PULLEY

Tensioner, 46.9mm IDx 190mm OD x 105.67mm Thk

1шт.

2

87698845

BOLT,M12 x 70, Cl 10.9

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

5

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

6

84345673

BELT

Drive, HC Clutching, 3180 Nominal Length

1шт.

7

84348178

BRACKET

Tensioner Mounting

1шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

9

43362

NUT,M8 x 1.25, Cl 10

2шт.

10

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

2шт.

11

87032102

PULLEY

Unloading Drive, 54.3mm ID x 317.5mm OD x 44.7mm Thk

1шт.

12

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

1шт.

13

84221258

THIN NUT,M10 x 1.5, Cl 5

1шт.

14

84348728

SUPPORT

Unloader Belt Guide

1шт.

15

439-1548

HEADED PIN,7.92mm OD x 76.2mm L

2шт.

16

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

17

131-440

PUSH-ON NUT

5/16" Retainer

3шт.

18

47612424

BRACKET

Mounting

1шт.

19

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

20

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

21

47764852

GUIDE

Unloader Belt, Rear, Assy, Incl 8, 14, 27, 38 - 39

1шт.

22

84345674

BELT

Drive, 2655mm Nominal Length

1шт.

23

84256359

PULLEY

Unloading Drive, 40.01mm ID x 431mm OD x 35.8mm Thk

1шт.

24

84486268

GUIDE

Assy Unloader Belt, Front

1шт.

25

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

26

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

4шт.

27

86507066

FLANGE NUT,M8 x 1.25, Cl 10

13шт.

28

86632582

WASHER,0.34" ID x 1" OD x 0.06" Thk

2шт.

29

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

30

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

31

87613181

WASHER,0.53" ID x 1" OD x 0.06" Thk

1шт.

32

47420724

SUPPORT

Assy, Unloader Belt

1шт.

33

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

34

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

35

100-3337

SNAP RING,E-Type, 0.3" OD

1шт.

36

47473590

RETAINER

Unloader Drive Belt

1шт.

37

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

3шт.

38

47737938

GUIDE

Unloader Belt, Rear

1шт.

39

84345572

BRACKET, SUPPORTING

Unloader Belt

1шт.

Выбрано товаров: 39
