Запчасти Case IH 7230 (10.400.AK[02]) - COOLING SYSTEM LINE, COOLANT EXPANSION RESERVOIR, 8230/9230 (10) - ENGINE

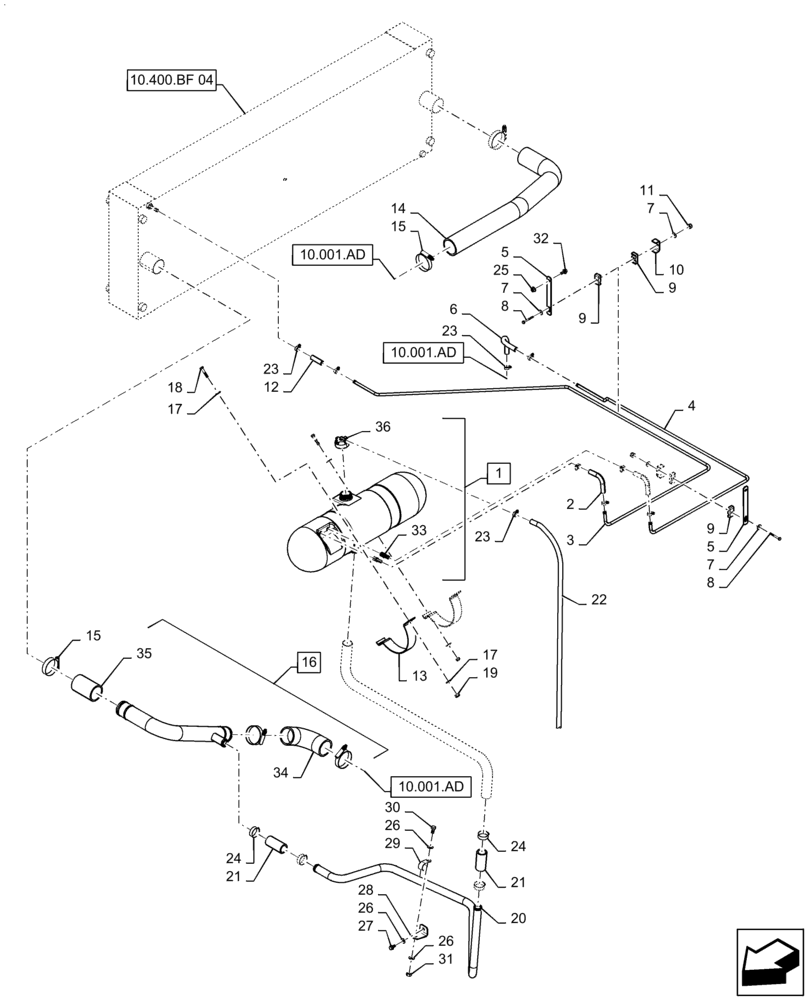

Схема запчастей Case IH 7230 - (10.400.AK[02]) - COOLING SYSTEM LINE, COOLANT EXPANSION RESERVOIR, 8230/9230 (10) - ENGINE
14
7
15
22
24
8
10.001.ad
10.001.ad
10
17
29
4
9
36
26
10.001.ad
26
5
33
7
25
12
20
24
11
17
21
10.400.bf 04
5
3
23
35
2
15
30
23
1
27
26
19
6
8
28
9
13
31
7
16
23
21
9
34
18
32

Артикул

Название

Примечание

Количество

1

87670349

RESERVOIR, COOLANT E

Incl 33, 36

1шт.

2

47548015

HOSE

Deaeration, Expansion Tank

2шт.

3

87665332

TUBE,9.52 mm OD

Deaeration, Engine

1шт.

4

84420734

AIR INTAKE TUBE

Deaeration, Engine

1шт.

5

84466525

BRACKET

Hose Support

2шт.

6

87576257

HOSE,9.50 mm ID x 250.00 mm

1шт.

7

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

9

430357

CLAMP

Hose, Deaeration to Engine, 42mm OAL x 20mm W

4шт.

10

431941

SUPPORT

Hose Clamp, 20mm W x 49mm OAL x 3.3mm Thk

2шт.

11

353308

NUT,M6 x 1.0, Cl 8

2шт.

12

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

1шт.

13

84442536

CLAMP

Deaeration Bottle Mount

2шт.

14

87667721

RADIATOR HOSE,60.00 mm ID x 726.30 mm, SAE J20R4

Upper

1шт.

15

86633352

HOSE CLAMP,57mm - 79mm

4шт.

16

87696886

TUBE,409.1, 208.4 mm L

Lower Radiator, Incl 34, 35

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

18

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

20

87665216

TUBE,28.6 mm OD x 924.9 mm L

1шт.

21

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

2шт.

22

87395212

TUBE

Deaeration Tank Overflow

1шт.

23

913888

HOSE CLAMP

9mm - 16mm ID x 8mm W

9шт.

24

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

27

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

28

87723274

BRACKET

Drain Tube Mount

1шт.

29

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

30

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

31

100016

NUT,M10 x 1.5, Cl 8

1шт.

32

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

33

87742820

FITTING,1/4" Barb x 3/8" Pipe

Barb, To Male Pipe

2шт.

34

86976412

HOSE,59.00 mm ID x 110.00 mm, SAE J20, 20R4 Class D1

90 Degree, Engine Inlet

1шт.

35

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

Straight, Radiator

1шт.

36

82022744

CAP,Female, Vented, Non-Locking

Expansion Tank

1шт.

Выбрано товаров: 36
