Запчасти Case IH 7230 (80.150.BG[05]) - VAR - 425367076, 425367086, 425369086, 425369096 - GRAIN BIN EXTENSION (80) - CROP STORAGE/UNLOADING

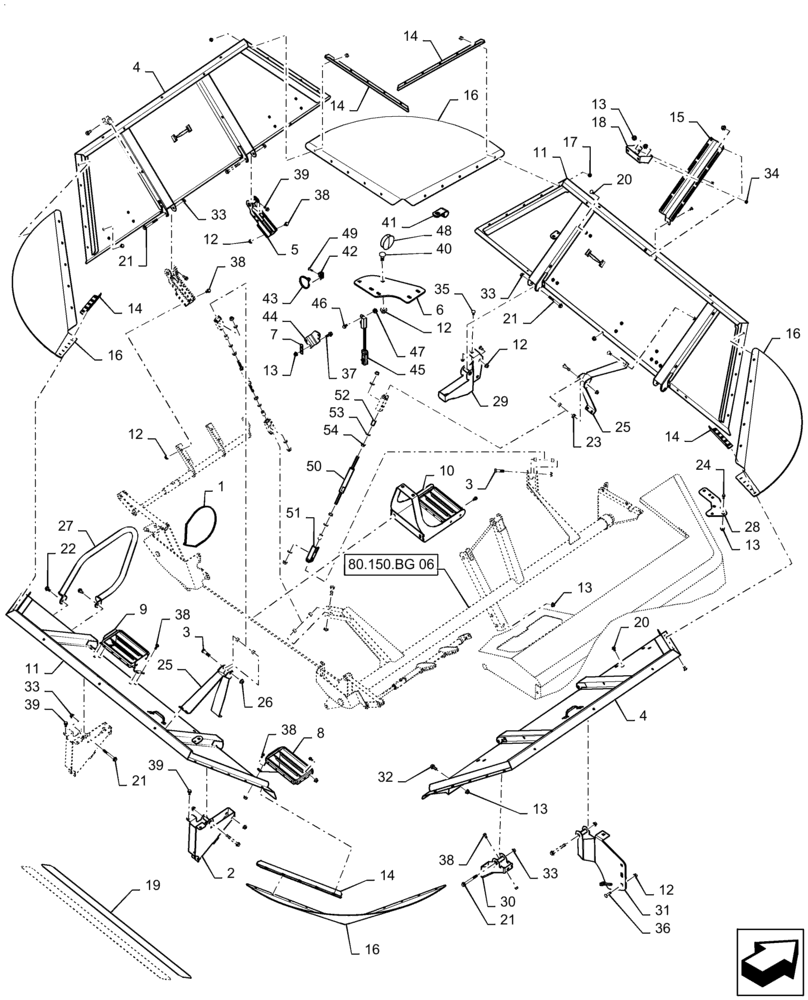

Схема запчастей Case IH 7230 - (80.150.BG[05]) - VAR - 425367076, 425367086, 425369086, 425369096 - GRAIN BIN EXTENSION (80) - CROP STORAGE/UNLOADING
14
38
33
11
4
42
20
29
13
21
13
33
11
1
14
16
14
17
4
13
44
16
25
13
12
27
3
19
7
21
20
39
39
12
16
5
14
36
40
37
38
23
3
12
33
34
14
10
53
32
21
12
31
52
54
30
50
15
47
46
16
43
45
26
21
80.150.bg 06
48
33
24
38
49
25
51
6
22
9
38
12
41
38
8
13
39
2
28
18
35

Артикул

Название

Примечание

Количество

1

801895

CABLE TIE,30.63"

Used For Transport Only

1шт.

2

84174215

HINGE

Extension, Rear

2шт.

3

84182839

SCREW,M10 x 1.5 x 66.70mm, Heat Treated Steel

4шт.

4

84359875

EXTENSION

LH/RH, - VAR - 425367076, 425369086

2шт.

4

84359876

EXTENSION

LH/RH, - VAR - 425367086, 425396096

2шт.

5

47446877

HINGE

Extension, LH

2шт.

6

84510384

PLATE

Corner, Front, LH

1шт.

7

47610840

SHIM

50mm L x 14mm W x 1.17mm Thk

1шт.

8

84393346

STEP

Grain Tank, Lower

1шт.

9

84393348

STEP

Grain Tank, Upper

1шт.

10

84395879

STEP

Grain Tank, Middle

1шт.

11

84399508

EXTENSION

Front/Rear, - VAR - 425367076, 425369086

2шт.

11

84399505

EXTENSION

Front/Rear, - VAR - 425367086, 425396096

2шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

26шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

26шт.

14

86975516

ANGLE

Securing Strip, - VAR - 425367076, 425369086

8шт.

14

86975514

ANGLE

Securing Strip, - VAR - 425367086, 425396096

8шт.

15

86975528

BRACKET

Grain Tank Level Sensor Mount, - VAR - 425367076, 425369086

1шт.

15

86975526

BRACKET

Grain Tank Level Sensor Mount, - VAR - 425367086, 425396096

1шт.

16

86975520

SHEET

Extension, Corner, - VAR - 425367076, 425369086

4шт.

16

86975734

SHEET

Extension, Corner, - VAR - 425367086, 425396096

4шт.

17

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

40шт.

18

86975897

BRACKET

Camera Mount

1шт.

19

86995792

PAD,125mm W x 1270mm L

Anti Skid

2шт.

20

87021006

BOLT,M10 x 26.4mm, Cl 10.9

22шт.

21

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

8шт.

22

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

23

87348842

SPACER,13.5mm ID x 19.18mm OD x 13.2mm L

8шт.

24

87030775

BOLT,M8 x 38.1mm, Cl 10.9

5шт.

25

87491039

BRACKET

Rear Extension Open Linkage

2шт.

26

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

4шт.

27

84510294

HANDLE

Grab, Rear

1шт.

28

87551365

PLATE

Corner, Front, RH

1шт.

29

87552212

HINGE

Hinge, Front Extension

2шт.

30

47446873

HINGE

Extension, RH, Rear

1шт.

31

47442127

HINGE

Extension, RH, Front

1шт.

32

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

13шт.

33

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

8шт.

34

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

5шт.

35

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

7шт.

36

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

7шт.

37

87698833

BOLT,M8 x 33.1mm, Cl 10.9

5шт.

38

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

33шт.

39

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

12шт.

40

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

2шт.

41

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

42

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

43

86566989

CABLE TIE,208mm L

4шт.

44

47573242

BRACKET

Extension Position Switch Mount

1шт.

45

87392235

SENSOR

Extension Position

1шт.

46

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

2шт.

47

14084111

LOCK NUT,M5 x .8, Flg

2шт.

48

86625130

PLUG,Dome, 1.250" hole, Nylon

1шт.

49

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

50

87471197

HALF-LINK

Door Link Rod

2шт.

51

87479912

COUPLING

Swivel, Link Rod

4шт.

52

87479913

BRONZE BUSHING,12.6mm ID x 17.9mm OD x 31mm L

12.6mm ID x 17.9mm OD x 31mm L

4шт.

53

195-83000

WASHER,0.52" ID x 0.88" OD x 0.06" Thk

13mm ID x 22.25mm OD x 1.62mm W

8шт.

54

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

Выбрано товаров: 59
