Запчасти Case IH 7230 (80.150.BG[03]) - VAR - 425367026, 425367036, 425369046, 425369056 - GRAIN BIN EXTENSION (80) - CROP STORAGE/UNLOADING

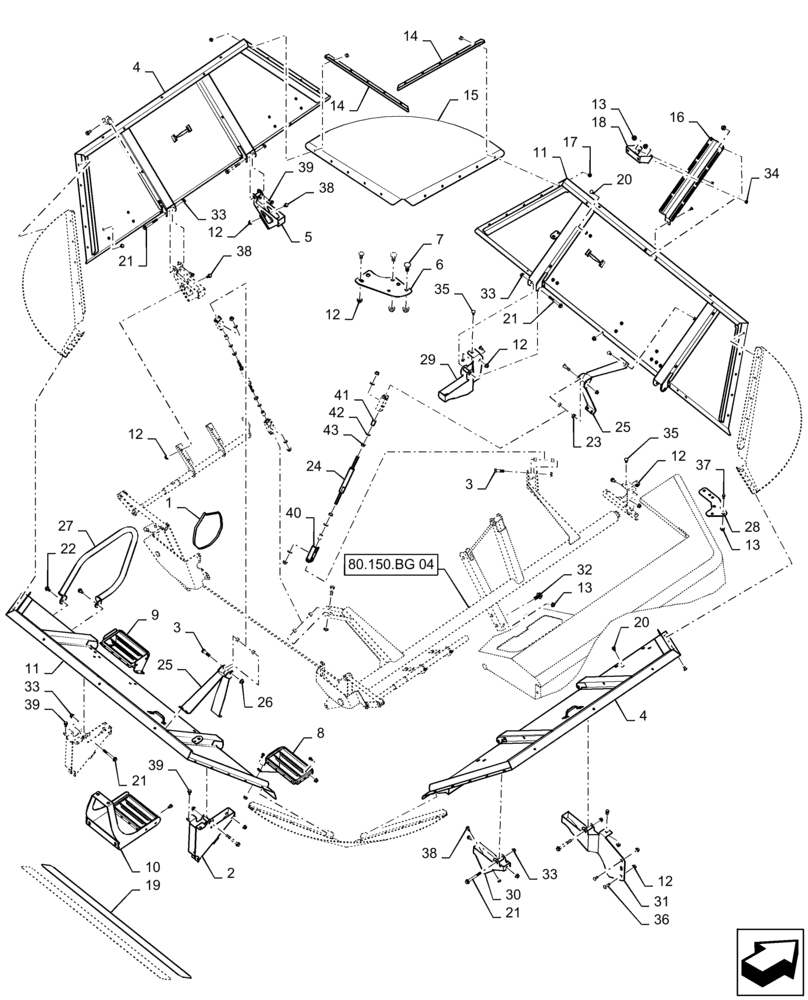

Схема запчастей Case IH 7230 - (80.150.BG[03]) - VAR - 425367026, 425367036, 425369046, 425369056 - GRAIN BIN EXTENSION (80) - CROP STORAGE/UNLOADING
42
21
35
38
11
24
23
13
19
37
27
7
4
33
38
12
28
34
20
33
21
9
40
36
12
14
41
15
20
39
21
33
8
5
39
3
13
32
33
31
38
26
18
17
3
2
22
43
21
11
1
6
25
13
16
4
39
80.150.bg 04
10
14
29
12
12
12
35
30
25
12

Артикул

Название

Примечание

Количество

1

801895

CABLE TIE,30.63"

Used For Transport Only

1шт.

2

84174215

HINGE

Extension, Rear

2шт.

3

84182839

SCREW,M10 x 1.5 x 66.70mm, Heat Treated Steel

4шт.

4

84359875

EXTENSION

LH/RH, - VAR - 425367026, 425369046

2шт.

4

84359876

EXTENSION

LH/RH, - VAR - 425367036, 425369056

2шт.

5

84385048

HINGE

Extension, LH

2шт.

6

84510384

PLATE

Corner, Front, LH

1шт.

7

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

2шт.

8

84393346

STEP

Grain Tank, Lower

1шт.

9

84393348

STEP

Grain Tank, Upper

1шт.

10

84395879

STEP

Grain Tank, Middle

1шт.

11

84399508

EXTENSION

Front/Rear, - VAR - 425367026, 425369046

2шт.

11

84399505

EXTENSION

Front/Rear, - VAR - 425367036, 425369056

2шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

27шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

22шт.

14

86975516

ANGLE

Securing Strip, - VAR - 425367026, 425369046

8шт.

14

86975514

ANGLE

Securing Strip, - VAR - 425367036, 425369056

8шт.

15

86975520

SHEET

Extension, Corner, - VAR - 425367026, 425369046

4шт.

15

86975734

SHEET

Extension, Corner, - VAR - 425367036, 425369056

4шт.

16

86975528

BRACKET

Grain Tank Level Sensor Mount, - VAR - 425367026, 425369046

1шт.

16

86975526

BRACKET

Grain Tank Level Sensor Mount, - VAR - 425367036, 425369056

1шт.

17

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

40шт.

18

86975897

BRACKET

Camera Mount

1шт.

19

86995792

PAD,125mm W x 1270mm L

Anti Skid

2шт.

20

87021006

BOLT,M10 x 26.4mm, Cl 10.9

22шт.

21

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

8шт.

22

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

23

87348842

SPACER,13.5mm ID x 19.18mm OD x 13.2mm L

8шт.

24

87471197

HALF-LINK

Door Link Rod

2шт.

25

87491039

BRACKET

Rear Extension Open Linkage

2шт.

26

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

4шт.

27

84510294

HANDLE

Grab, Rear

1шт.

28

87551365

PLATE

Corner, Front, RH

1шт.

29

87552212

HINGE

Hinge, Front Extension

2шт.

30

87552233

HINGE

Rear, RH

1шт.

31

87643079

HINGE

Front, RH

1шт.

32

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

13шт.

33

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

8шт.

34

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

5шт.

35

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

7шт.

36

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

7шт.

37

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

38

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

34шт.

39

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

12шт.

40

87479912

COUPLING

Swivel, Link Rod

4шт.

41

87479913

BRONZE BUSHING,12.6mm ID x 17.9mm OD x 31mm L

12.6mm ID x 17.9mm OD x 31mm L

4шт.

42

195-83000

WASHER,0.52" ID x 0.88" OD x 0.06" Thk

13mm ID x 22.25mm OD x 1.62mm W

8шт.

43

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

Выбрано товаров: 48
