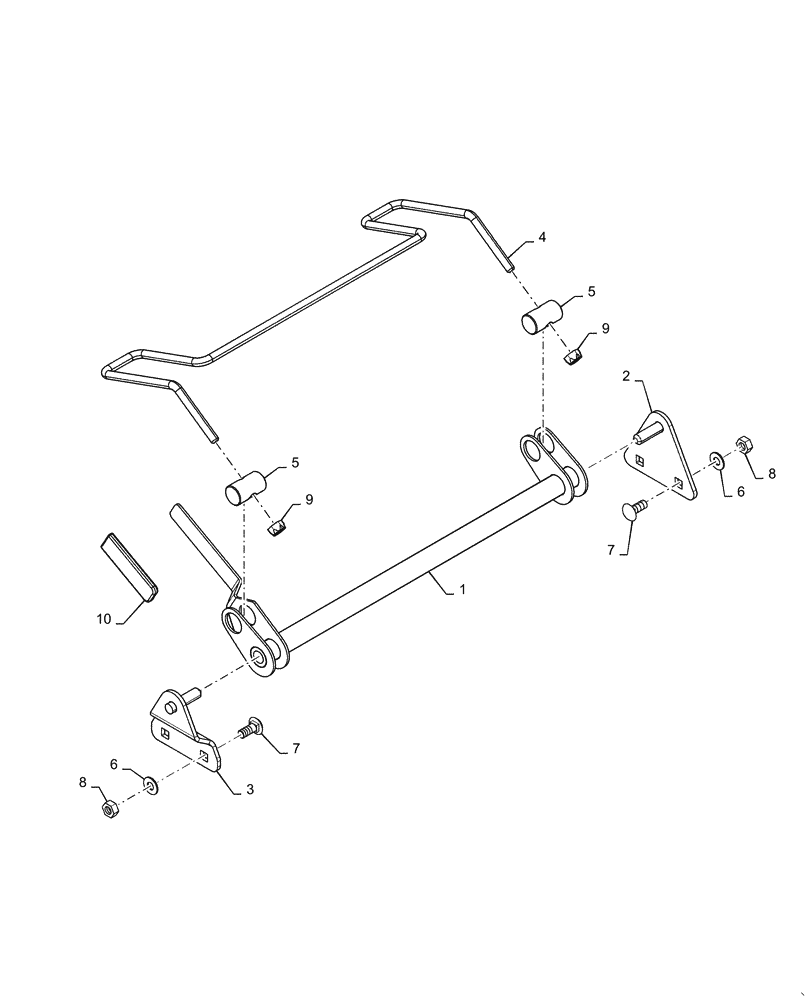

Запчасти Case IH 7230 (80.150.BG[02]) - VAR - 425371006, 425371016, 425371056, 425371066, 722513196, 722513276, 722763056, 722763086 - LATCH, COVER ASSY (80) - CROP STORAGE/UNLOADING

1

87552205

LATCH

Grain Bin Covers

1шт.

2

87552207

BRACKET

LH, Hinge

1шт.

3

87552209

BRACKET

RH, Hinge

1шт.

4

87105947

ROD

Hold Down, 494mm OAL

1шт.

5

87105948

SUPPORT,25.4mm OD x 44mm L

Rod Mount

2шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

7

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

8

100016

NUT,M10 x 1.5, Cl 8

4шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

10

87031684

HANDLE GRIP

25mmID x 29mm OD x 90mm OAL x 7mm Thk

1шт.
