Запчасти Case IH 7230 (10.310.AE[02]) - TUBE, INTERCOOLER 8230/9230 ONLY (10) - ENGINE

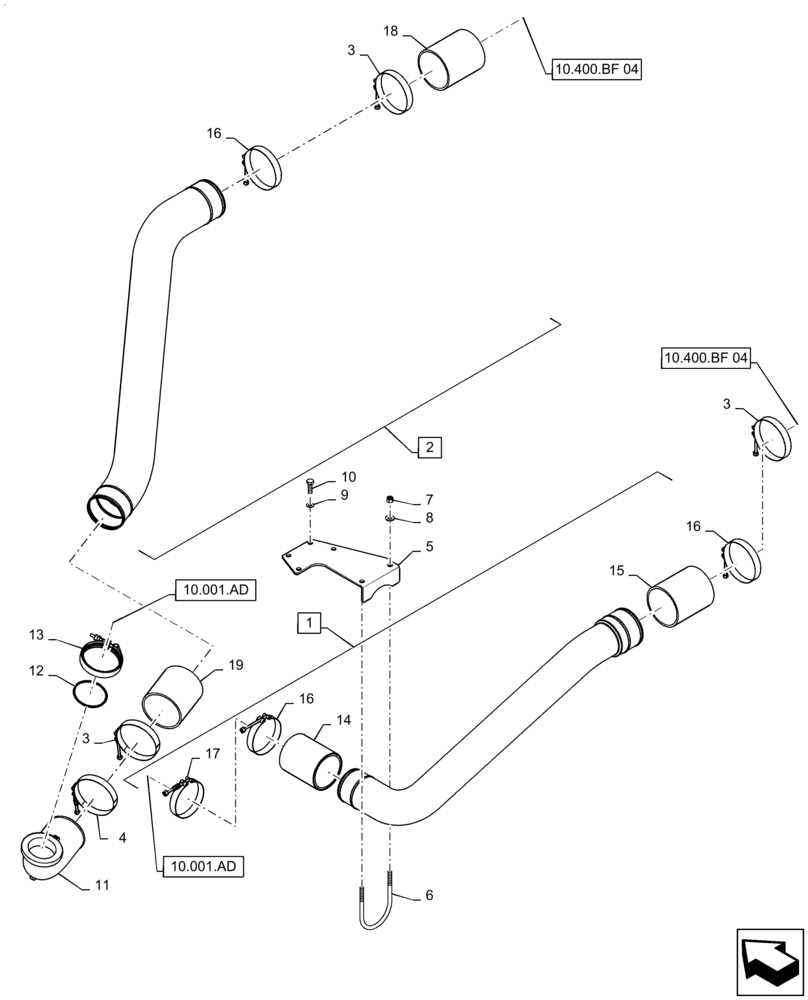

Схема запчастей Case IH 7230 - (10.310.AE[02]) - TUBE, INTERCOOLER 8230/9230 ONLY (10) - ENGINE
11
6
1
3
10.001.ad
19
10
3
13
10.400.bf 04
15
18
2
8
12
16
3
17
7
16
16
10.001.ad
4
10.400.bf 04
9
14
5

Артикул

Название

Примечание

Количество

1

87665184

TUBE,589, 355.8 mm L

Intercooler To Intake Manifold, Incl 14 - 17

1шт.

2

84179852

RIGID TUBE

Turbo To Intercooler, Incl 2, 16, 18, 19

1шт.

3

87420676

HOSE CLAMP,108mm - 115.8mm

T Bolt

3шт.

4

86976661

HOSE CLAMP,95.25mm - 104mm

Spring

1шт.

5

87109471

BRACKET

Tube Support

1шт.

6

87028029

U-BOLT

3/8-16 X 3.56" X 5.5"

1шт.

7

9637692

NUT,3/8"-16, Gr B

2шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

11

87699836

ELBOW

Adapter to Turbo

1шт.

12

87736454

O-RING

Seal

1шт.

13

84076899

CLAMP

Air Sealing

1шт.

14

87106404

HOSE,88.90mm ID x 110mm

1шт.

15

87402762

HOSE

4" EPDM

1шт.

16

87420676

HOSE CLAMP,108mm - 115.8mm

T- Clamp

3шт.

17

86976661

HOSE CLAMP,95.25mm - 104mm

Spring

1шт.

18

87402761

HOSE

4" EPDM

1шт.

19

87681273

TUBE

4" EPDM

1шт.

Выбрано товаров: 19
