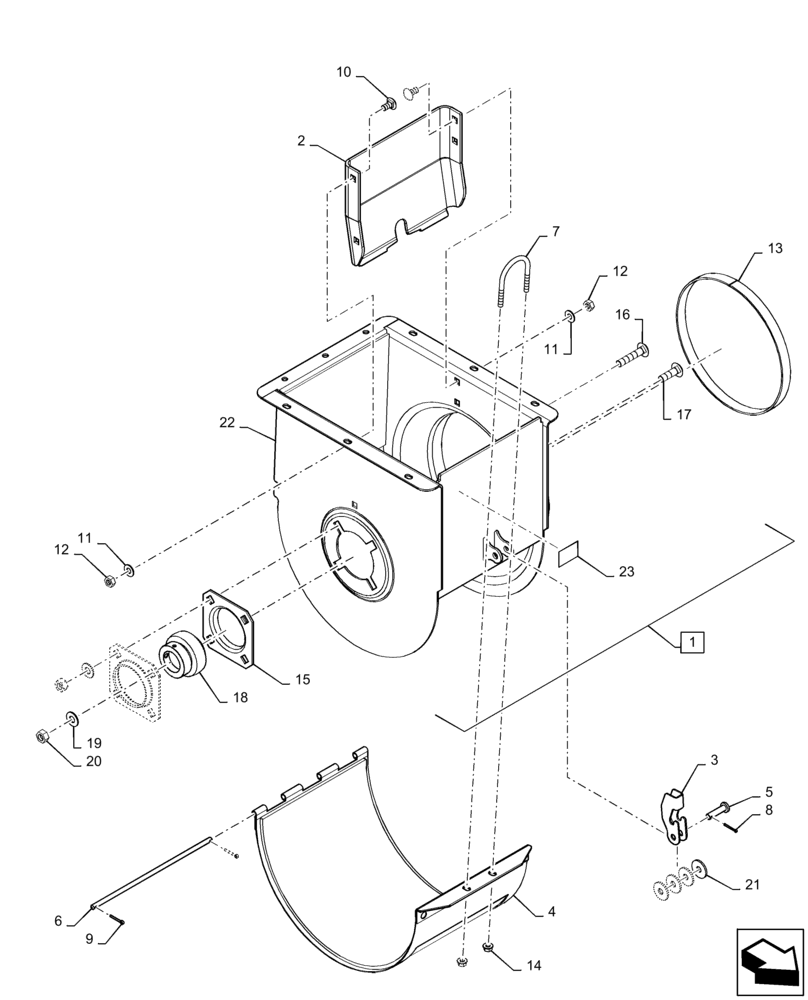

Запчасти Case IH 7230 (80.101.AR[02]) - BOOT, CLEAN GRAIN ELEVATOR, BSN YDG222090 (80) - CROP STORAGE/UNLOADING

1

84194821

BOOT

Clean Grain Elevator, Incl 22, 23

1шт.

2

87282158

PLATE

Grain Flow Divider

1шт.

3

86581559

HANDLE

Door Closure

1шт.

4

87282183

DOOR

Clean Grain Elevator Boot

1шт.

5

9507095

CLEVIS PIN,10mm OD x 40mm L

1шт.

6

86998877

PIN

1шт.

7

84989315

U-BOLT,M8 x 1.25 x 26mm Threaded x 63.5mm W x 90.4mm OAL

1шт.

8

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

9

80755

COTTER PIN,1/8" OD x 1" L

2шт.

10

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

100016

NUT,M10 x 1.5, Cl 8

4шт.

13

87302034

19mm Wide x 3mm Thick, Bulk Roll, Cut To Length 820mm

FOAM

1шт.

14

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

15

1307583C1

FLANGED BEARING

80mm, 4 Bolt

2шт.

16

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

17

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

18

87605593

BEARING ASSY,40mm ID x 80mm OD x 22mm W

4шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

20

9706685

NUT,M12 x 1.75, Cl 8

4шт.

21

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

4шт.

22

84172629

BOOT

Clean Grain Elevator

1шт.

23

86626958

WARNING DECAL

Pinch Point, Clean Grain Elevator

1шт.
