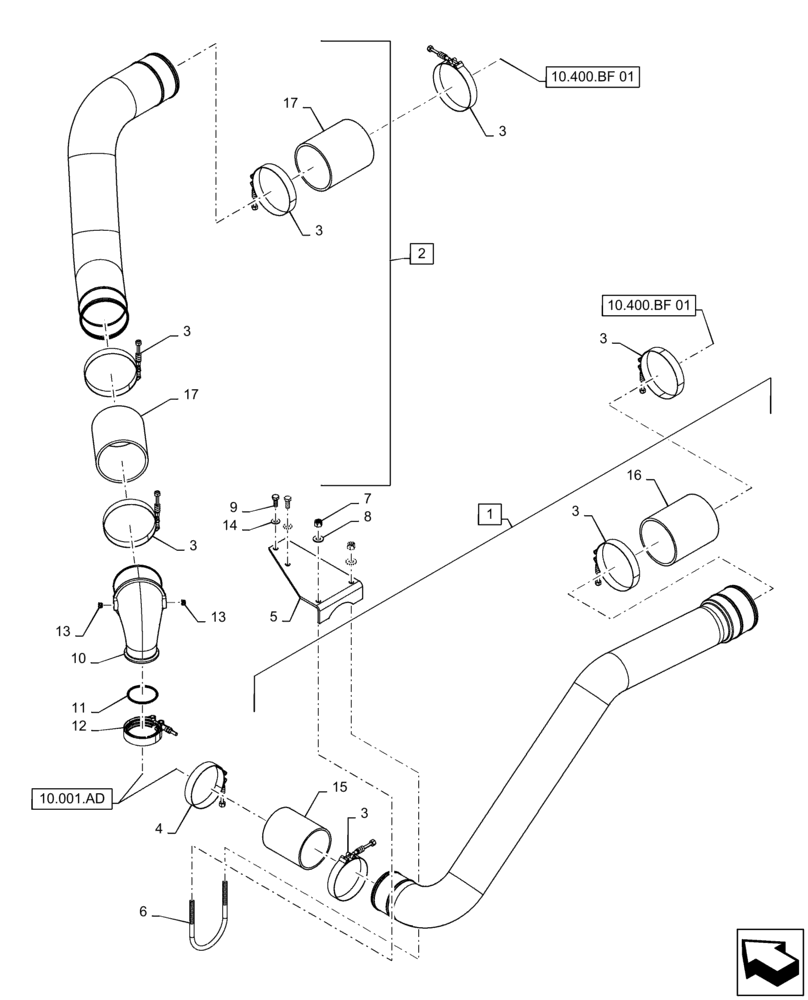

Запчасти Case IH 7230 (10.310.AE[01]) - TUBE, INTERCOOLER 7230 ONLY (10) - ENGINE

1

87527075

AIR INTAKE TUBE,949.8, 415.5 mm L

Turbo To Intercooler, Incl 3, 15, 16

1шт.

2

87527073

AIR INTAKE TUBE

Intercooler To Intake Manifold, Incl 3, 17

1шт.

3

87420676

HOSE CLAMP,108mm - 115.8mm

T Bolt

7шт.

4

86976661

HOSE CLAMP,95.25mm - 104mm

Spring

1шт.

5

87572334

BRACKET

Tube Support

1шт.

6

87028029

U-BOLT

3/8"-16 x 3.56" x 5.5"

1шт.

7

9637692

NUT,3/8"-16, Gr B

2шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

10

86998476

ELBOW

Tube To Turbo

1шт.

11

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

12

J069053

CLAMP,66.54mm ID

Turbo Outlet V Band

1шт.

13

86998472

PLUG

1/8-27 Hex

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

15

87106404

HOSE,88.90mm ID x 110mm

Tube To Turbo

1шт.

16

87402762

HOSE

Tube To Intercooler, 101.6mm ID x 127mm

1шт.

17

87402761

HOSE

Tube To Turbo/Tube To Intercooler, 101.6mm x 127mm

2шт.
