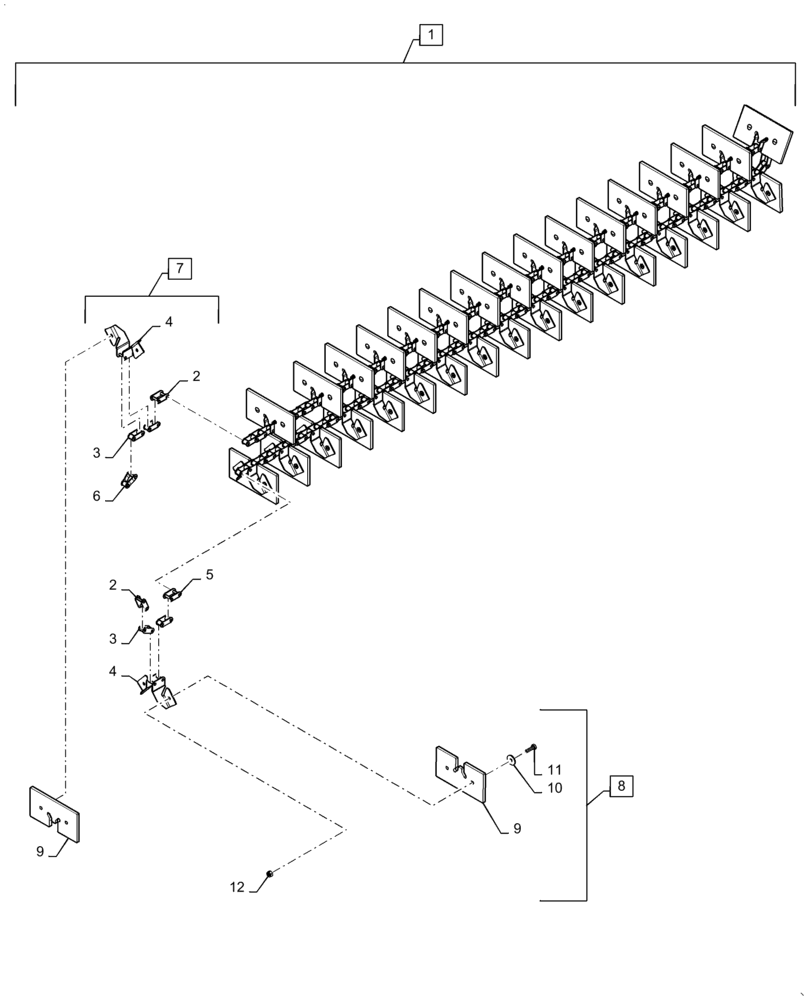

Запчасти Case IH 7230 (80.101.AP[06]) - CHAIN, CLEAN GRAIN ELEVATOR, BSN YDG222004 (80) - CROP STORAGE/UNLOADING

1

47596049

ELEVATOR CHAIN

Clean Grain Elevator, Incl 2 - 12

1шт.

2

87282356

CONNECTING LINK

Services 1

5шт.

3

86995346

LINK,Chain

Riveted Link, 550HD

72шт.

4

47428644

LINK

Paddle Mount

35шт.

5

86995348

CHAIN

Riveted Link, 550HD

32шт.

6

87717729

LINK,41.4mm Pitch

1шт.

7

47595491

ELEVATOR CHAIN

Incl 2 - 6

1шт.

8

47596052

CHAIN LINK

Paddle, Incl 9 - 12

1шт.

9

47428661

PADDLE

Clean Grain Elevator

35шт.

10

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

2шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
