Запчасти Case IH 7230 (80.101.AP[05]) - VAR - 425241, 425363, 722481 - CLEAN GRAIN ELEVATOR, HOUSING, BSN YDG222004 (80) - CROP STORAGE/UNLOADING

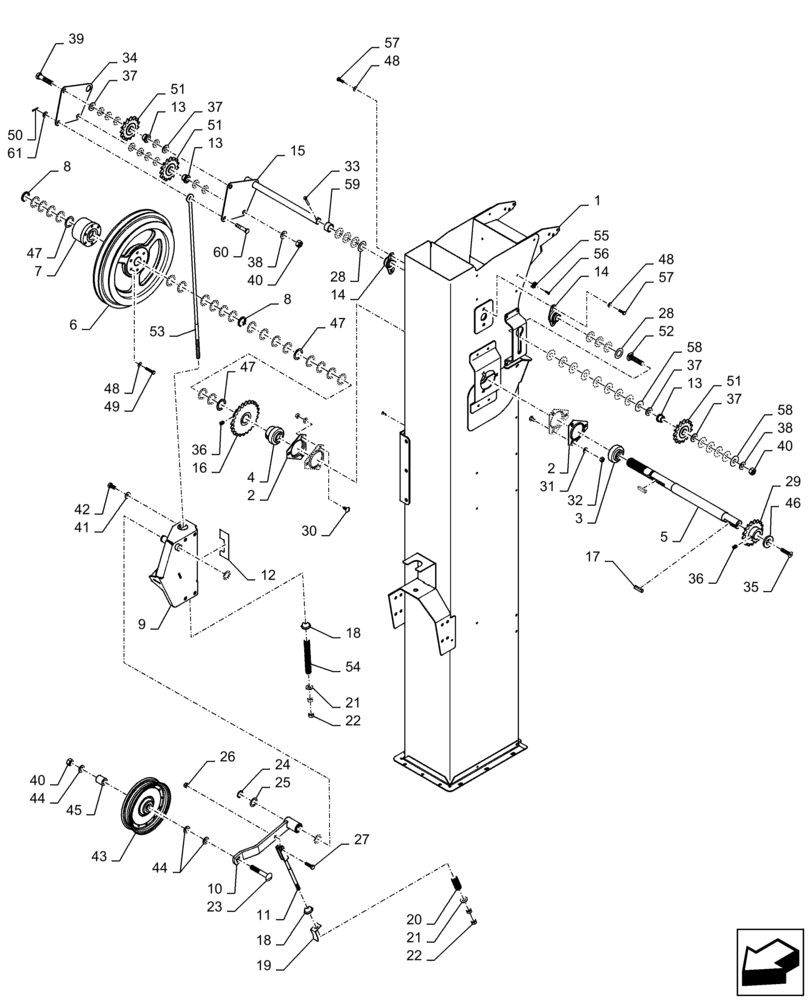

Схема запчастей Case IH 7230 - (80.101.AP[05]) - VAR - 425241, 425363, 722481 - CLEAN GRAIN ELEVATOR, HOUSING, BSN YDG222004 (80) - CROP STORAGE/UNLOADING
59
44
31
47
22
38
37
50
12
19
37
46
40
41
58
38
15
7
4
52
2
51
60
51
34
55
16
43
47
32
23
13
44
18
6
49
20
53
33
51
21
40
21
40
57
48
17
13
45
5
25
8
48
18
28
22
14
10
14
39
36
30
57
8
3
26
9
1
47
11
2
61
35
42
36
37
27
37
54
28
24
56
48
58
29
13

Артикул

Название

Примечание

Количество

1

47592275

ELEVATOR

Clean Grain Elevator W/ Decal, VAR - 722481, 425241

1шт.

1

84578519

ELEVATOR

Clean Grain Elevator W/ Decal, VAR - 425363

1шт.

2

84414985

FLANGED BEARING

Triangle Shape

4шт.

3

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

4

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

5

87283680

SHAFT

Idler

1шт.

6

84128631

PULLEY ASSY.

Single Speed, VAR - 722481

1шт.

6

86976480

PULLEY

Two Speed, VAR - 425241, 425363

1шт.

7

87527860

CLUTCH ASSEMBLY

Speed Slip

1шт.

8

851000

SNAP RING,1.276" ID x 0.172" Thk

2шт.

9

87108857

MOUNTING PLATE

Idler Pulley

1шт.

10

84155077

ARM

Idler

1шт.

11

86999557

ADJUSTMENT ROD

Idler Adjustment

1шт.

12

87719433

DECAL

Adjustment

1шт.

13

84334697

BUSHING,17mm ID x 32mm OD x 18.8mm L

Upper Idler

3шт.

14

682452

FLANGED BEARING,25.46mm ID

Spherical Retaining

2шт.

15

87550645

SUPPORT ASSY.

Double Idler

1шт.

16

87283695

SPROCKET

23 Tooth Drive

1шт.

17

87283679

KEY,9.978mm W x 41.5mm OAL x 7.955mm Thk

2шт.

18

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

Poly

2шт.

19

84073601

INDICATOR

Tension

1шт.

20

681902

SPRING

Compression

1шт.

21

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

22

9706685

NUT,M12 x 1.75, Cl 8

4шт.

23

322362

CARRIAGE BOLT,M16 x 100mm, Cl 8.8

1шт.

24

370002

CIRCLIP,M25, External

1шт.

25

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

2шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

27

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

28

86624167

WASHER,25.81mm ID x 44.45mm OD x 0.91mm Thk

1шт.

29

87731456

SPROCKET

17 Tooth

1шт.

30

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

6шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

32

100016

NUT,M10 x 1.5, Cl 8

6шт.

33

9515820

COTTER PIN,M10.5 x 24mm OD x 3mm Thk

1шт.

34

87550634

PLATE ASSY.

Side Adjustment

1шт.

35

86553833

SCREW,M12 x 1.75 x 50mm, 10.9

1шт.

36

380530

SET SCREW,Hex, M8 x 10mm

2шт.

37

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

14шт.

38

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

3шт.

39

120092

BOLT,M16 x 70mm, Cl 8.8

2шт.

40

100020

NUT,M16 x 2.0, Cl 8

4шт.

41

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

42

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

43

86588003

IDLER,51.6mm W x 228.6mm OD

Wheel

1шт.

44

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

3шт.

45

86975913

SPACER,17.46mm ID x 30.16mm OD x 33mm L

17.46mm ID x 30.16mm OD x 33mm W

1шт.

46

87284462

THRUST WASHER

13.5mm ID x 50mm OD x 6.35mm W

1шт.

47

87280749

WASHER,35.05mm ID x 47.7mm OD x 2.8mm Thk

35.306mm ID x 47.70mm OD x 2.08mm W

23шт.

48

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

49

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

6шт.

50

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

51

87283101

SPROCKET,15T

15 Tooth Driven

3шт.

52

120047

CARRIAGE BOLT,M16 x 70mm, Cl 8.8

1шт.

53

87108864

EYEBOLT

M12

1шт.

54

87719434

COIL SPRING

Compression

1шт.

55

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

56

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

57

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

58

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

14шт.

59

87036419

SPACER,26.64mm ID x 33.4mm OD x 19.05mm L

1шт.

60

84018348

CLEVIS PIN,M12 x 60mm OAL

1шт.

61

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

Выбрано товаров: 63
