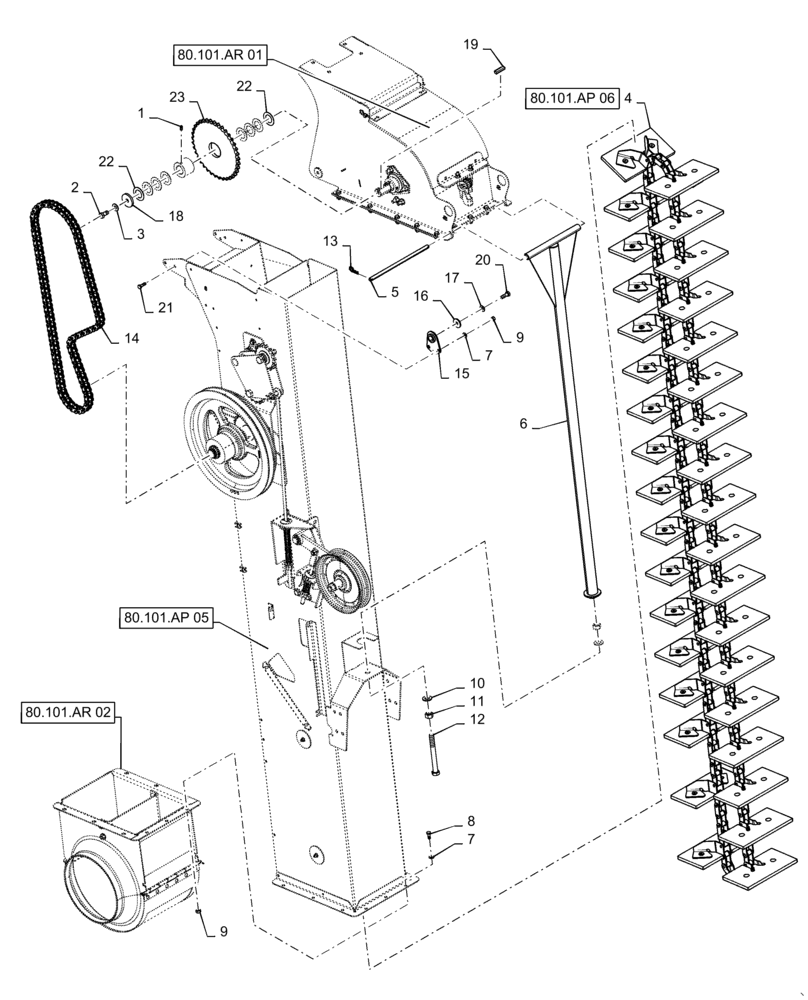

Запчасти Case IH 7230 (80.101.AP[04]) - VAR - 425363 - CLEAN GRAIN ELEVATOR, EXTENDED LIFE, 2-SPEED, BSN YDG222004 (80) - CROP STORAGE/UNLOADING

1

380530

SET SCREW,Hex, M8 x 10mm

1шт.

2

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

4

47596049

ELEVATOR CHAIN

Clean Grain

1шт.

5

84214452

GROOVED PIN

Tapered, 292mm OAL

1шт.

6

87284481

SUPPORT

Elevator Head

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

9

9706690

NUT,M8 x 1.25, Cl 8

13шт.

10

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

11

100020

NUT,M16 x 2.0, Cl 8

2шт.

12

359211

BOLT,M16 x 2.0 x 150mm, Cl 8.8

1шт.

13

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

14

87470737

CHAIN,RC60, 104 Links x 19.05mm = 1981.08mm

1шт.

15

87678426

PIVOT ASSY.

Elevator Support

2шт.

16

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

18

87023036

WASHER,0.53" ID x 2" OD x 0.25" Thk

1шт.

19

87283679

KEY,9.978mm W x 41.5mm OAL x 7.955mm Thk

1шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

22

87584813

WASHER,30.5mm ID x 51mm OD x 1.17mm Thk

8шт.

23

87748377

SPROCKET ASSY.

Elevator Head, 37 Tooth, Driven

1шт.
