Запчасти Case IH 7230 (80.101.AP[02]) - VAR - 722481 - CLEAN GRAIN ELEVATOR, SINGLE SPEED, BSN YDG222004 (80) - CROP STORAGE/UNLOADING

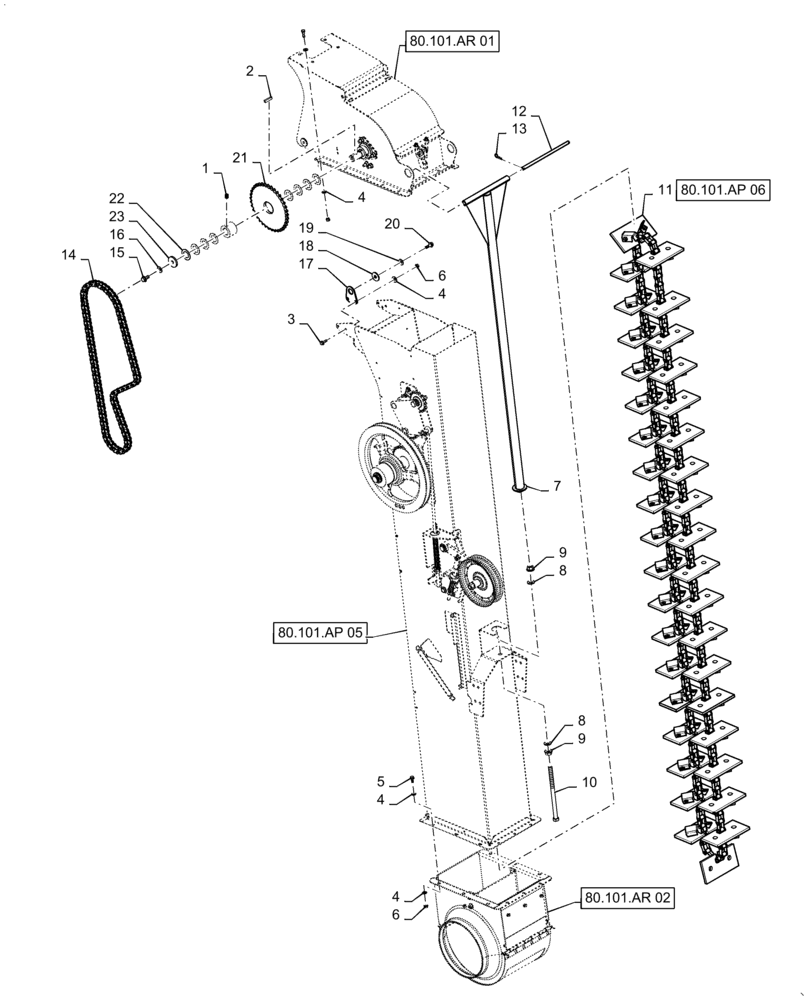

Схема запчастей Case IH 7230 - (80.101.AP[02]) - VAR - 722481 - CLEAN GRAIN ELEVATOR, SINGLE SPEED, BSN YDG222004 (80) - CROP STORAGE/UNLOADING
9
4
2
80.101.ar 01
7
16
19
18
15
9
1
5
10
23
80.101.ar 02
21
4
14
80.101.ap 05
12
6
4
20
13
8
17
3
4
8
80.101.ap 06
6
11
22

Артикул

Название

Примечание

Количество

1

380530

SET SCREW,Hex, M8 x 10mm

1шт.

2

87283679

KEY,9.978mm W x 41.5mm OAL x 7.955mm Thk

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

6

9706690

NUT,M8 x 1.25, Cl 8

13шт.

7

87284481

SUPPORT

Elevator Head

1шт.

8

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

9

100020

NUT,M16 x 2.0, Cl 8

2шт.

10

359211

BOLT,M16 x 2.0 x 150mm, Cl 8.8

1шт.

11

47596049

ELEVATOR CHAIN

Clean Grain Elevator

1шт.

12

84214452

GROOVED PIN

Tapered, 292mm OAL

1шт.

13

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

14

87470737

CHAIN,RC60, 104 Links x 19.05mm = 1981.08mm

1шт.

15

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

17

87678426

PIVOT ASSY.

Elevator Head Support

2шт.

18

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

21

87748377

SPROCKET ASSY.

Elevator Head, 37 Tooth, Driven

1шт.

22

87584813

WASHER,30.5mm ID x 51mm OD x 1.17mm Thk

8шт.

23

87023036

WASHER,0.53" ID x 2" OD x 0.25" Thk

1шт.

Выбрано товаров: 23
