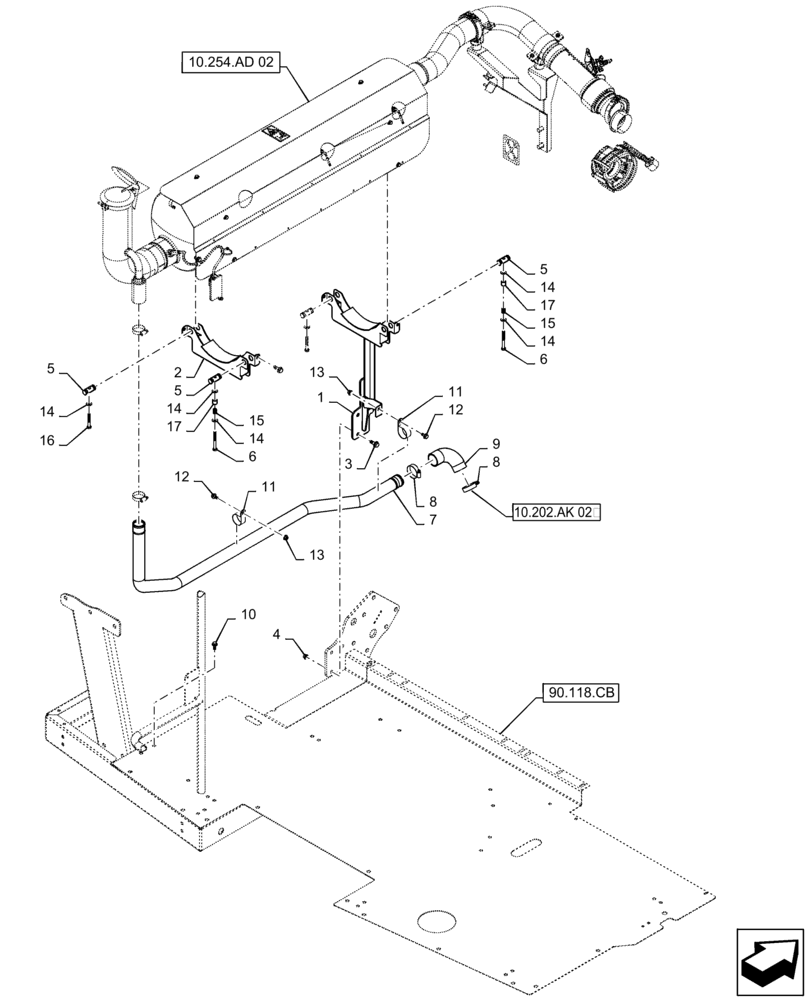

Запчасти Case IH 7230 (10.254.AD[03]) - EXHAUST/MUFFLER 7230 T4 (10) - ENGINE

1

84219383

SUPPORT

Muffler

1шт.

2

84220759

SUPPORT

Muffler

1шт.

3

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

3шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

3шт.

5

84123471

PIN,22mm OD x 58mm OAL, 2 Grooves

4шт.

6

538885

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

2шт.

7

84282882

RIGID TUBE

Scavenge

1шт.

8

86625019

HOSE CLAMP,44mm - 67mm

2шт.

9

87674853

ELBOW

Exhaust Scavenge

1шт.

10

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

11

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

12

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

14

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

6шт.

15

11104

SPRING

22.2mm Free Length

2шт.

16

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

2шт.

17

84349044

EXHAUST SYSTEM PIPE

15.8mm ID x 19.1mm OD x 17.4mm OAL

2шт.
