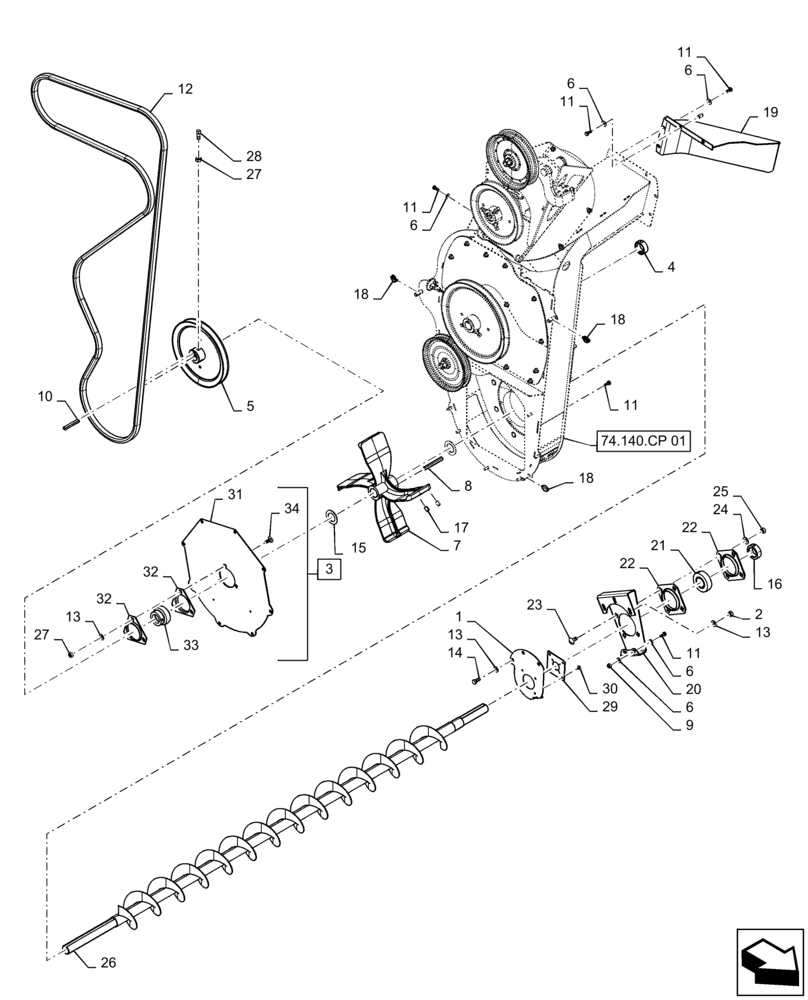

Запчасти Case IH 7230 (74.140.CN) - VAR - 425198, 425199, 425513 - AUGER, DRIVE, TAILINGS DELIVERY (74) - CLEANING

1

87574415

COVER

Shaft, 60mm ID

1шт.

2

86500689

NUT,M10 x 1.5, Cl 10

3шт.

3

87108003

PLATE

Bearing, Incl 13, 27, 31 - 34

1шт.

4

86997053

COLLAR

Support

1шт.

5

87282789

PULLEY,299.9mm OD

Lower Impeller, 304.78mm OD x 35.025mm ID

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

31шт.

7

87542137

BLOWER

Standard - VAR - 425198

1шт.

7

87549450

BLOWER

Extended Wear - VAR - 425199, 425513

1шт.

8

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

14шт.

10

86996914

KEY

74.2mm OAL x 10mm W x 8mm H

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

17шт.

12

87283139

V-BELT,4622.8mm Nominal Length

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

15

87109160

SHIM,35.5mm ID x 58mm OD x 2.18mm Thk

1шт.

16

52444

COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk

38mm ID x 60.325mm OD x 18.3mm W

1шт.

17

84814918

SET SCREW,M8 x 12mm, Cl 8.8

2шт.

18

87109290

LOCK PIN,25.4mm OD x 30mm L

1 - 1/4" OAL x 3/16" H

3шт.

19

87339975

DEFLECTOR

Standard - VAR - 425198

1шт.

19

87735231

DEFLECTOR

Extended Wear - VAR - 425199, 425513

1шт.

20

87542571

SUPPORT

Bearing Plate, 91.9mm ID

1шт.

21

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

1шт.

22

86974037

FLANGE

Bearing Support, 80mm ID

2шт.

23

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

25

337475

NUT,M12, Cl 10

4шт.

26

84402650

AUGER

Standard - VAR - 425198

1шт.

26

84402652

AUGER

Extended Wear - VAR - 425199, 425513

1шт.

27

100016

NUT,M10 x 1.5, Cl 8

3шт.

28

393599

SET SCREW,M10 x 25mm, Cl 12.9

3шт.

29

87528798

SEAL

35mm ID

1шт.

30

9512968

RIVET,Pop, 4.8mm OD x 11.2mm L

15.9mm Head x 4.8mm OD

4шт.

31

47666884

DOOR

Outside, Lower Impeller

1шт.

32

84414985

FLANGED BEARING

72mm ID

2шт.

33

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

34

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.
