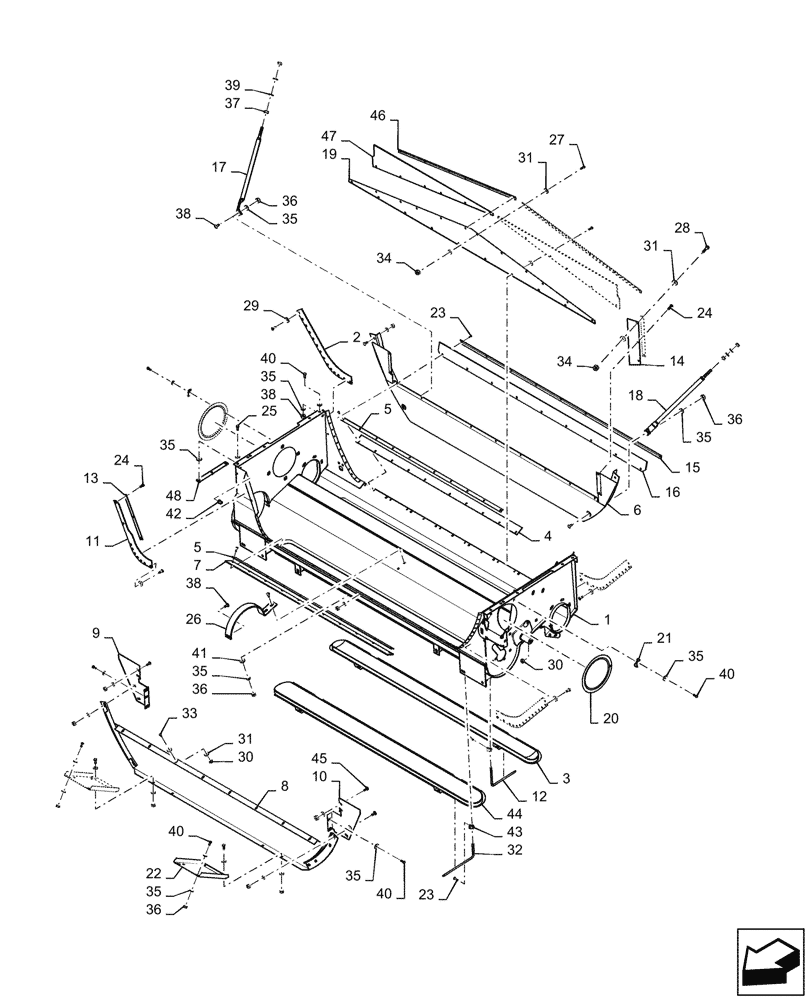

Запчасти Case IH 7230 (74.125.AL[04]) - HOUSING, CLEAN GRAIN ELEVATOR, LOWER, SELF-LEVELING, STANDARD, ASN YDG222004 (74) - CLEANING

1

47455502

HOUSING

Lower Augers

1шт.

2

87282881

SEAL PROTECTION

Side Housing, 50mm W x 333mm OAL x 4mm Thk

3шт.

3

84078027

COVER

Tailings Auger Trough, Standard

1шт.

3

84429238

COVER

Tailings Auger Trough, Perforated - VAR - 712557

1шт.

4

451792

SEAL PROTECTION

Rear Housing, 50mm W x 1249mm OAL x 4mm Thk

1шт.

5

84320089

STRIP

Seal Retaining, 20mm W x 1255mm OAL x 1.65mm Thk

2шт.

6

84320102

PLATE

Rear Housing

1шт.

7

451794

SEAL PROTECTION,50mm W x 1275mm OAL x 4mm Thk

Front Housing

1шт.

8

84320100

PLATE

Front Housing

1шт.

9

87370003

PLATE

Front Support, RH

1шт.

10

87370005

PLATE

Front Support, LH

1шт.

11

87282880

SEAL

Side Housing, Front, 50mm W x 415.9mm OAL x 4mm Thk

1шт.

12

9819720

PIN,7.94mm OD

90°, 135mm W x 191mm OAL

2шт.

13

84320082

SLAT

Front, Seal Securing, 20mm W x 280mm OAL

3шт.

14

922272

SEAL PROTECTION

Rear Housing, 70mm W x 322mm OAL x 3mm Thk

2шт.

15

84320105

STRIP

Rear Housing, 20mm W x 1580mm OAL x 1.65mm Thk

1шт.

16

84818311

SEAL PROTECTION

Rear Housing

1шт.

17

444439

SUPPORT

Tube, RH

1шт.

18

444438

SUPPORT

Tube, LH

1шт.

19

47413850

PLATE

Upper Housing Seal, 1934mm OAL x 1.5mm Thk

1шт.

20

84320087

DOOR

Rear Auger

2шт.

21

425093

CLAMP

Door, 20mm W x 45mm OAL

6шт.

22

87658114

SUPPORT

Front Housing

2шт.

23

445394

RIVET,Pop, 3/16" x 1/2" OAL

54шт.

24

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

36шт.

25

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

26

84072271

SUPPORT

Auger Cover

1шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

10шт.

28

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

29

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

48шт.

30

9706755

NUT,M6, Cl 8

16шт.

31

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

56шт.

32

9819719

PIN,7.94mm OD

90°, 95mm W x 425mm OAL

2шт.

33

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

16шт.

34

353308

NUT,M6 x 1.0, Cl 8

12шт.

35

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

62шт.

36

9706690

NUT,M8 x 1.25, Cl 8

30шт.

37

9706685

NUT,M12 x 1.75, Cl 8

4шт.

38

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

11шт.

39

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

40

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

25шт.

41

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

42

86976968

INSERT,Rivnut, M10 x 1.5 x 19mm OD

2шт.

43

323307

CLAMP

Spring Clip, 20mm OD x 25mm OAL

4шт.

44

87693856

COVER

Clean Grain Auger Trough, Standard

1шт.

44

84429240

COVER

Clean Grain Auger Trough, Perforated - VAR 712557

1шт.

45

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

46

47413862

PLATE

Mounting, 20mm W x 962mm OAL x 1.63mm Thk

2шт.

47

47393265

SEAL PROTECTION

Rear Housing

2шт.

48

47575170

PLATE

Securing, 25mm W x 230mm OAL x 3.25mm Thk

1шт.
