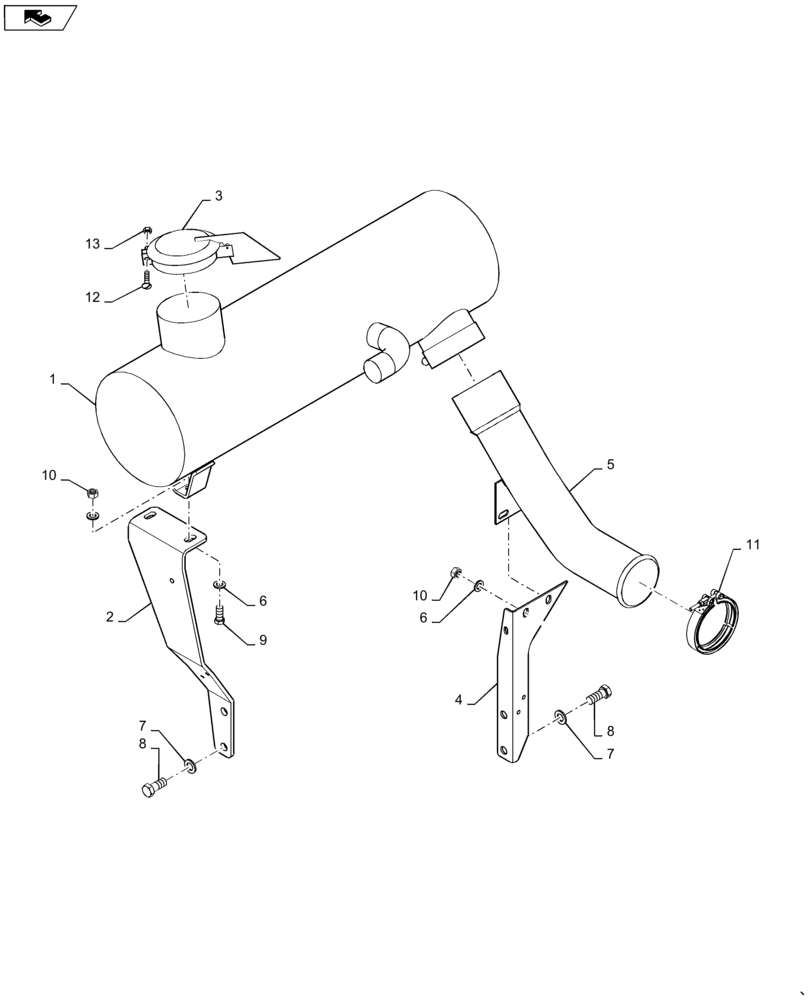

Запчасти Case IH 7230 (10.254.AD[01]) - MUFFLER, EXHAUST/MUFFLER 7230 T2 (10) - ENGINE

1

87711333

MUFFLER

Tier 2

1шт.

2

87283490

SUPPORT

Muffler

1шт.

3

86997809

COVER

Rain Cap

1шт.

4

87283492

SUPPORT

Muffler

1шт.

5

87645579

EXHAUST SYSTEM PIPE

Turbo To Muffler

1шт.

6

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

7

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

8

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

9

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

10

9706685

NUT,M12 x 1.75, Cl 8

4шт.

11

87487061

CLAMP,116.9mm - 118.2mm

Pipe To Turbo

1шт.

12

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

1шт.

13

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.
