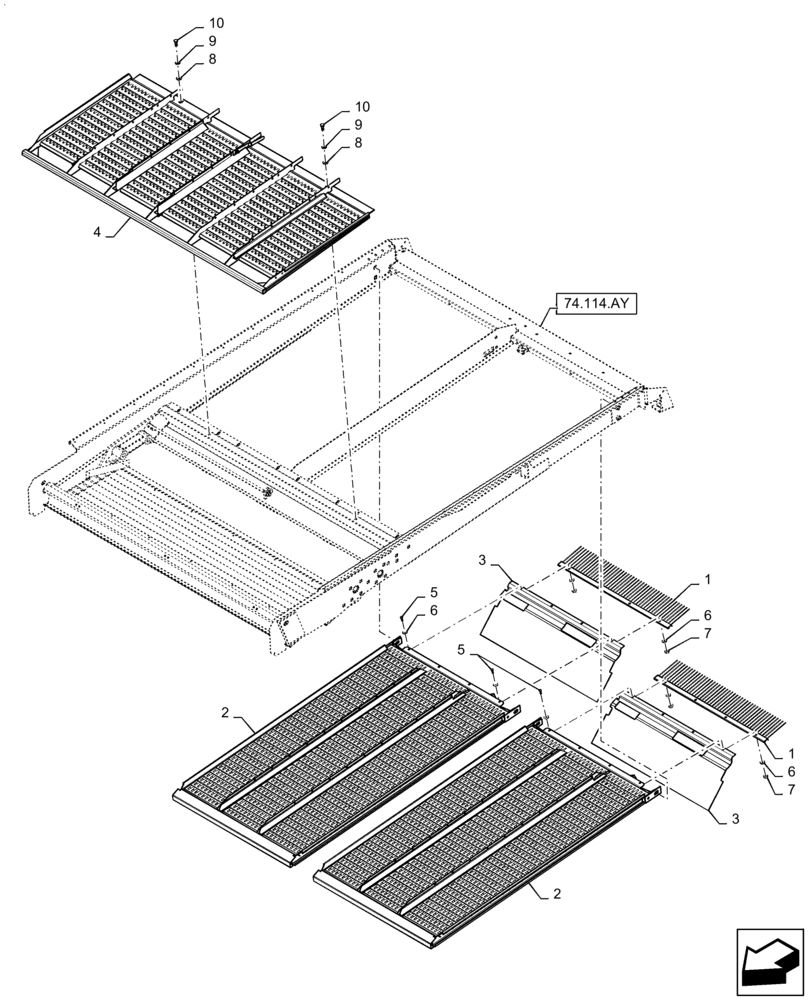

Запчасти Case IH 7230 (74.114.AZ[01]) - VAR - 722723 - UPPER SIEVE (74) - CLEANING

1

84100961

RAKE,151mm L

Sieve, Rear

2шт.

2

87109834

SIEVE

1 5/8" Corn

2шт.

3

84320875

SEAL,300mm W x 764mm OAL

Rubber Canvas

2шт.

4

87109826

SIEVE

Presieve, 1 5/8" Corn

1шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

6

412653

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

16шт.

7

9706755

NUT,M6, Cl 8

8шт.

8

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.
