Запчасти Case IH 7230 (74.114.AY) - SHAKER SHOE, UPPER (74) - CLEANING

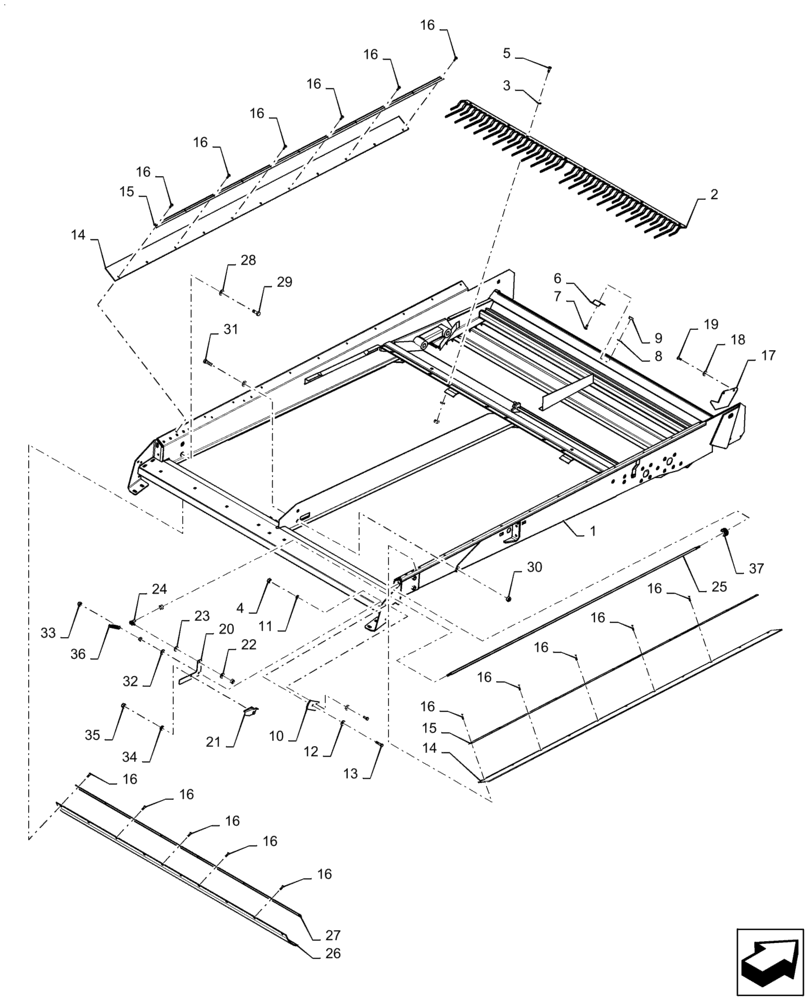

Схема запчастей Case IH 7230 - (74.114.AY) - SHAKER SHOE, UPPER (74) - CLEANING
16
16
3
30
16
36
27
29
15
20
11
37
16
22
32
14
16
16
2
1
16
10
16
16
35
8
16
33
16
7
31
16
19
24
16
26
6
4
21
16
9
15
16
18
34
25
28
12
13
17
14
23
16
5

Артикул

Название

Примечание

Количество

1

47449917

SHAKER SHOE

Upper

1шт.

2

84989436

RAKE

Shaker

1шт.

3

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

16шт.

4

9706690

NUT,M8 x 1.25, Cl 8

9шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

6

84462716

TAB SPRING

40mm W x 74mm OAL

3шт.

7

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

6шт.

8

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

9

9706755

NUT,M6, Cl 8

10шт.

10

84457729

PLATE

Seal Retainer

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

12

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

13

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

14

84071063

SEAL,80mm W x 2010mm OAL

Shaker Shoe

2шт.

15

84076111

STRIP

Retainer, 20mm W x 1970mm OAL x 1.65mm Thk

2шт.

16

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

32шт.

17

87333110

SEAL PROTECTION

Shaker Shoe, Front

2шт.

18

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

4шт.

19

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

20

84457706

HANDLE

Pre-Sieve Control

1шт.

21

84434086

HANDLE

Support

1шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

23

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

1шт.

24

84021043

BALL JOINT

Stud, M6 x 14.8mm OD

2шт.

25

84457696

ROD

Pre-Sieve Adjustment

1шт.

26

87318656

SEAL,135mm W x 1570mm OAL

Shaker Shoe, Rear

1шт.

27

84989486

STRIP

Retainer, 20mm W x 1535mm OAL x 1.65mm Thk

1шт.

28

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

29

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

30

9706685

NUT,M12 x 1.75, Cl 8

1шт.

31

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

32

397881

SPRING,8.199mm ID x 16mm OD x 0.9mm Thk

1шт.

33

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

34

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

35

353308

NUT,M6 x 1.0, Cl 8

1шт.

36

9832711

SPRING

Return, 50mm OAL

1шт.

37

190067

RUBBER BUSHING

Grommet, 11mm ID x 26mm OD x 12.3mm Thk

1шт.

Выбрано товаров: 37
