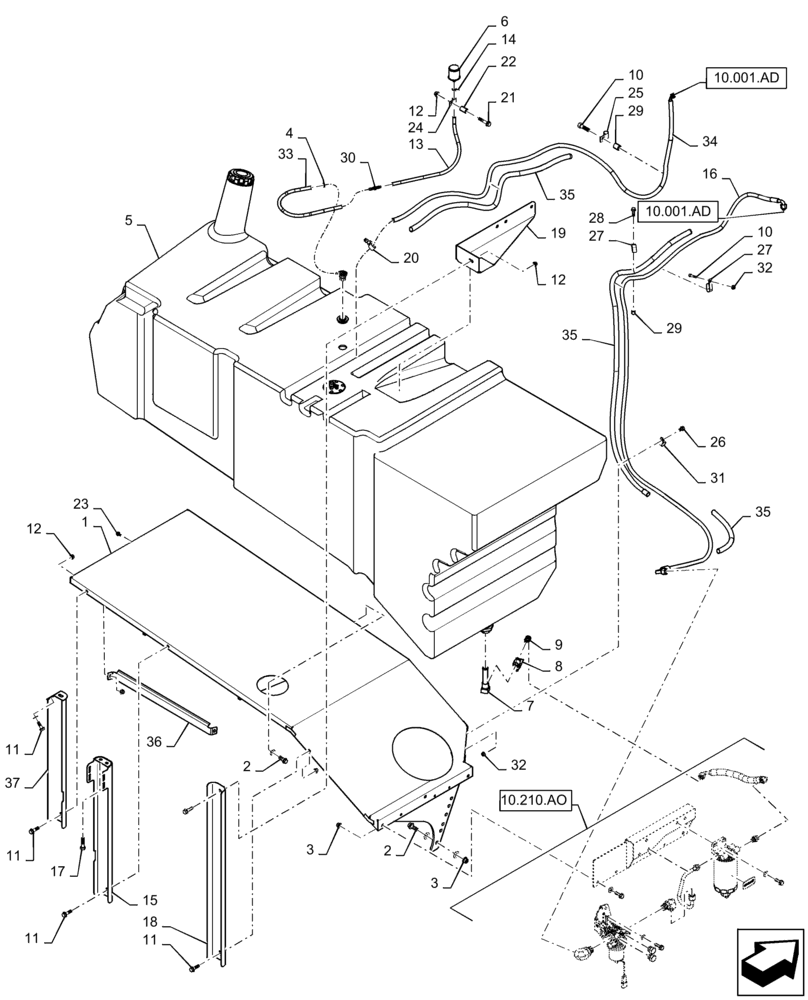

Запчасти Case IH 7230 (10.216.BA[01]) - FUEL LINE & TANK, 7230 (10) - ENGINE

1

84335081

SUPPORT ASSY.

Fuel Tank

1шт.

2

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

9шт.

3

86512497

FLANGE NUT,M12 x 1.75, Cl 10

9шт.

4

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

5

84591543

FUEL TANK

1000L

1шт.

6

47437399

FUEL FILTER

Vent

1шт.

7

84331258

FILTER STRAINER

30 Mesh

1шт.

8

84011517

DRAINCOCK/TAP SUPPLY,1/4" x 1/4"

1шт.

9

84069089

HYD CONNECTOR,M18 x 1.5 NPT

Nipple

1шт.

10

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

11

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

9шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

9шт.

13

47402087

BREATHER

Hose

1шт.

14

86637702

HOSE CLAMP,15.49mm - 16.26mm

1шт.

15

84346926

BRACKET

Supporting, Red

1шт.

16

87743281

FUEL HOSE,10mm ID x 2960mm L, SAE 100R6

Fuel Supply

1шт.

17

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

18

87734807

BRACKET

Tank

1шт.

19

87482602

BRACKET

Tank Mount

1шт.

20

85803079

HOSE CLAMP,0.56" - 1.06", Worm Gear

1.0" Worm Gear

1шт.

21

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

1шт.

22

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

Steel

1шт.

23

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

24

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

25

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

26

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

27

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

19mm Closed, Pinch

2шт.

28

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

29

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

30

47484902

UNION,3/8" - 1/4", Plastic Barb

1шт.

31

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

32

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

33

84302861

HOSE

Fuel Vent

1шт.

34

84372098

FUEL HOSE

Fuel Return

1шт.

35

87105416

HOSE PROTECTION,16.64 mm ID x 1345.00 mm

3шт.

36

84491926

BRACKET

Tank Support

1шт.

37

87750278

CHANNEL

Tank Support

1шт.
