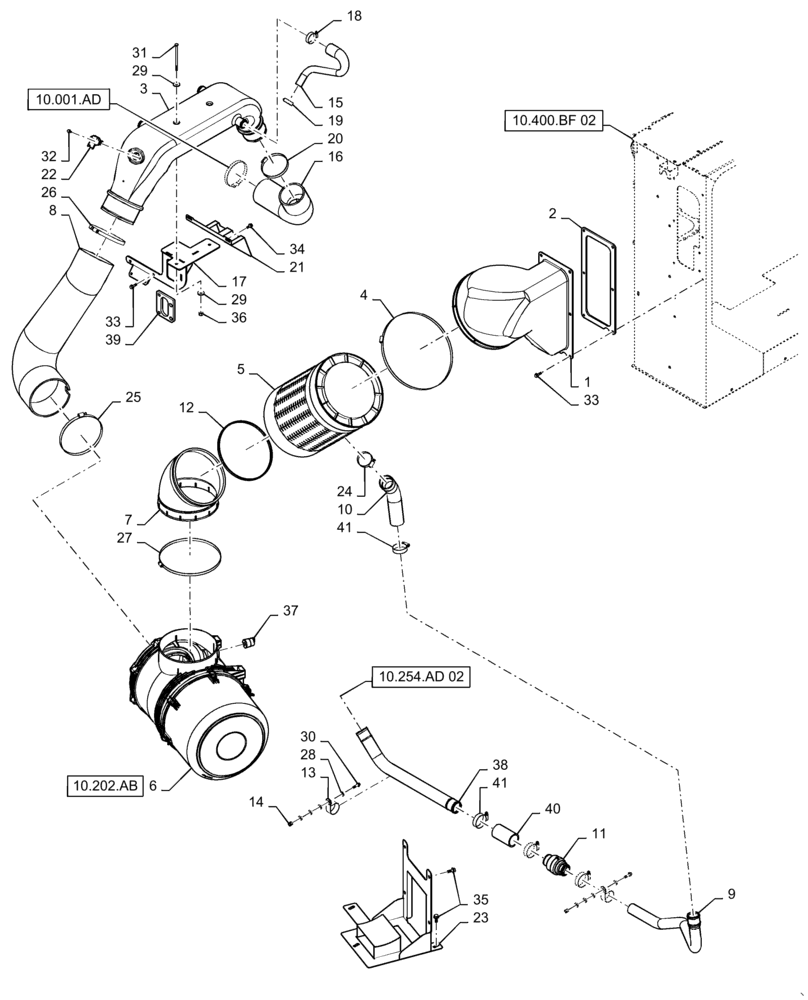

Запчасти Case IH 7230 (10.202.AK[02]) - AIR INTAKE/AIR CLEANER (10) - ENGINE

1

84410132

AIR DUCT

Air Intake

1шт.

2

84414539

GASKET,6.4mm Thk

Air Duct

1шт.

3

84244911

AIR INTAKE TUBE

Engine Crossover

1шт.

4

79083864

CLAMP,325mm ID - 360mm ID x 14mm W, Unlined

1шт.

5

84565656

AIR CLEANER

Precleaner

1шт.

6

84305918

AIR CLEANER

Engine

1шт.

7

84410134

TUBE

Elbow To Precleaner

1шт.

8

84581585

AIR INTAKE TUBE,152mm ID x 930.6mm L, SAE J20

Elbow From Air Cleaner To Crossover

1шт.

9

84513013

AIR INTAKE TUBE

Exhaust Scavenge

1шт.

10

84410135

HOSE

Exhaust Scavenge

1шт.

11

87745355

CHECK VALVE

Airflow

1шт.

12

84570099

SEAL

Adhesive, 1M Long

1шт.

13

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

14

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

15

84222624

ELBOW

From Crossover Tube

1шт.

16

84259850

ELBOW

To Turbo

1шт.

17

84524493

BRACKET

Crossover Support

1шт.

18

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

1шт.

19

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

1шт.

20

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

21

84196410

PLATE

Crossover Support

1шт.

22

87482355

SENSOR

Intake Air Temperature

1шт.

23

84517553

BRACKET

Airbox Support

1шт.

24

87778863

CLAMP,57mm ID - 79mm ID x 16mm W, Lined

1шт.

25

87019669

HOSE CLAMP,174.1mm - 196.8mm

1шт.

26

87690486

CLAMP,149mm ID - 172mm ID, SAE #100

1шт.

27

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

28

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

29

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

30

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

31

381522

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

2шт.

32

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

33

87698833

BOLT,M8 x 33.1mm, Cl 10.9

8шт.

34

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

35

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

7шт.

36

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

37

87013666

SWITCH,Air Filter Restriction

Air Intake Restriction

1шт.

38

84513014

AIR INTAKE TUBE

Exhaust Scavenge

1шт.

39

84524947

SUPPORT

Bracket

1шт.

40

87402766

HOSE

Exhaust Scavenge

1шт.

41

86625019

HOSE CLAMP,44mm - 67mm

4шт.
