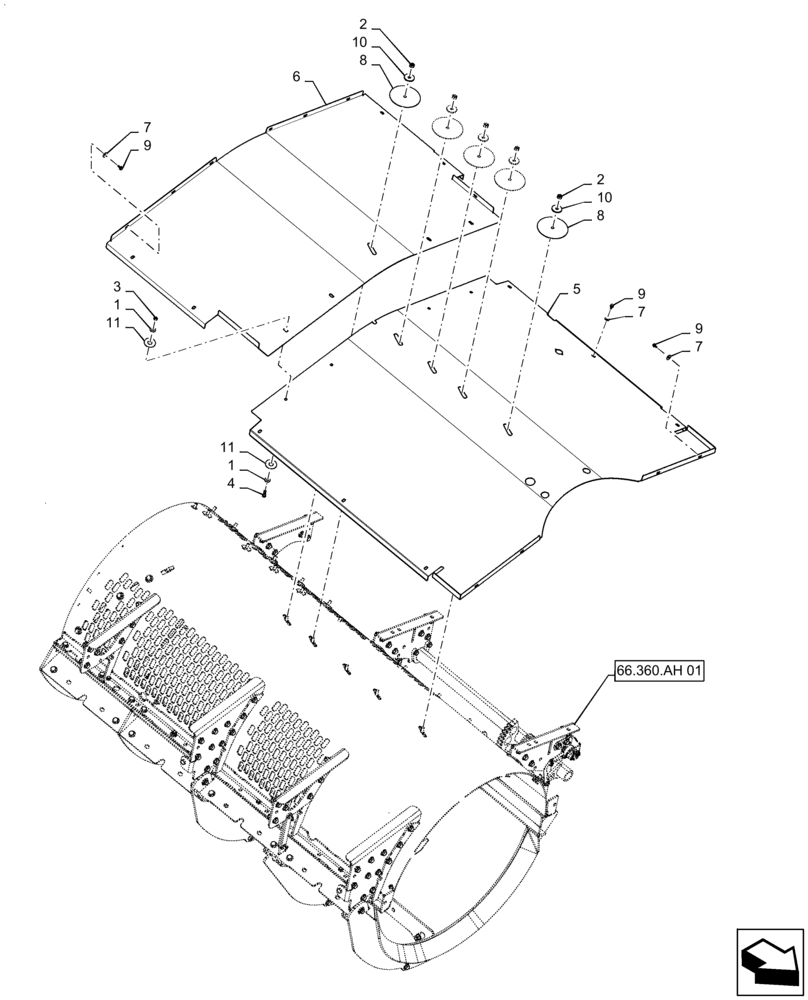

Запчасти Case IH 7230 (66.360.AH[02]) - VAR - 425198, 425199, 425513 - THRESHING CYLINDER (66) - THRESHING

1

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

2

100016

NUT,M10 x 1.5, Cl 8

5шт.

3

9706690

NUT,M8 x 1.25, Cl 8

4шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

5

87341413

ROOF

Front, Threshing, 1254mm OAL x 1453mm W

1шт.

6

87341565

ROOF

Rear, Threshing, 850mm OAL x 1451.75mm W

1шт.

7

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

22шт.

8

87341291

COVER

Poly, 11mm ID x 123mm OD

5шт.

9

412093

SELF-TAP SCREW

M6 x 12mm OAL

22шт.

10

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

5шт.

11

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

8шт.
