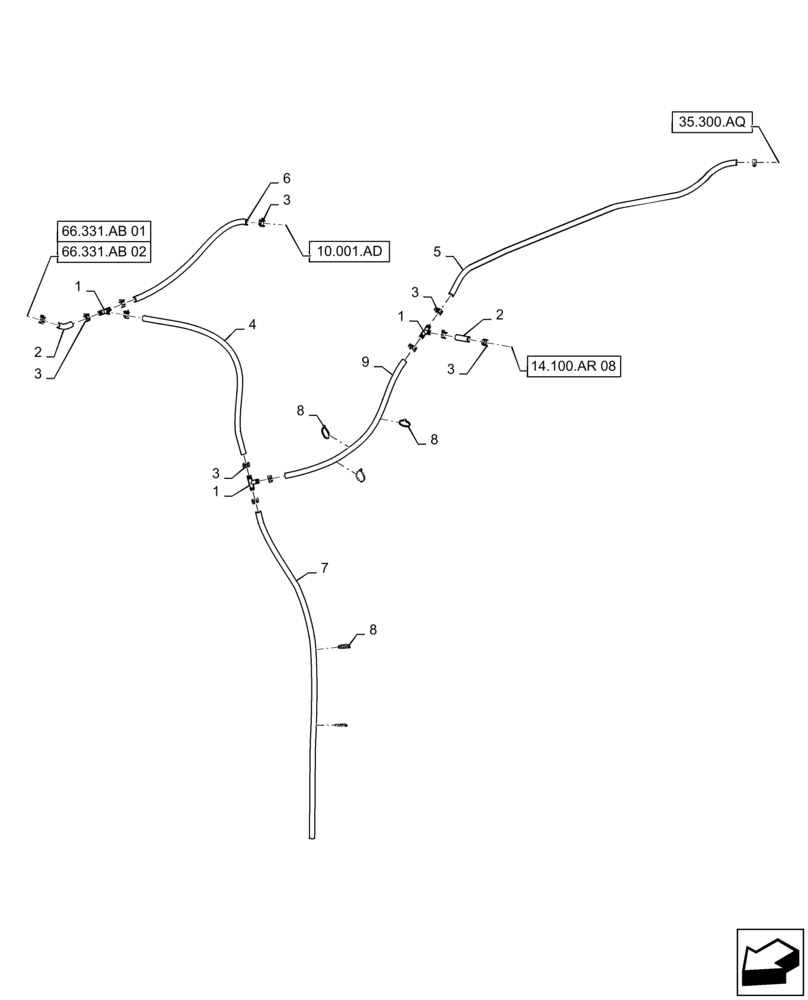

Запчасти Case IH 7230 (10.102.AW) - OIL DRAIN LINES (10) - ENGINE

1

87107102

TEE,5/8" Barb

Drain Line

3шт.

2

87107101

FLEXIBLE HOSE,5/8" ID

Breather and Drain, 75mm OAL

2шт.

3

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

13шт.

4

87106674

FLEXIBLE HOSE,5/8" ID

Rotor Gearbox Drain,1150mm OAL

1шт.

5

84364071

FLEXIBLE HOSE,15.75mm ID x 1900mm L

Fuel Drain, 1900mm OAL

1шт.

6

87106498

FLEXIBLE HOSE,5/8" ID

PTO Drain, 710mm OAL

1шт.

7

87106502

FLEXIBLE HOSE,5/8" ID

Drain, 1500mm OAL

1шт.

8

86566989

CABLE TIE,208mm L

7шт.

9

87646918

FLEXIBLE HOSE,5/8" ID

Drain, 900mm Long

1шт.
