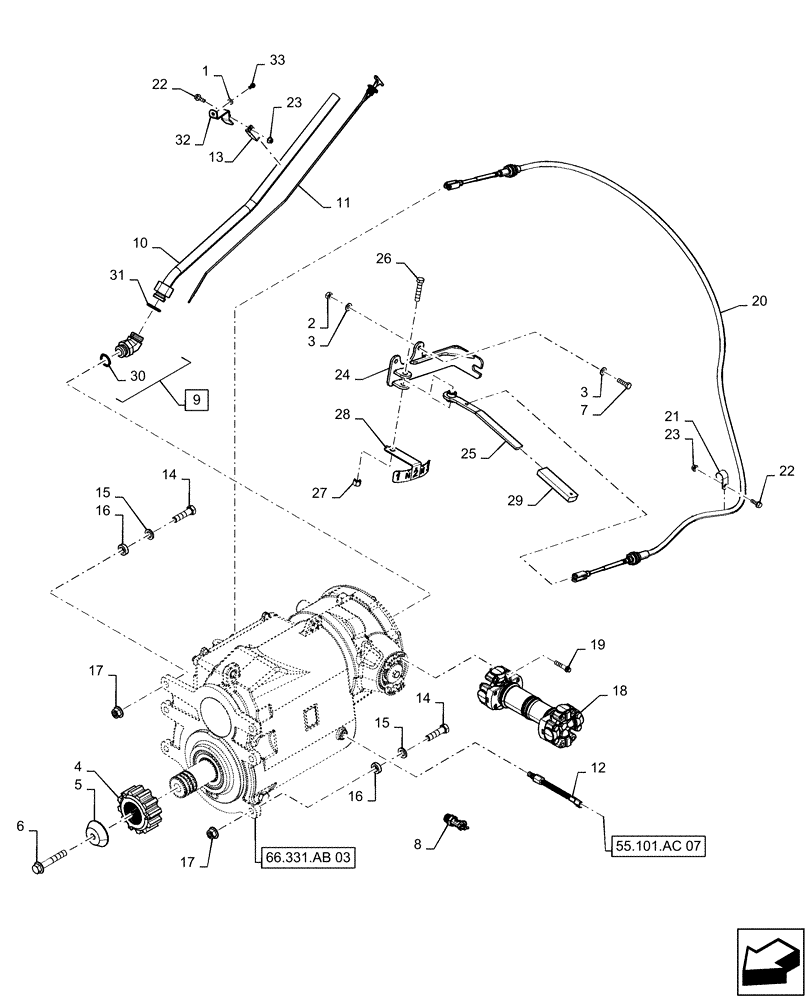

Запчасти Case IH 7230 (66.331.AB[01]) - GEARBOX, ROTOR (66) - THRESHING

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

2

100016

NUT,M10 x 1.5, Cl 8

2шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

4

86980985

GEAR,39T Internal / 12T External

Straight Internal Spline

1шт.

Check Internal Bore Before Ordering

1шт.

4

47523311

GEAR

Tapered Internal Spline

1шт.

Check Internal Bore Before Ordering

1шт.

5

47523315

WASHER,13mm ID x 76.2mm OD x 12mm Thk

1шт.

6

47607661

BOLT,M16 x 115.4mm, Cl 10.9

1шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

8

87485712

DRAINCOCK/TAP SUPPLY

Drain Valve

1шт.

9

86639054

45 ELBOW,45 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 30

1шт.

10

87553424

TUBE,1" OD

Rotor Gearbox Dipstick

1шт.

11

84153776

DIPSTICK

Rotor Gearbox

1шт.

12

87662555

SENSOR

Rotor Speed

1шт.

13

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

25.4mm OD

1шт.

14

87017895

BOLT,M16 x 2.0 x 70.18mm, Cl 10.9

6шт.

15

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

16

87106105

SPACER

17.46mm ID x 30.16mm OD x 9mm Thk

6шт.

17

86981464

FLANGE NUT,M16 x 2.0, Cl 10

6шт.

18

87109129

DRIVE SHAFT

Rotor Gearbox, Class 7/8

1шт.

18

47423123

DRIVE SHAFT

Rotor Gearbox, Class 9

1шт.

19

87017891

12 PT SCREW,M10 x 1.5 x 55mm, Cl 12.9

8шт.

20

86998008

CABLE,2900mm L

Rotor Gearbox Shift

1шт.

21

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

22

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

23

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

24

87107830

BRACKET

Rotor Gearbox Shift Cable Mount

1шт.

25

87107827

LEVER

Rotor Gearbox Shift

1шт.

26

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

27

412126

NUT,M12 x 1.75

1шт.

28

87106667

INDICATOR

Rotor Box Gear Indicator

1шт.

29

357545

HANDLE GRIP

Rotor Gearbox Shifter

1шт.

30

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

31

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

32

47763616

BRACKET

Dipstick Mount

1шт.

33

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
