Запчасти Case IH 7230 (60.150.AO[04]) - VAR - 425362 - DRIVE SHAFT, FEEDER (60) - PRODUCT FEEDING

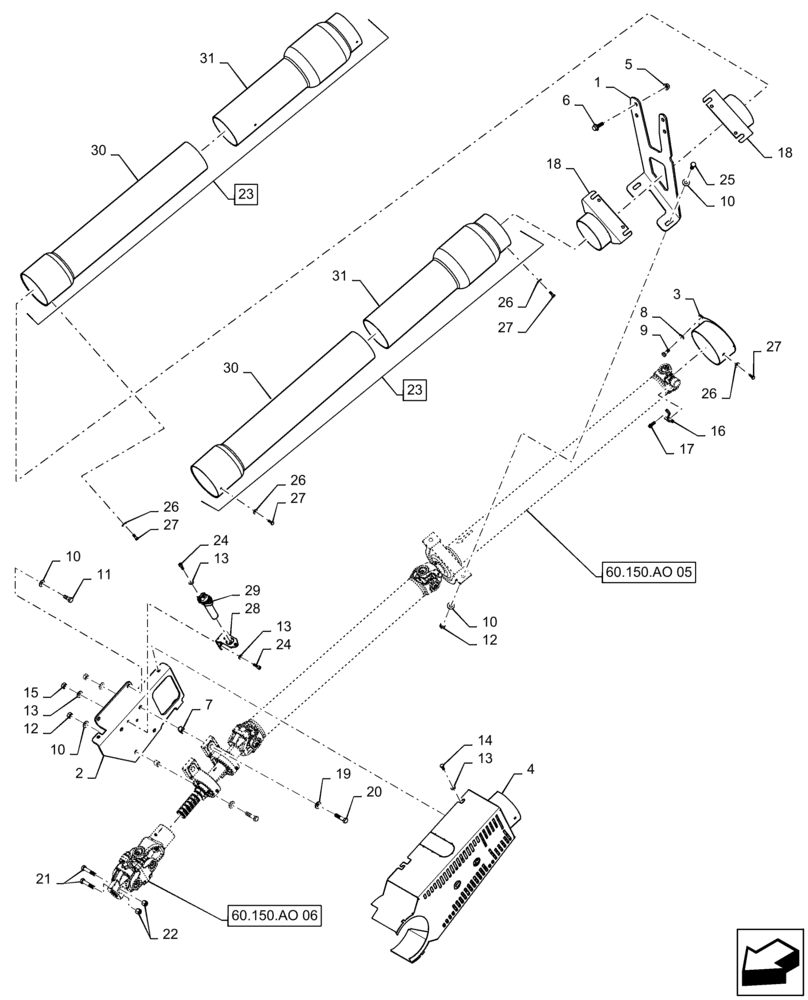

Схема запчастей Case IH 7230 - (60.150.AO[04]) - VAR - 425362 - DRIVE SHAFT, FEEDER (60) - PRODUCT FEEDING
9
7
10
60.150.ao 06
16
8
26
2
13
14
10
28
31
17
10
12
19
25
4
26
10
27
23
18
15
11
27
21
30
29
20
60.150.ao 05
18
13
3
30
27
24
22
26
27
13
13
6
24
1
12
26
31
23
5

Артикул

Название

Примечание

Количество

1

47575647

BRACKET

Bearing Support

1шт.

2

84310960

BRACKET

Feeder/Header Pillowblock

1шт.

3

87673747

SHIELD

Variable

1шт.

4

47425909

SHIELD

Feeder Drive Shaft/Feed Rate

1шт.

5

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

6

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

2шт.

7

84475437

SPACER

Alignment, 12.3mm ID x 26.5mm OD x 15mm Thk

4шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

11шт.

11

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

12

9706685

NUT,M12 x 1.75, Cl 8

6шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

15

9706690

NUT,M8 x 1.25, Cl 8

2шт.

16

9672925

SECURING STRAP

35.1mm ID x 73.2mm OAL x 22.4mm Thk

2шт.

17

87010436

12 PT SCREW,3/8"-24 x 1-1/5", Cl 8

4шт.

18

87673744

BRACKET

Center Driveshaft

2шт.

19

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

20

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

21

87021759

BOLT,M12 x 1.75 x 60mm, Cl 10.9

2шт.

22

87021758

NUT,M12 x 1.75, Cl 10

2шт.

23

87106571

SHIELD

Drive Shaft Guard, Incl 30 - 31

2шт.

24

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

4шт.

25

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

27

87041331

BOLT,Hex, M6 x 16mm, Cl 8.8

4шт.

28

84352053

BRACKET

Torque Sensor

1шт.

29

84310955

SENSOR

Torque

1шт.

30

NSS

NOT SOLD SEPARAT

Sleeve, Feeder/Header Driveshaft, Incl in 23

2шт.

31

NSS

NOT SOLD SEPARAT

Sleeve, Feeder/Header Driveshaft, Incl in 23

2шт.

Выбрано товаров: 31
