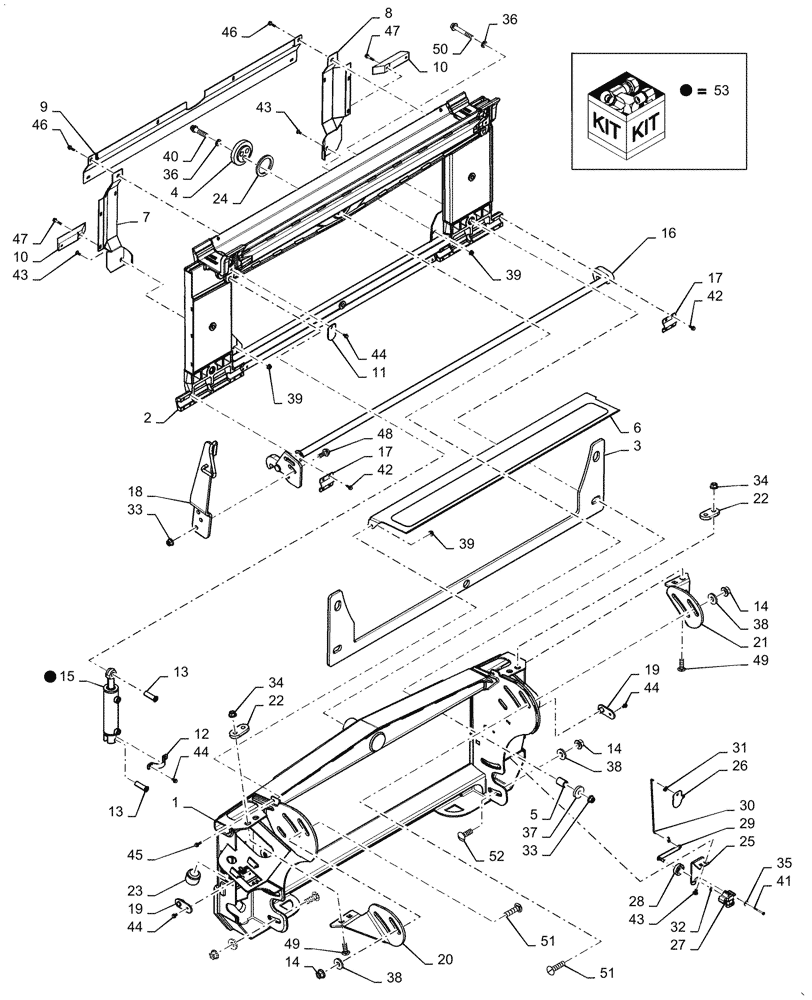

Запчасти Case IH 7230 (60.110.AA[02]) - VAR - 722742, 425546, 722744, 425547 - ADAPTER, FEEDER (60) - PRODUCT FEEDING

1

87649360

ADAPTER

Feeder Adapter

1шт.

2

84591121

FRAME

Feeder Cradle, 14mm Lateral Tilt Cylinder Pin

1шт.

3

84392517

WEAR STRIP

Poly

1шт.

4

87635130

RETAINING PLATE

Feeder Adapter Pivot, Serial Range: -YDG222003

1шт.

4

47646799

PLATE

Feeder Adapter Pivot , Start Serial: YDG222003

1шт.

5

87107672

SPACER,20.64mm ID x 30.16mm OD x 42mm L

2шт.

6

84164528

SHIELD

Adapter, Top

1шт.

7

84591107

SHIELD

Crop Deflector, LH

1шт.

8

84591109

SHIELD

Crop Deflector, RH

1шт.

9

87673524

DEFLECTOR

Crop Shield, Bottom

1шт.

10

84144529

SHIELD

Stripper

2шт.

11

87312141

PLATE

Cylinder Cover

1шт.

12

87107105

U-BRACKET

Cylinder Cover

1шт.

13

87312143

PIN,14mm OD x 68.5mm L

2шт.

14

86512499

FLANGE NUT,M20 x 2.5, Cl 10

14шт.

15

87282645

CYLINDER,Double Acting, 28mm Rod, 140mm Stroke

Lateral Tilt, Standard, 14mm

1шт.

16

84587081

LATCH

Header Lock

1шт.

17

87107674

CLAMP

Header Lock Retainer

2шт.

18

84314118

LEVER

Header Latch

1шт.

19

87106719

BRACKET

Feeder Face Angle

2шт.

20

47590207

BRACKET

Feeder Face Tilt, LH

1шт.

21

47590211

BRACKET

Feeder Face Tilt, RH

1шт.

22

47590198

SPACER

Bracket Mount

2шт.

23

87105683

CAP

Header Harness Storage

1шт.

24

86995542

THRUST WASHER,77.5mm ID x 101.6mm OD x 7.8mm Thk

Center Face Pivot

1шт.

25

47598040

ANGLE

Lateral Tilt Mount

1шт.

26

47360461

PLATE

Lateral Tilt

1шт.

27

87330286

SENSOR

Lateral Tilt Angle

1шт.

28

87362420

MOUNT

Lateral Tilt

1шт.

29

47360490

SHAFT

Lateral Tilt Linkage

1шт.

30

47360497

LINK

Lateral Tilt Linkage

1шт.

31

9821714

CLIP

Linkage Rod End

2шт.

32

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

33

87016581

FLANGE NUT,M16 x 2, CI 10

5шт.

34

86512498

FLANGE NUT,M16 x 2, Cl 10

4шт.

35

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

36

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

37

913347

WASHER,M17 x 56mm OD x 11mm Thk

2шт.

38

86592703

WASHER,21mm ID x 50mm OD x 6mm Thk

14шт.

39

87681210

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

40

11119274

BOLT,Hex, M16 x 65mm, Cl 10.9

, Serial Range: -YDG222003

3шт.

40

87742368

12 PT SCREW,M20 x 1.5 x 90mm, Cl 10.9

, Start Serial: YDG222003

3шт.

41

87384106

BOLT,M4 x 42.92mm, Cl 8.8

2шт.

42

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

12шт.

43

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

4шт.

44

87681207

BOLT,M8 x 24.1mm, Cl 10.9

6шт.

45

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

46

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

47

87698834

BOLT,M8 x 48.1mm, Cl 10.9

4шт.

48

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

3шт.

49

87698768

CARRIAGE BOLT,M16 x 60.9mm, Cl 10.9

4шт.

50

87015923

BOLT,M16 x 125.4mm, Cl 10.9

2шт.

51

84480445

CARRIAGE BOLT,M20 x 90.9mm, Cl 10.9

8шт.

52

86981478

CARRIAGE BOLT,M20 x 70.9mm, Cl 10.9

6шт.

53

87491388

SEAL KIT

Services 15

1шт.
