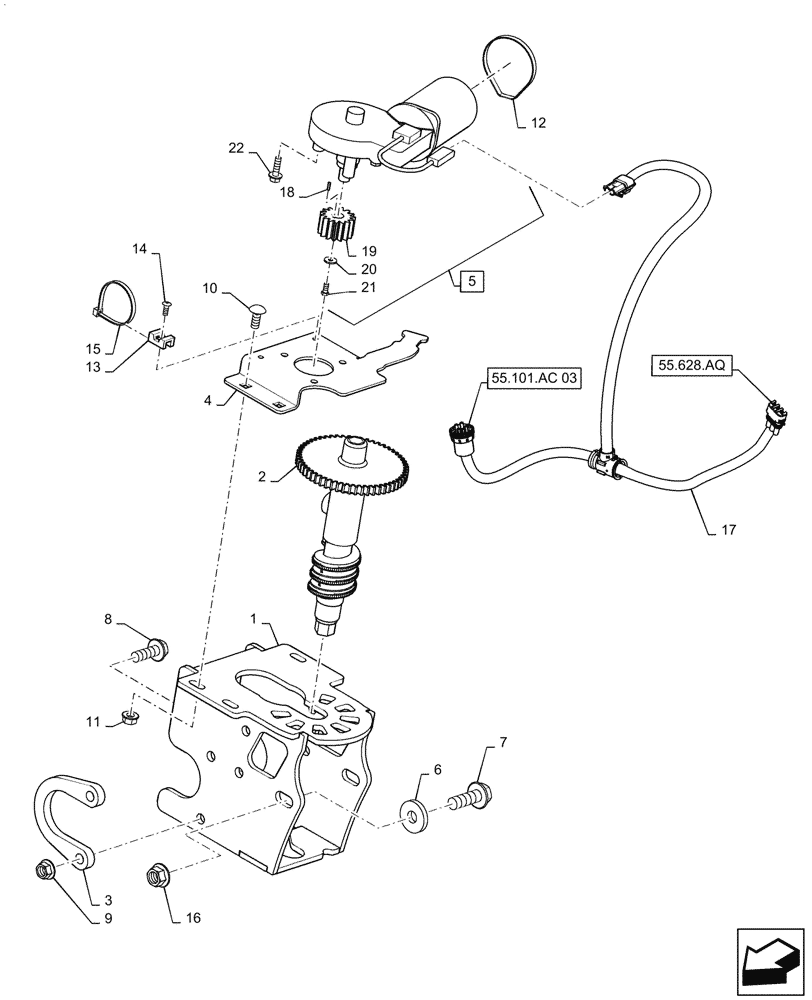

Запчасти Case IH 7230 (55.628.AP) - ADJUSTER, CONCAVE (55) - ELECTRICAL SYSTEMS

1

47581464

PIVOT

Concave Motor Bracket

1шт.

2

84370746

SHAFT W/WORM SCREW

Concave Adjustment Gear

1шт.

3

86997859

BRACKET

Supporting, LH

1шт.

4

84375541

MOUNTING PLATE

Electric Motor Mount

1шт.

5

84350623

ELECTRIC MOTOR

Concave Adjustment, Incl 18 - 22

1шт.

5

84350623R

REMAN-ELECTRIC MOTOR

1шт.

5

84350623C

CORE-ELECTRIC MOTOR

Return Number

1шт.

6

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

1шт.

7

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

1шт.

8

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

9

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

11

86981461

FLANGE NUT,M8 x 1.25, Cl 8

3шт.

12

529070

CABLE TIE,368.3mm L

1шт.

13

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

14

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

15

86566989

CABLE TIE,208mm L

1шт.

16

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.

17

84350625

WIRE HARNESS

Concave Adjustment Motor, X-456 (LH Chassis Harness) /X-176 (Adjustment Motor)/X-189 (Concave Position), Years: -17-SEP-13

1шт.

17

47566687

WIRE HARNESS

Concave Adjustment Motor, X-456 (LH Chassis Harness) /X-176 (Adjustment Motor)/X-189 (Concave Position), Start Year: 18-SEP-13

1шт.

18

14721010

KEY,4mm x 4mm x 14mm

1шт.

19

84350618

GEAR

Concave Adjustment, 15 Tooth

1шт.

20

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

1шт.

21

385683

BOLT,M4 x 0.7 x 12.92mm, Cl 8.8

1шт.

22

86511892

BOLT,Hex Serr, M6 x 16mm

3шт.
