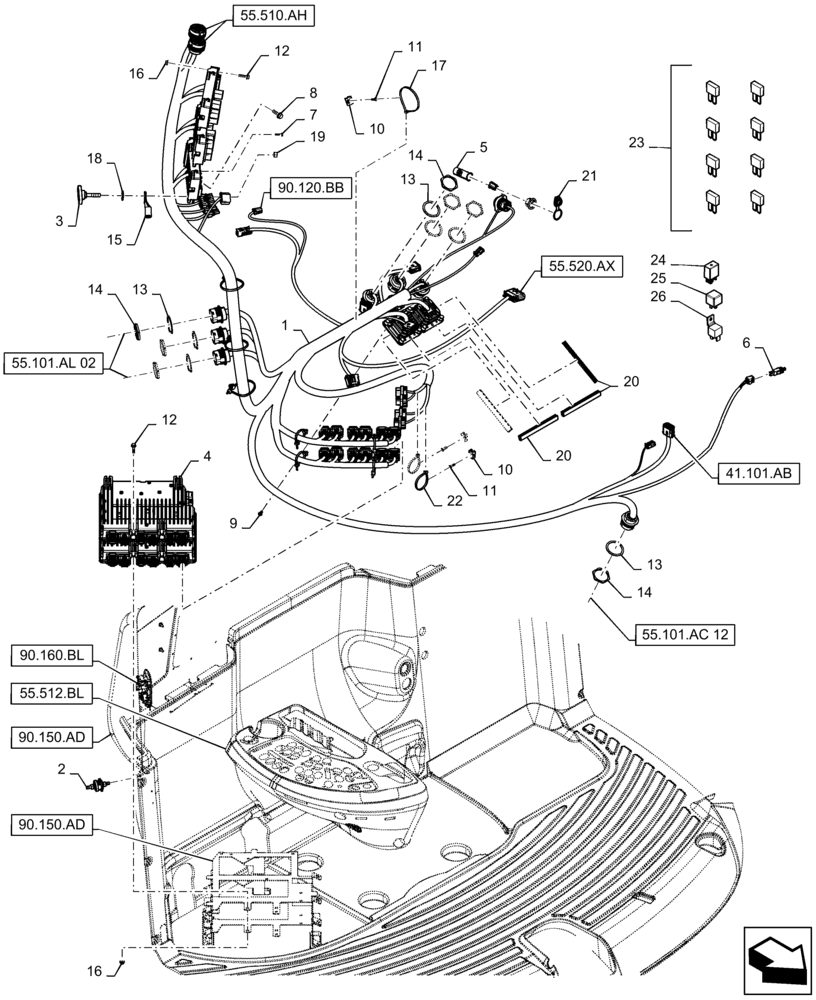

Запчасти Case IH 7230 (55.510.AF) - CAB, ELECTRICAL (55) - ELECTRICAL SYSTEMS

1

47484368

WIRE HARNESS

Cab Main, Serial Range: -YDG222004

1шт.

1

47466847

WIRE HARNESS

Cab Main, Start Serial: YDG222005

1шт.

Uses 2500 Ohm Resistor 47405859, Yellow

1шт.

2

190158A1

BLOCK

Junction Box

1шт.

3

303717A1

JUNCTION BLOCK

2шт.

4

84589140

MODULE

ECU/UCM

2шт.

5

388812A1

OUTLET

10A 12V

1шт.

6

1983341C1

SWITCH

LH Door Switch

1шт.

7

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

1шт.

8

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

9

87040922

SELF-TAP SCREW,Washer Hd, #12-24 x 5/8"

8шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

7шт.

11

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

7шт.

12

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

20шт.

13

84420455

LOCK WASHER,48mm ID x 45.8mm OD

2.080" OD

8шт.

14

87271930

NUT

#24

8шт.

15

47406283

CABLE,660mm L

Ground Strap

1шт.

16

86050300

FLANGE NUT,M6 x 1.0, Cl 10

20шт.

17

86566990

CABLE TIE,292mm OAL x 4.8mm W

3шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

1327979C1

MOLDING

Black Edge Trim

4шт.

21

84556691

COVER

10A Outlet Dust Cover

1шт.

22

86566989

CABLE TIE,208mm L

2шт.

23

222699A1

FUSE KIT

Contains 1 of each: 3,5,7.5,10,15,20,25,30 Amp Fuse

1шт.

24

84543528

RELAY,12V, 20A, Micro

Micro

1шт.

25

82013124

RELAY,12V, 30A

Mini

1шт.

26

82012872

RELAY,70A

Main Power

1шт.

27

127290A1

DIODE

UCM1/2 (Not Shown)

3шт.
