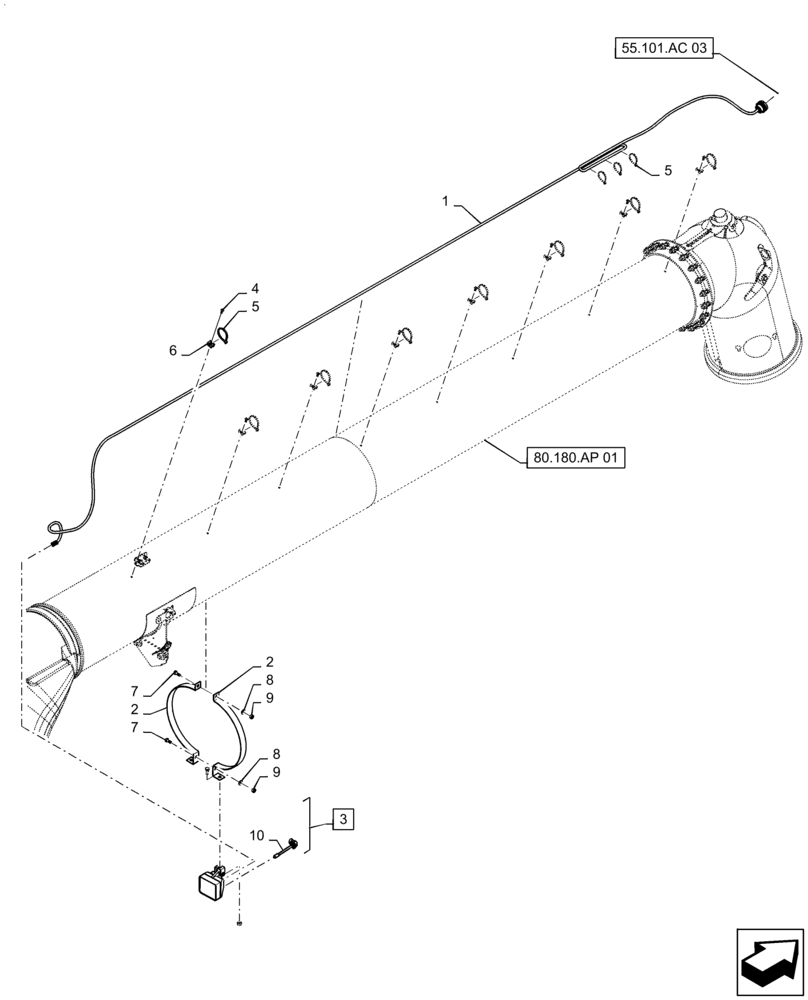

Запчасти Case IH 7230 (55.404.CU[01]) - VAR - 425329, 425330, 722740 - LIGHT, UNLOADING AUGER (55) - ELECTRICAL SYSTEMS

1

47501340

WIRE HARNESS

Unload Tube Light

1шт.

2

84479806

BRACKET

Unloader Light

2шт.

3

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Flood, Incl 10

1шт.

3

47682620

WORK LAMP,Flood, LED, 12V

LIGHT, WORK, LED

1шт.

4

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

5

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

8шт.

6

86566989

CABLE TIE,208mm L

12шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

9

100016

NUT,M10 x 1.5, Cl 8

3шт.

10

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

1шт.
