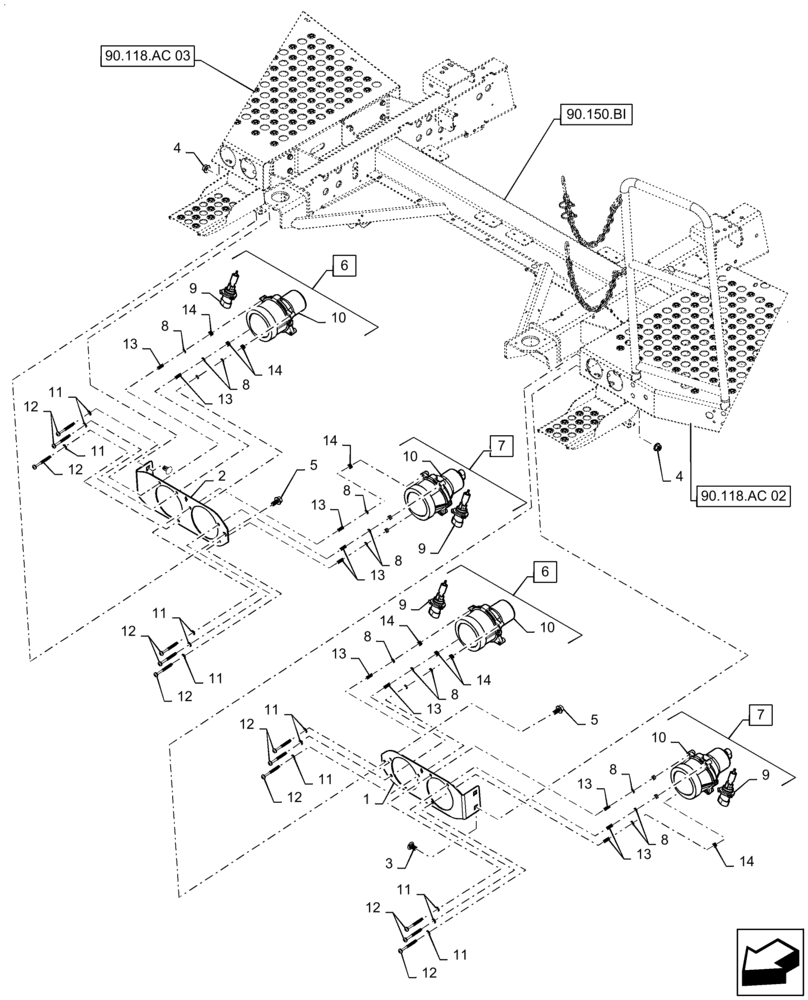

Запчасти Case IH 7230 (55.404.AQ[04]) - VAR - 722094, 722095, 722203, 722091, 722093, 722092, 722374, 722610, 722090, 722205, 722359, 722089, 722088 - HEADLIGHT, PLATFORM, FRONT (55) - ELECTRICAL SYSTEMS

1

84401791

BRACKET

Headlight, LH

1шт.

2

84404678

BRACKET

Headlight, RH

1шт.

3

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

4шт.

4

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

5

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

6

84211230

LAMP

High Beam Projector, Incl 8 - 14

2шт.

7

84213799

LAMP

Low Beam, RH Drive Projector, Incl 8 - 13, - VAR - 722094, 722095, 722203, 722091, 722093, 722092, 722374, 722610, 722090, 722205, 722359, 722089

2шт.

7

84132082

LAMP

Low Beam, LH Drive Projector, Incl 8 - 13, - VAR - 722088

2шт.

8

87698783

WASHER,5.3mm ID x 8.9mm OD x 1.2mm Thk

5.3mm ID x 8.9mm OD x 1.2mm Thk

6шт.

9

84536888

BULB

HB3

2шт.

10

84153606

PLASTIC

Headlight Housing

2шт.

11

86625264

LOCK WASHER,Ext Tooth, M5

6шт.

12

NSS

NOT SOLD SEPARAT

Adjustment Screw, Incl In 6 - 7

6шт.

13

NSS

NOT SOLD SEPARAT

Spring, Incl in 6 - 7

3шт.

14

NSS

NOT SOLD SEPARAT

Spacer, Incl in 6

3шт.
