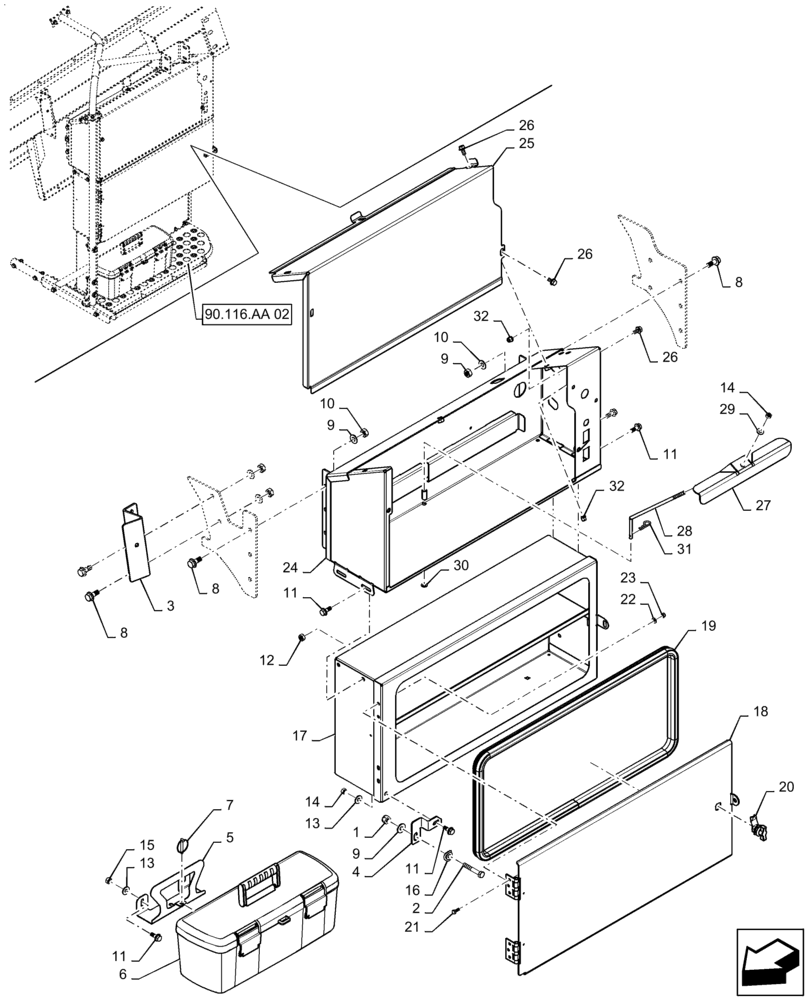

Запчасти Case IH 7230 (55.302.AH) - BOX, BATTERY ASSY, STORAGE (55) - ELECTRICAL SYSTEMS

1

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

2

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

3

84358514

BRACKET

Hydraulic Tube Support

1шт.

4

84257010

BRACKET

Storage Box

1шт.

5

84319897

BRACKET

Tool Box Mount

1шт.

6

87400261

TOOL BOX

1шт.

7

82013836

ROLL PIN,6mm OD

1шт.

8

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

10

86500689

NUT,M10 x 1.5, Cl 10

8шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

7шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

14

9706690

NUT,M8 x 1.25, Cl 8

2шт.

15

43362

NUT,M8 x 1.25, Cl 10

2шт.

16

379401

WASHER,11mm ID x 30mm OD

1шт.

17

84238727

CAB STORAGE BOX

Chassis

1шт.

18

84278002

DOOR

Chassis Storage Box

1шт.

19

401209

SEAL PROTECTION

Chassis Storage Box

1шт.

20

182925A1

LOCK

Chassis Storage Box

1шт.

21

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

23

353308

NUT,M6 x 1.0, Cl 8

4шт.

24

84264230

BATTERY TRAY

Chassis

1шт.

25

84527136

PANEL

Battery Box, Front

1шт.

26

87681207

BOLT,M8 x 24.1mm, Cl 10.9

8шт.

27

87109059

BRACKET

Battery Clamp

1шт.

28

84319485

ROD

Battery Hold Down

1шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

30

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

31

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

32

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

5шт.
