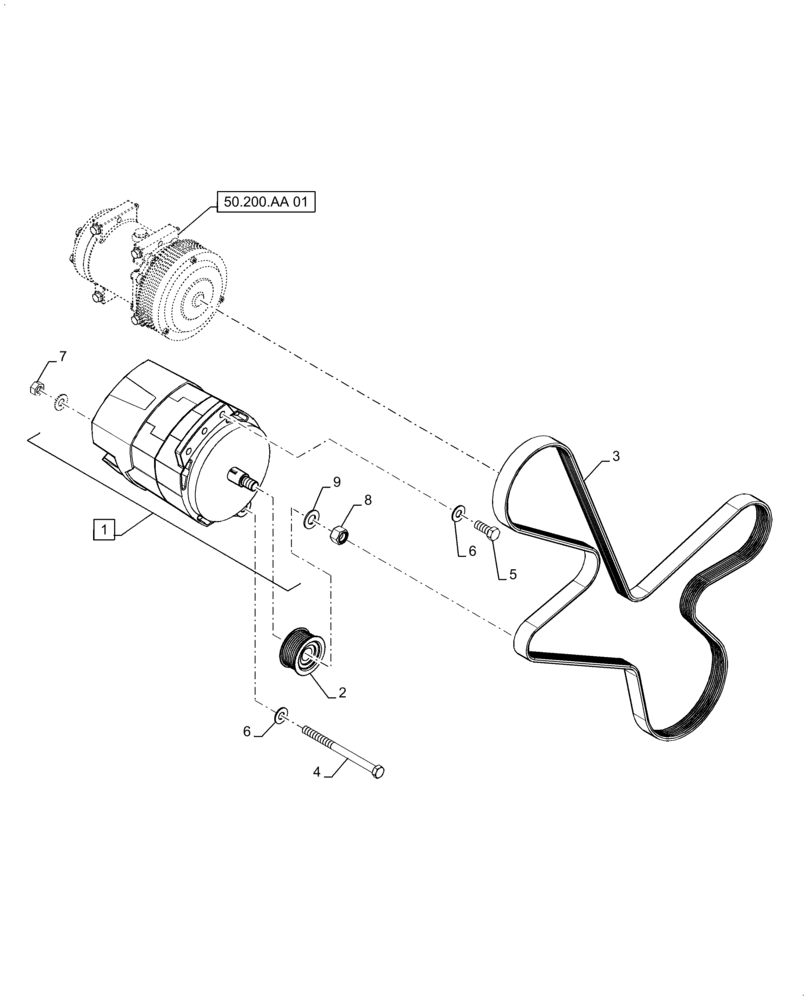

Запчасти Case IH 7230 (55.301.AD[01]) - ALTERNATOR, BELT (55) - ELECTRICAL SYSTEMS

1

87592254

ALTERNATOR,12V, 185A

Incl 8, 9

1шт.

2

84185327

PULLEY

Alternator, 22.25mm ID x 68mm OD x 36mm W

1шт.

3

84292639

BELT

Multi-V, Alternator/ A/C Compressor, 2509mm OAL

1шт.

4

397393

BOLT,M12 x 1.75 x 167.68mm OAL, Cl 8.8

1шт.

5

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

7

9706685

NUT,M12 x 1.75, Cl 8

1шт.

8

NSS

NOT SOLD SEPARAT

Nut, 5/8" -18, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Washer, Flat, 5/8", Incl in 1

1шт.
