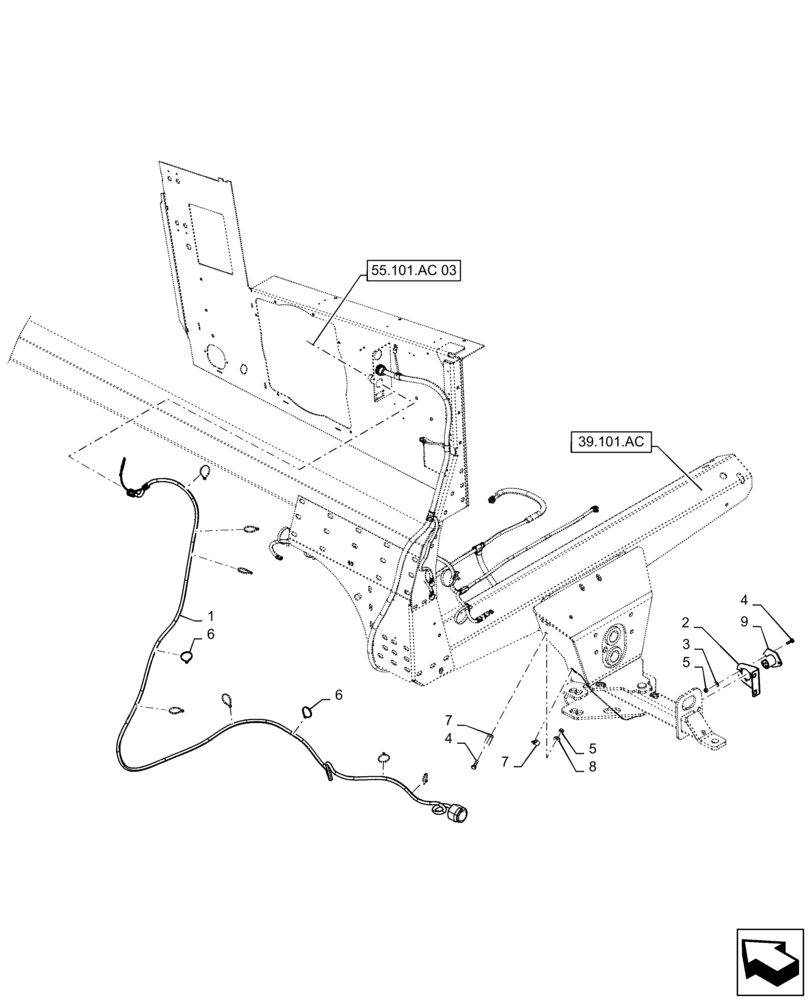

Запчасти Case IH 7230 (55.130.AR[01]) - VAR - 722520, 722822 - WIRE HARNESS, TRAILER HITCH (55) - ELECTRICAL SYSTEMS

1

47501357

WIRE HARNESS

Trailer Plug

1шт.

2

84571767

MOUNTING PLATE

Trailer Plug

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

5

9706690

NUT,M8 x 1.25, Cl 8

3шт.

6

86566989

CABLE TIE,208mm L

15шт.

7

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

9

265927

POWER SOCKET

Trailer Harness

1шт.
