Запчасти Case IH 7230 (55.101.AC[15]) - WIRE HARNESS, CLEAN GRAIN ELEVATOR, ASN YDG222005 (55) - ELECTRICAL SYSTEMS

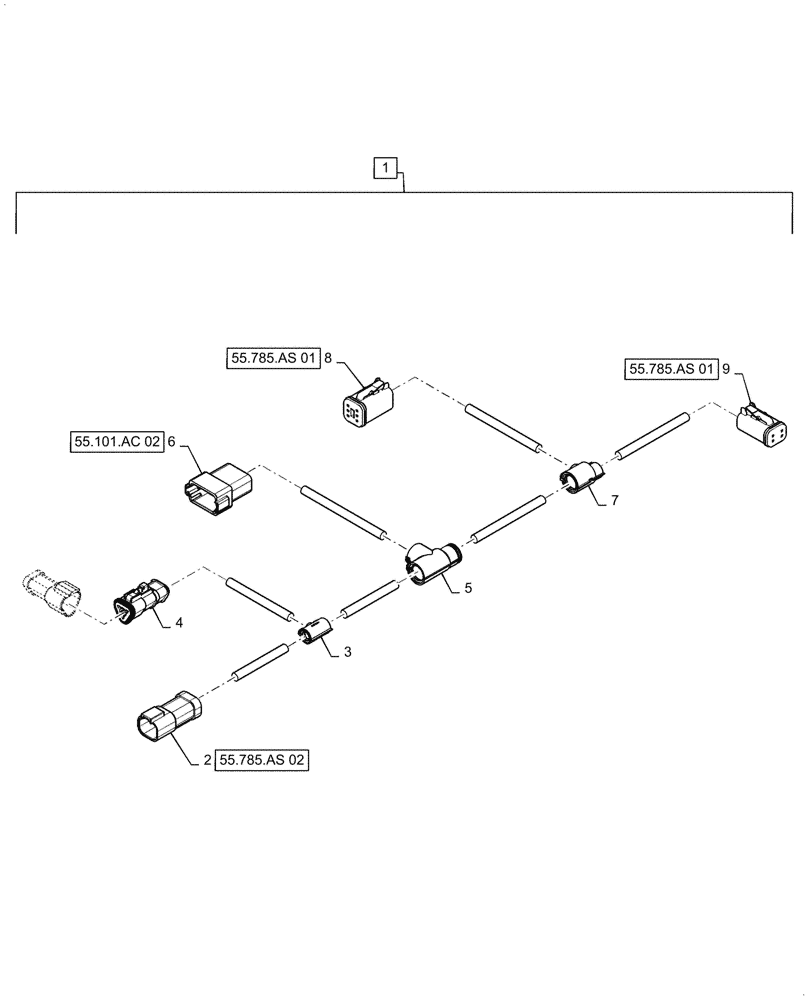

Схема запчастей Case IH 7230 - (55.101.AC[15]) - WIRE HARNESS, CLEAN GRAIN ELEVATOR, ASN YDG222005 (55) - ELECTRICAL SYSTEMS
55.785.as 02
8
4
3
5
1
7
6
9
2
55.101.ac 02
55.785.as 01
55.785.as 01

Артикул

Название

Примечание

Количество

1

47501326

WIRE HARNESS

Clean Grain Elevator, Incl 2 - 9

1шт.

2

84122359

WIRE CONNECTOR

Yield Sensor, X-223

1шт.

2

87694145

ELEC CONNECTOR

Yield Sensor, X-223

1шт.

2

87695623

ELEC. TERMINAL PIN

Yield Sensor, X-223

4шт.

3

84148407

JUNCTION BLOCK

Conduit

1шт.

4

84058093

SOCKET

CAN 2 Terminator, X-446

1шт.

4

84058194

PLUG

CAN 2 Terminator, X-446

1шт.

4

84058092

CONTACT HOUSING,120 Ohm Resistor

CAN 2 Terminator, X-446

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

5

84486553

Tee, Conduit

1шт.

5

82012361

JUNCTION

Reducer

1шт.

5

84126228

REDUCER

Junction

1шт.

6

84278761

ELEC CONNECTOR

X-220

1шт.

6

84068583

PLUG,12 - 16 Ga, White

X-220

1шт.

6

87695623

ELEC. TERMINAL PIN

X-220

11шт.

7

84303400

Juction, Conduit

1шт.

8

87694112

ELEC CONNECTOR,Female, 6 Pole

Moisture Sensor, X-221

1шт.

8

87694150

LOCKING TAB,Wedge Lock

Moisture Sensor, X-221

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Moisture Sensor, X-221

5шт.

9

87694153

CONTACT HOUSING,Female, 4 Cavities

Sample Motor, X-222

1шт.

9

84074640

LOCKING TAB,Wedge Lock

Sample Motor, X-222

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Sample Motor, X-222

4шт.

Выбрано товаров: 22
