Запчасти Case IH 7230 (55.101.AC[12]) - WIRE HARNESS, OPERATORS LADDER, FRONT (55) - ELECTRICAL SYSTEMS

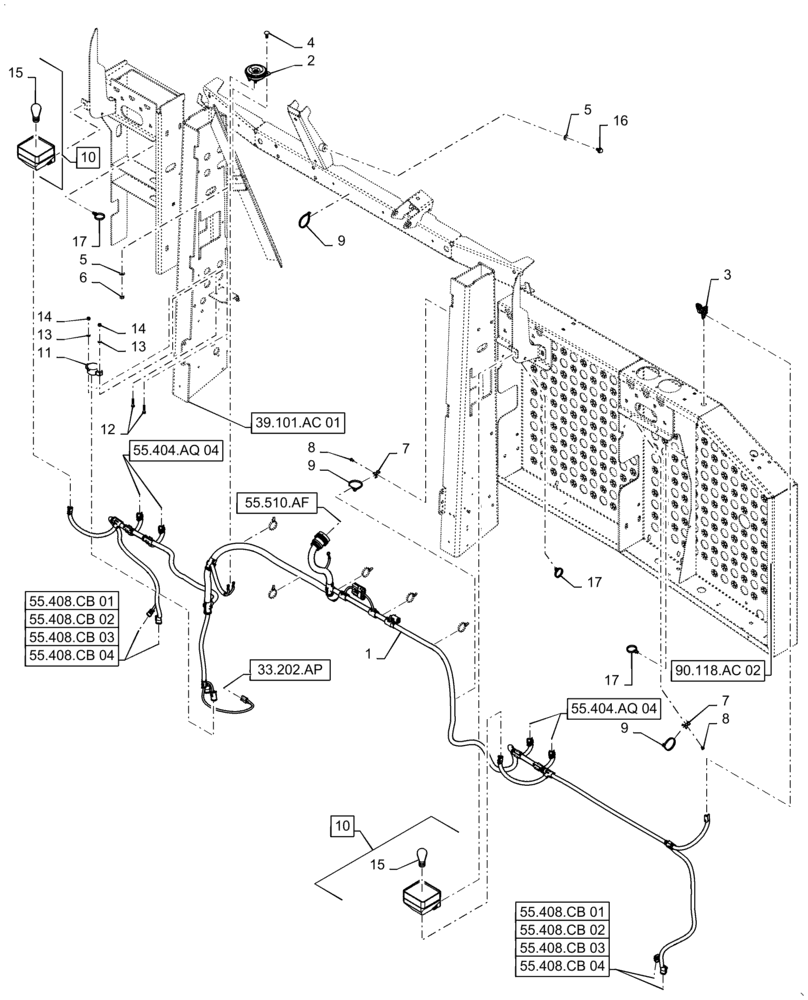

Схема запчастей Case IH 7230 - (55.101.AC[12]) - WIRE HARNESS, OPERATORS LADDER, FRONT (55) - ELECTRICAL SYSTEMS
55.408.cb 03
55.404.aq 04
7
4
14
39.101.ac 01
8
55.408.cb 04
6
10
55.408.cb 04
55.408.cb 02
17
16
55.408.cb 01
15
17
33.202.ap
12
3
5
14
13
55.404.aq 04
17
10
5
90.118.ac 02
1
7
9
55.408.cb 03
9
8
55.408.cb 01
11
55.408.cb 02
55.510.af
2
9
13
15

Артикул

Название

Примечание

Количество

1

47501281

WIRE HARNESS

Operators Platform/Headlights

1шт.

2

87714969

HORN

105 - 118 dBA

1шт.

3

84191453

SOCKET,12/24V, 20A

Aux Power, 4 Pin

1шт.

4

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

6

9706690

NUT,M8 x 1.25, Cl 8

1шт.

7

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

6шт.

8

445394

RIVET,Pop, 3/16" x 1/2" OAL

6шт.

9

86566989

CABLE TIE,208mm L

7шт.

10

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Flood, Incl 15

2шт.

10

47682620

WORK LAMP,Flood, LED, 12V

LIGHT, WORK, LED

2шт.

11

87026294

SENSOR

Inclination

1шт.

12

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

2шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

14

353308

NUT,M6 x 1.0, Cl 8

2шт.

15

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

2шт.

16

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

17

87741307

SECURING STRAP

Fir Tree

8шт.

Выбрано товаров: 18
