(55.101.AC[10]) - HARNESS, FRAME, FRONT

Запчасти Case IH 7230 (55.101.AC[10]) - HARNESS, FRAME, FRONT (55) - ELECTRICAL SYSTEMS

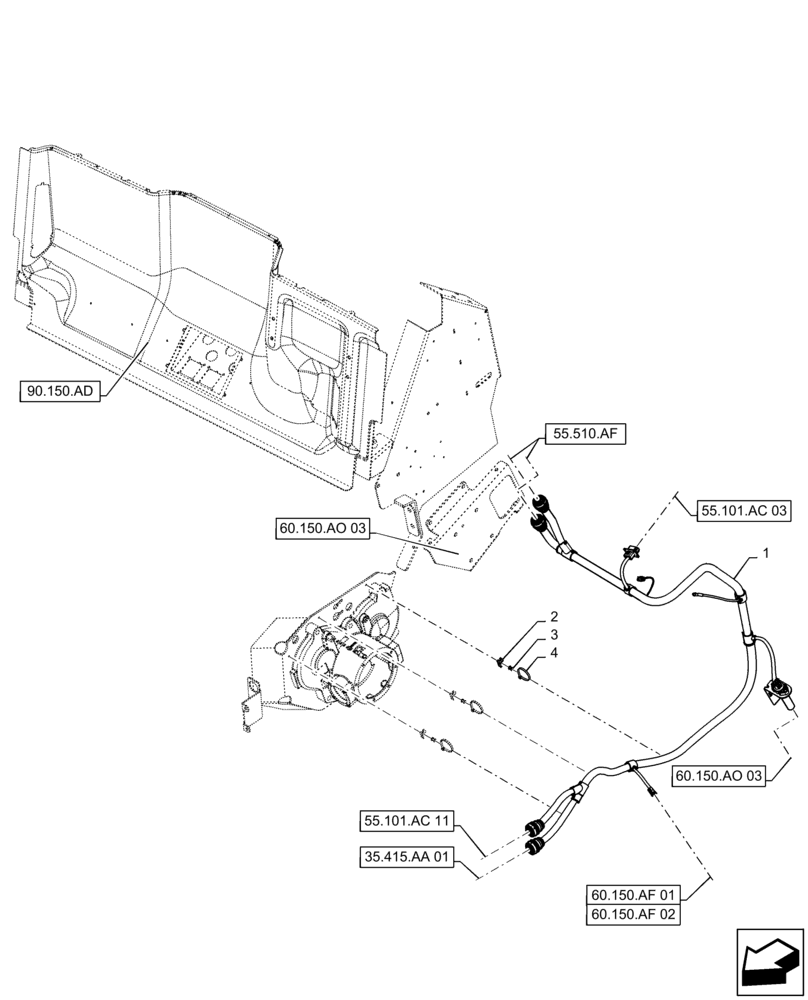

Схема запчастей Case IH 7230 - (55.101.AC[10]) - HARNESS, FRAME, FRONT (55) - ELECTRICAL SYSTEMS
35.415.aa 01
4
60.150.af 01
3
60.150.ao 03
55.101.ac 11
1
55.510.af
55.101.ac 03
60.150.af 02
2
90.150.ad
60.150.ao 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84575526

WIRE HARNESS

Main Frame, Front, Serial Range: -YDG222004

1шт.

1

47574093

WIRE HARNESS

Main Frame, Front, Start Serial: YDG222004

1шт.

2

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

3шт.

3

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

Wire Tire

3шт.

4

86566989

CABLE TIE,208mm L

3шт.

Выбрано товаров: 5
