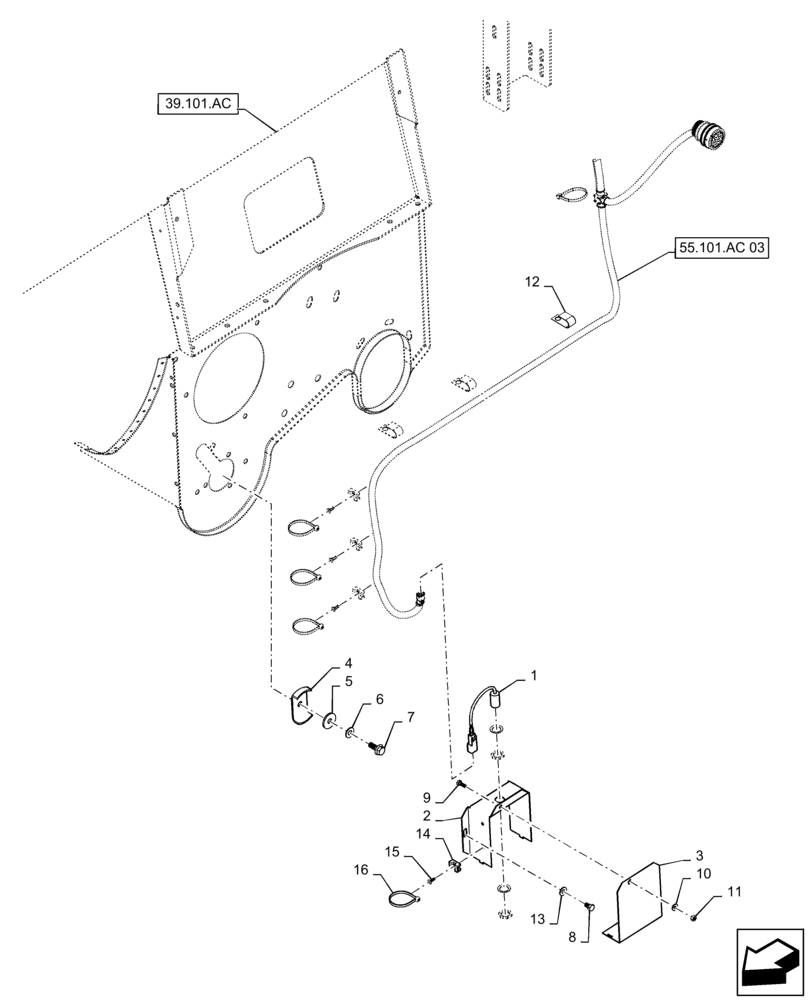

Запчасти Case IH 7230 (55.101.AC[04]) - WIRE HARNESS, CLEAN GRAIN ELEVATOR, SPEED SENSOR (55) - ELECTRICAL SYSTEMS

1

87342073

SENSOR

Clean Grain Auger Speed

1шт.

2

87644336

COVER

Speed Sensor Housing, Top

1шт.

3

87036591

COVER

Speed Sensor Housing, Front

1шт.

4

87108836

PLATE

Speed Sensor Pickup

1шт.

5

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

7

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

8

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

5шт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

11

9706755

NUT,M6, Cl 8

1шт.

12

134577

CLIP,J

3шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

14

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

17шт.

15

445394

RIVET,Pop, 3/16" x 1/2" OAL

17шт.

16

86566989

CABLE TIE,208mm L

29шт.
