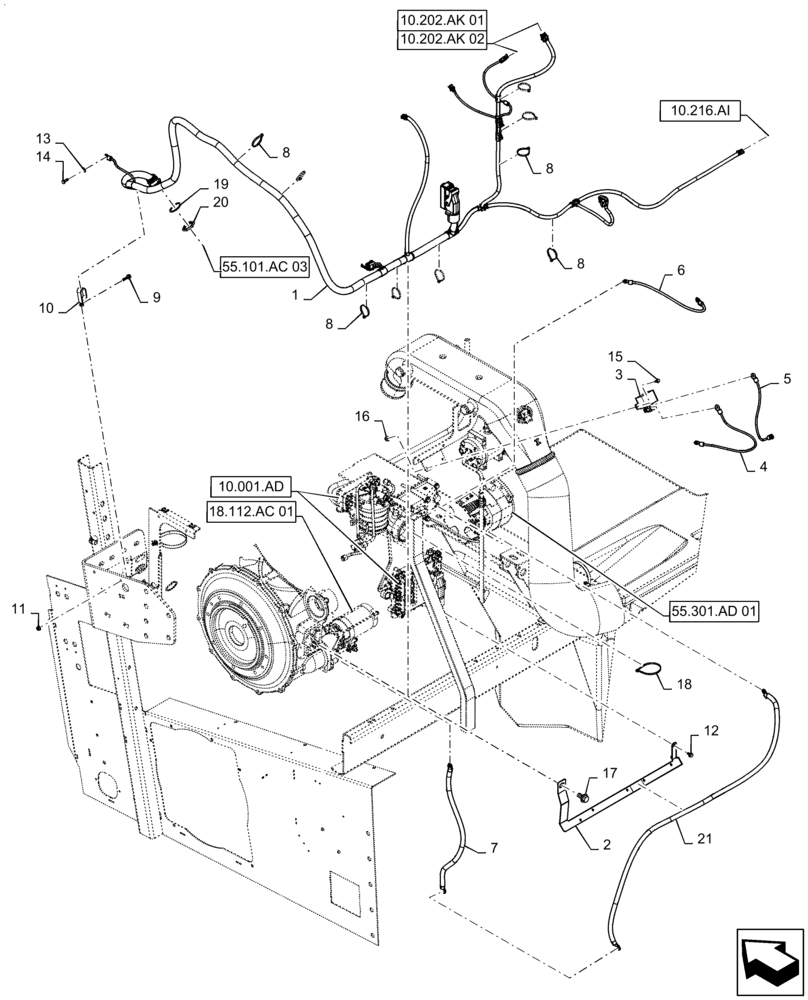

Запчасти Case IH 7230 (55.015.AB[01]) - WIRE HARNESS, ENGINE- 7230 (55) - ELECTRICAL SYSTEMS

1

84575520

WIRE HARNESS

Engine, Cursor 9, Serial Range: -YDG222004

1шт.

1

47501333

WIRE HARNESS

Engine, Cursor 9, Start Serial: YDG222005

1шт.

2

87583801

BRACKET

Harness Support

1шт.

3

86619908

RELAY,12V, 150A

Cold Start

1шт.

4

86611285

ELECTRICAL WIRE

Single Wire, 500mm, Eyelets On Each End, White

1шт.

5

86611286

ELECTRICAL WIRE

Single Wire, 400mm, Eyelets On Each End, Red

1шт.

6

86611287

CABLE,490mm L

Single Wire, 440mm, Eyelets On Each End, Black

1шт.

7

47403320

NEG BATTERY CABLE

675mm OAL

1шт.

8

86566989

CABLE TIE,208mm L

11шт.

9

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

10

87000220

HOSE CLAMP

Harness Retainer

1шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

12

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

16

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

17

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

1шт.

18

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

19

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

20

86619907

NUT,1.6875"-18

1шт.

21

84565716

NEG BATTERY CABLE

1480mm OAL

1шт.
