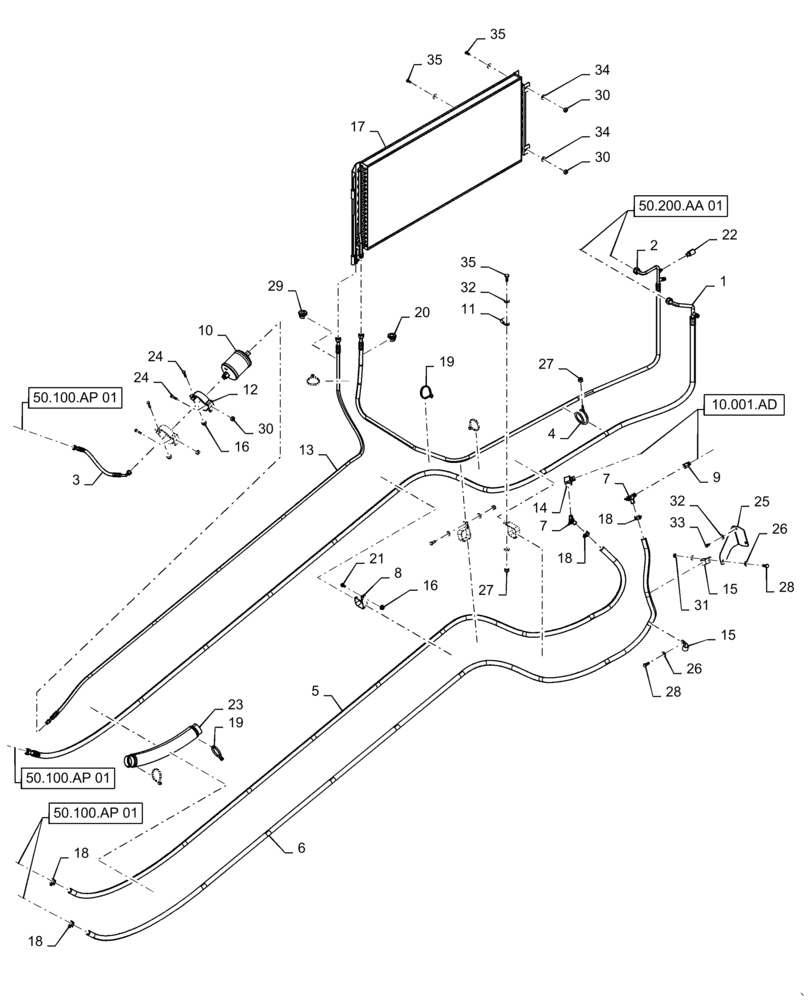

Запчасти Case IH 7230 (50.200.AB[01]) - HVAC HOSES,7230 T2 (50) - CAB CLIMATE CONTROL

1

84397841

A/C HOSE

Suction, 15.9mm ID x 24.5mm OD x 5357mm OAL

1шт.

2

84526765

A/C HOSE

Discharge, 10.5mm ID x 18.4mm OD x 3150mm OAL

1шт.

3

84397843

A/C HOSE

Receiver Drier To Cab, 7.9mm ID x 15.3mm OD x 429mm OAL

1шт.

4

84062500

HOLDER

HVAC Line

1шт.

5

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Return, Cut From Bulk, 4.3M OAL

1шт.

6

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Supply, Cut From Bulk, 4.7M OAL

1шт.

7

301803R1

SHUT-OFF VALVE

90°, Return/ Supply Line

2шт.

8

87000226

HOSE CLAMP

A/ C Line, 26mm W

7шт.

9

84334474

FITTING,1/2"-14 M x 3/8"-18 Fem

1шт.

10

87105840

RECEIVER-DRYER

1шт.

11

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

12

87105841

BRACKET

Mounting, Receiver Drier

2шт.

13

84399431

A/C HOSE

Receiver Drier To Condenser, 8mm ID x 15.7mm OD x 3326mm OAL

1шт.

14

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

1шт.

15

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

16

86981461

FLANGE NUT,M8 x 1.25, Cl 8

7шт.

17

47475783

COOLER ASSY.

A/C/ Oil Cooler Combo

1шт.

18

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

19

529070

CABLE TIE,368.3mm L

5шт.

20

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

21

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

22

87000227

SWITCH, A/C HIGH PRE

1шт.

23

84607268

SLEEVE

Protective, 105.4mm OD x 400mm OAL

1шт.

24

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

25

87542153

BRACKET

Tube Support

1шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

27

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

28

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

29

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

30

9706690

NUT,M8 x 1.25, Cl 8

4шт.

31

100016

NUT,M10 x 1.5, Cl 8

1шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

33

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

34

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

4шт.

35

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
