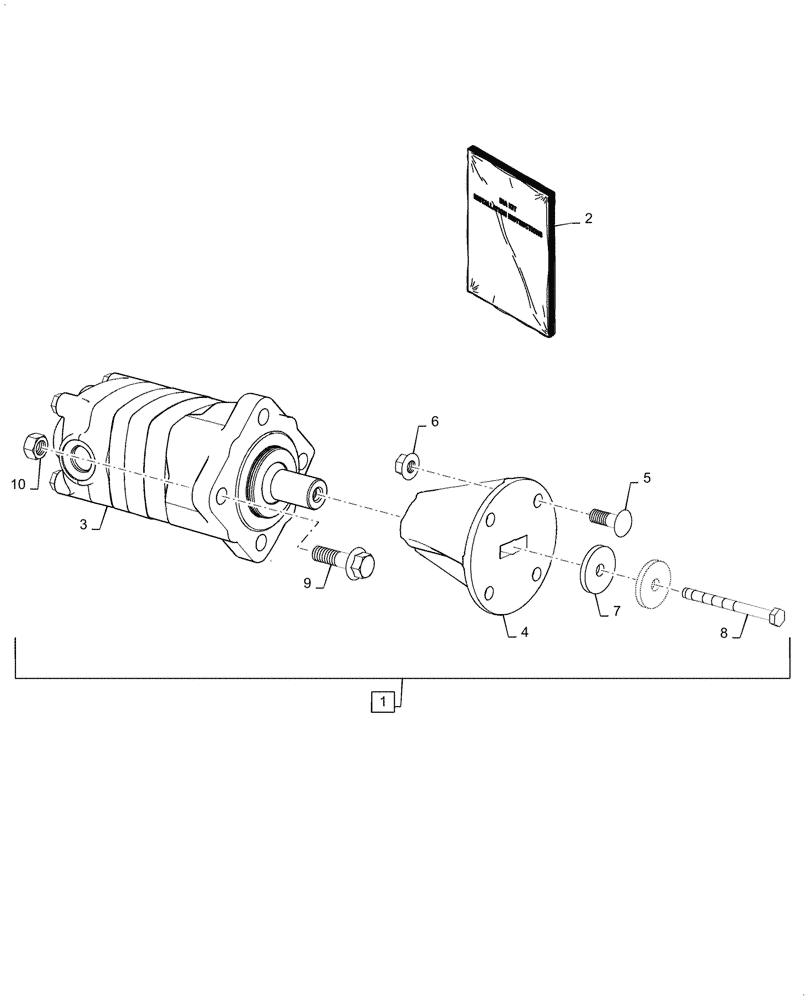

Запчасти Case IH 7230 (35.796.AC[05]) - KIT LH VERTICAL SPREADER MOTOR (35) - HYDRAULIC SYSTEMS

1

48077400

Incl 2 - 10

KIT

1шт.

2

48077388

INSTRUCTION

1шт.

3

47977715

MOTOR-PUMP

90CC Sensor Ready

1шт.

4

47999349

HUB

1шт.

5

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

4шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

7

264198

WASHER,9.9mm ID x 39.1mm OD x 4.8mm Thk

2шт.

8

87302583

LOCK BOLT,M8 x 1.25 x 95.45mm, Cl 10.9

1шт.

9

87695413

BOLT,M12 x 51.8mm, Cl 10.9

4шт.

10

337475

NUT,M12, Cl 10

4шт.
