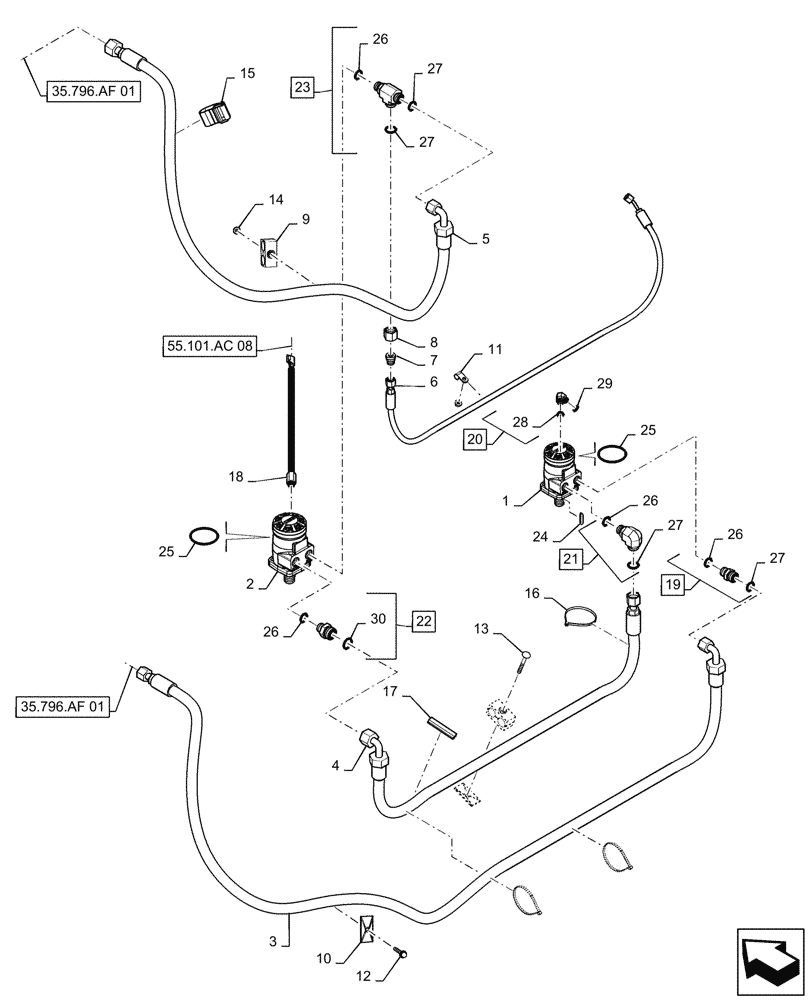

Запчасти Case IH 7230 (35.796.AC[01]) - CHAFF SPREADER, HYDRAULIC SYSTEM, HORIZONTAL, BSN YDG222004 (35) - HYDRAULIC SYSTEMS

1

87519075

HYDRAULIC MOTOR,74CC

Spreader, With Drain

1шт.

2

87519076

HYDRAULIC MOTOR,74CC

Spreader, Speed Sensor Equipped

1шт.

3

84532735

HYDRAULIC HOSE,15.88mm ID x 2800mm L, SAE 100R17

Spreader Motor Pressure

1шт.

4

84532736

HYDRAULIC HOSE,15.88mm ID x 1300mm L, SAE 100R17

Spreader Motor Jumper

1шт.

5

84532737

HYDRAULIC HOSE,15.88mm ID x 1865mm L, SAE 100R17

Spreader Motor Return

1шт.

6

84532738

HYDRAULIC HOSE,6.35mm ID x 1340mm L, SAE 100R17

Spreader Motor Drain

1шт.

7

87610706

REDUCER,1"-14 UNF-2A - 11/16-16 UNF-2A

Adapter, 5/8" x 3/8", ORFS

1шт.

8

85802819

TUBE NUT,1"-14 x 24mm L

ORFS, 16mm

1шт.

9

87000924

CLAMP

25.4mm x 25.4mm

3шт.

10

87000230

PLATE

Hose Clamp

3шт.

11

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

12

87656138

BOLT,M8 x 78.1mm, Cl 10.9

1шт.

13

300660

CARRIAGE BOLT,M8 x 1.25 x 70mm, Cl 8.8

2шт.

14

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

15

84177788

SECURING STRAP

Cinch

1шт.

16

86566990

CABLE TIE,292mm OAL x 4.8mm W

4шт.

17

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

Trim Edge, Black

2шт.

18

87662556

SENSOR

Spreader Speed, RPM

1шт.

19

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

20

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

1шт.

21

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

22

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

1шт.

23

86579705

TEE,1"-14 ORFS x M22 x 1.5 ORB Run

1шт.

24

170030

KEY,8mm x 7mm x 32mm

2шт.

25

9807617

SEAL KIT

Services 1, 2 - 1 Kit Per Motor

2шт.

26

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

28

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

29

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
