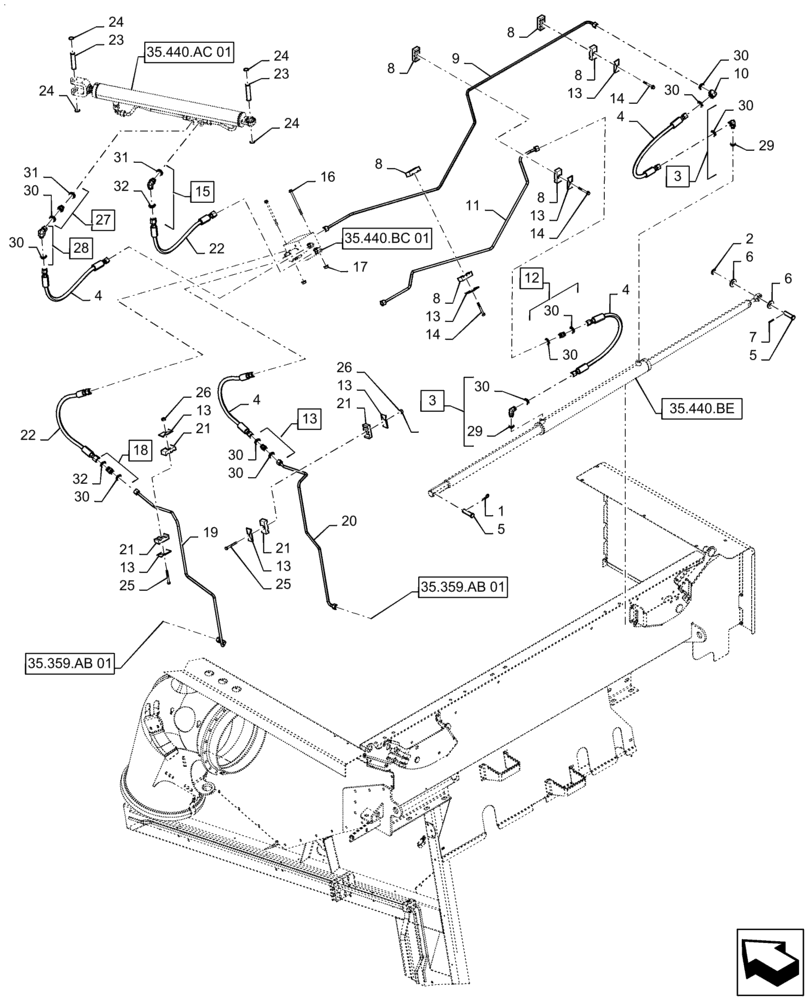

Запчасти Case IH 7230 (35.440.AB[03]) - VAR - 425252, 425369 - HYDRAULIC SYSTEM, UNLOADING TUBE, EXTENSION, COVER (35) - HYDRAULIC SYSTEMS

1

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

2

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

1шт.

3

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl 29, 30

2шт.

4

84204125

HOSE ASSY.

Extension/ Cover Cylinder/ Manifold Feed

4шт.

5

84077752

CLEVIS PIN,15.72mm OD x 61.96mm L

20.62mm OD x 56.8mm OAL

2шт.

6

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

7

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

8

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

Hydraulic Tube

3шт.

9

84329753

HYD TUBE

Valve To Cover Cylinder, GTR

1шт.

10

87564749

ELBOW,90 Degree, 11/16"-16, ORFS

1шт.

11

84329755

HYD TUBE

Valve To Cover Cylinder, GTH

1шт.

12

84431546

UNION,11/16"-16 ORFS

Incl 30

2шт.

13

87000230

PLATE

Hose Clamp, 9mm ID x 65mm OAL x 30mm Thk

7шт.

14

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

15

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 31, 32

1шт.

16

86705432

FLANGE BOLT,Hex, M8 x 120mm, Cl 10.9

M8 x 120mm, Cl 10.9

2шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

18

84431472

HYD CONNECTOR,13/16"-16 ORFS x 11/16"-16 ORFS

Incl 30, 32

1шт.

19

84319512

HYD TUBE

Manifold Feed, P1

1шт.

20

84319514

HYD TUBE

Manifold Feed, P2

1шт.

21

87105732

CLAMP

Hydraulic Tube, 12.7mm ID x 9.52mm ID x 67mm OAL x 30mm Thk

2шт.

22

84398113

HYDRAULIC HOSE

Unload Cylinder Feed/ Manifold Feed

2шт.

23

84254243

PIN,19.05mm OD x 89mm L

19mm OD x 89mm OAL

2шт.

24

300627

SNAP RING,M19, External

4шт.

25

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

26

9706690

NUT,M8 x 1.25, Cl 8

2шт.

27

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

Incl 30, 31

1шт.

28

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl 30

1шт.

29

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

30

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

10шт.

31

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
