Запчасти Case IH 7230 (35.415.AA[01]) - VALVE, FEEDER, HEADER (35) - HYDRAULIC SYSTEMS

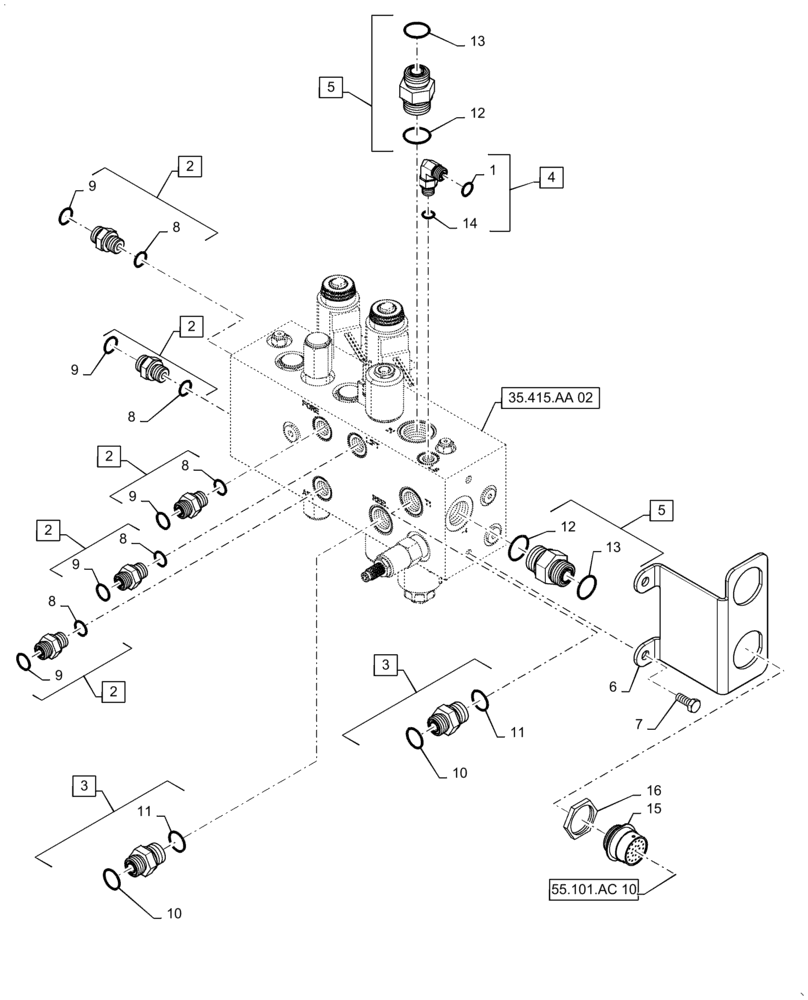

Схема запчастей Case IH 7230 - (35.415.AA[01]) - VALVE, FEEDER, HEADER (35) - HYDRAULIC SYSTEMS
9
8
4
15
35.415.aa 02
2
12
11
1
14
12
2
7
9
13
8
2
5
55.101.ac 10
3
2
9
5
9
10
13
3
16
8
9
6
8
2
8
11
10

Артикул

Название

Примечание

Количество

1

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

2

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 8 - 9

5шт.

3

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Incl 10 - 11

2шт.

4

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

Incl 1, 14

1шт.

5

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 12 - 13

2шт.

6

84533184

BRACKET

Mounting, Feeder Hydraulic Valve

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

8

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

5шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

12

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

15

319151A1

CONNECTOR, ELEC

23 Cavity Receptable

1шт.

16

86619907

NUT,1.6875"-18

1шт.

Выбрано товаров: 16
