Запчасти Case IH 7230 (35.300.BC[03]) - HYDRAULIC SYSTEM, ENGINE (35) - HYDRAULIC SYSTEMS

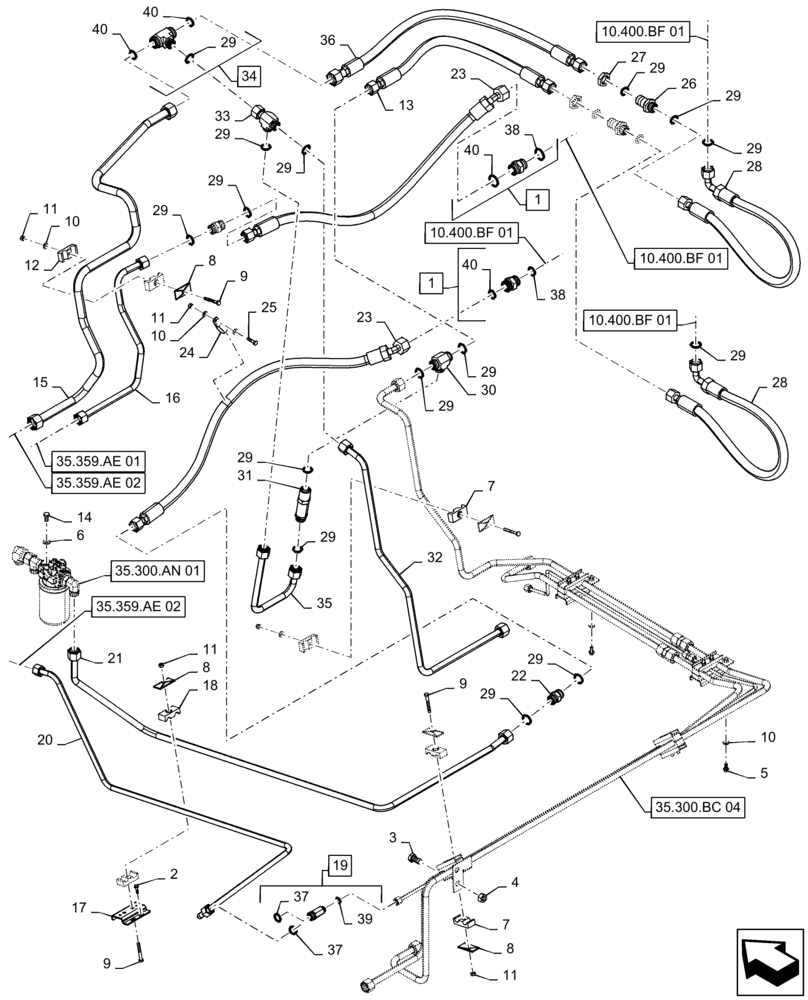

Схема запчастей Case IH 7230 - (35.300.BC[03]) - HYDRAULIC SYSTEM, ENGINE (35) - HYDRAULIC SYSTEMS
29
7
10.400.bf 01
33
29
35.359.ae 01
23
29
11
29
24
29
40
20
29
39
26
3
35.300.an 01
29
34
7
9
29
17
29
29
32
40
29
27
29
23
15
38
25
13
28
19
37
6
40
10.400.bf 01
12
4
38
9
22
28
31
10
35.359.ae 02
8
11
9
14
5
8
36
18
35.300.bc 04
37
10
2
10.400.bf 01
30
29
21
29
35
1
35.359.ae 02
11
29
10
1
16
8
11
40
10.400.bf 01

Артикул

Название

Примечание

Количество

1

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

1 7/16" -12 ORFS x 1 5/16" -12 O-Ring, Incl 38, 40

2шт.

2

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

4шт.

3

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

4

100020

NUT,M16 x 2.0, Cl 8

2шт.

5

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

2шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

7

87000140

CLAMP,Tube, 19.05mm

Hydraulic Tube, 19.05mm ID x 19.05mm ID x 67mm OAL x 30mm Thk

2шт.

8

87000230

PLATE

Tube Clamp

6шт.

9

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

5шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

12

87000146

CLAMP

Hydraulic Tube, 19.05mm ID x 19.05mm ID x 67mm OAL x 30mm Thk

1шт.

13

87646915

HOSE ASSY.

Aux Cooler Inlet

1шт.

14

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

15

84326277

HYD TUBE

Aux Cooler Return

1шт.

16

84326280

HYD TUBE

Main Coolet Outlet

1шт.

17

87109755

BRACKET

Tube Clamp

2шт.

18

87000144

CLAMP

Hydraulic Tube, 19.05mm ID x 15.87mm ID x 67mm OAL x 30mm Thk

2шт.

19

87109744

FITTING

1" -14 x 1" -14 x 11/16" -16, Incl 39, 41

1шт.

20

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

Drain, Bulkhead To Tee

1шт.

21

47462670

HYD TUBE

Main Cooler Inlet

1шт.

22

84100407

UNION,1-3/16"-12 ORFS

2шт.

23

47462672

HYDRAULIC HOSE

Main Cooler

2шт.

24

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

25

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

26

86639064

UNION,1-3/16"-12 ORFS, Bulkhead

2шт.

27

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

2шт.

28

87646890

HOSE ASSY.,19.05mm ID x 1000mm L

Aux Cooler Box

2шт.

29

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

30

87359490

UNION

1 3-16" -12

1шт.

31

87563490

CHECK VALVE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

110 PSI

1шт.

32

87646912

HYD TUBE,0.75" OD

Cleaning Fan Valve Return

1шт.

33

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

1 3/16" -12

1шт.

34

87000837

TEE

1 7/16" -12 x 1 7/16" -12 x 1 3/16" -12 ORFS, Incl 29, 40

1шт.

35

87646913

HYD TUBE,0.75" OD

Aux Cooler Bypass

1шт.

36

87646914

HOSE ASSY.

Aux Cooler Return

1шт.

37

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

38

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

39

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

40

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

Выбрано товаров: 40
