Запчасти Case IH 7230 (35.106.AO[01]) - HYDRAULIC SYSTEM, PTO, 1 (35) - HYDRAULIC SYSTEMS

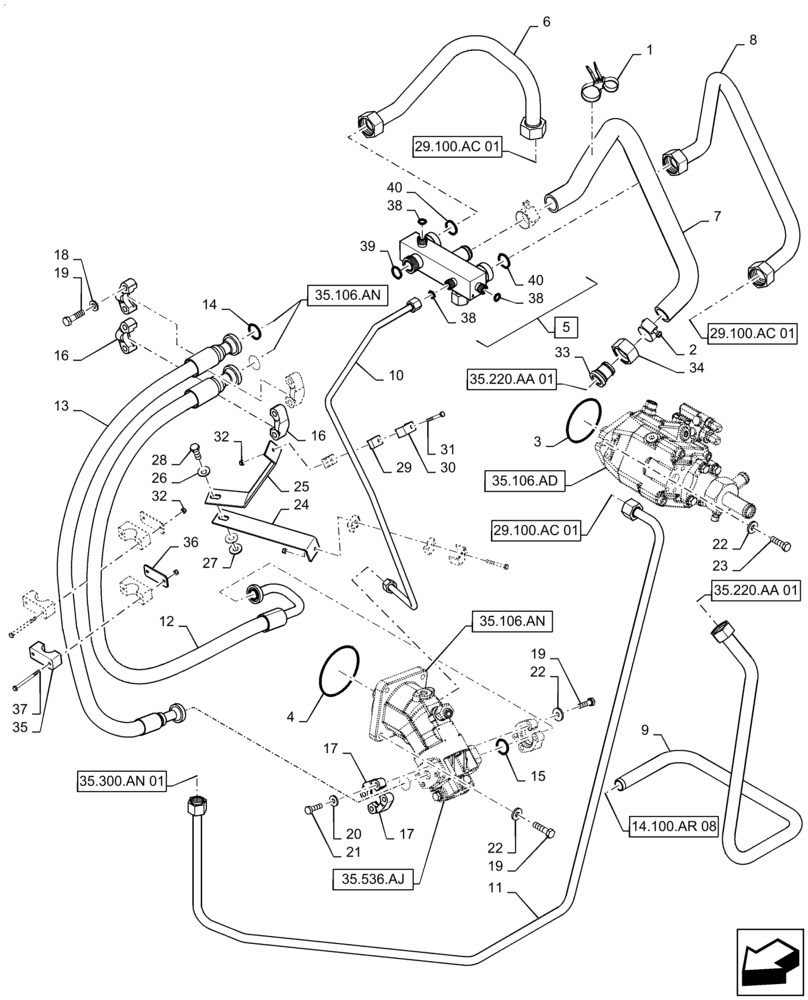

Схема запчастей Case IH 7230 - (35.106.AO[01]) - HYDRAULIC SYSTEM, PTO, 1 (35) - HYDRAULIC SYSTEMS
20
29.100.ac 01
35.220.aa 01
35.106.ad
19
36
10
38
21
40
30
35
37
16
7
14
29
18
35.536.aj
38
9
11
38
27
15
22
17
5
17
23
25
24
13
29.100.ac 01
34
14.100.ar 08
29.100.ac 01
35.106.an
4
33
40
28
2
35.300.an 01
22
16
1
19
32
22
26
39
35.106.an
19
3
35.220.aa 01
6
8
31
32
12

Артикул

Название

Примечание

Количество

1

84386243

CLAMP,489mm L

1шт.

2

86634187

HOSE CLAMP,50.8mm ID - 26.9mm ID, Lined

2шт.

3

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

4

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

5

84317035

HYDRAULIC MANIFOLD

Returns, Incl 38 - 40

1шт.

6

84317290

HYD TUBE

Ground Drive Pump Drain

1шт.

7

84325010

HYDRAULIC HOSE

Charge Pump Supply

1шт.

8

84317294

HYD TUBE

Lube Pump Supply

1шт.

9

87397375

HYD TUBE,26.924 mm ID x 1.25 mm OD x 571.1, 460.1 mm L

PTO Oil Pan Suction

1шт.

10

84317298

HYD TUBE

Rotor Motor Drain

1шт.

11

87641636

HYD TUBE,0.75" OD

Lube To Filter

1шт.

12

84370076

HYDRAULIC HOSE,19.05mm ID x 1600mm L, SAE 100R15

Hyd Assy Rotor Drive A

1шт.

13

84370077

HYDRAULIC HOSE,19.05mm ID x 1500mm L, SAE 100R15

Rotor Drive B

1шт.

14

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

15

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

16

86980732

CLAMP

Split Flange, 81.8mm OD x 24.75mm Thk

4шт.

17

86980731

CLAMP

Split Flange, 19mm ID

4шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

19

87022684

BOLT,Hex, M12 x 45mm, Cl 10.9

12шт.

20

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

21

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

8шт.

22

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

6шт.

23

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

24

87324916

BRACKET

Rotor Drain, Lower

1шт.

25

87324918

BRACKET

Rotor Crain, Upper

1шт.

26

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

27

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

28

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

29

433008

CLAMP

Hydraulic Hose, 6.5mm ID x 31mm OAL x 20mm Thk

4шт.

30

442340

SUPPORT

Bracket, 7mm ID x 38mm OAL x 20mm Thk

2шт.

31

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

32

353308

NUT,M6 x 1.0, Cl 8

6шт.

33

84322357

SLEEVE

Hydraulic Connector

1шт.

34

86639098

TUBE NUT,1-11/16'-12 x 27.5mm Thk

ORFS, 30mm or 1-1/4" Thread

1шт.

35

84190470

CLAMP

Hydraulic Tube, 33.7mm ID x 71mm OAL x 30mm Thk

2шт.

36

2978702

PLATE

7mm ID x 70mm OAL x 3mm Thk

2шт.

37

11030421

BOLT,Hex, M6 x 75mm, Cl 8.8

4шт.

38

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

39

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

40

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

Выбрано товаров: 40
