Запчасти Case IH 7230 (29.300.AP[02]) - VAR - 425163, 425164 - HYDRAULIC SYSTEM, REAR AXLE, PRA (29) - HYDROSTATIC DRIVE

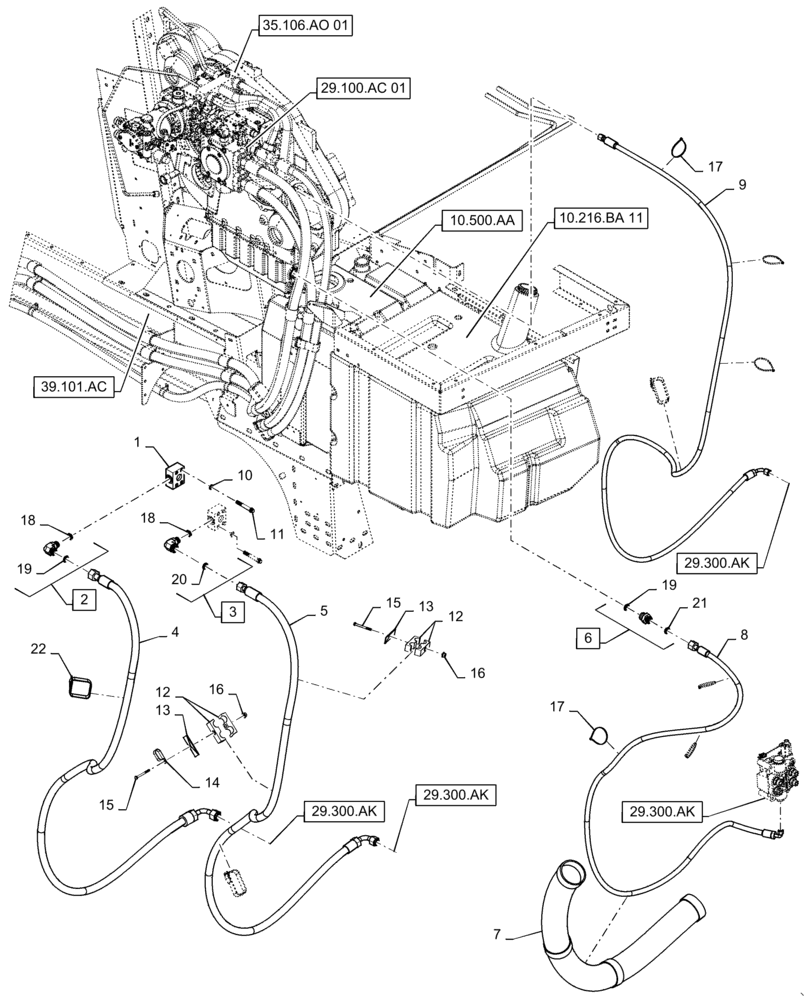

Схема запчастей Case IH 7230 - (29.300.AP[02]) - VAR - 425163, 425164 - HYDRAULIC SYSTEM, REAR AXLE, PRA (29) - HYDROSTATIC DRIVE
18
39.101.ac
15
13
8
35.106.ao 01
22
12
10.500.aa
9
10
11
6
5
19
29.300.ak
13
10.216.ba 11
16
29.300.ak
29.100.ac 01
17
3
4
29.300.ak
21
14
7
29.300.ak
19
12
1
17
16
2
15
18
20

Артикул

Название

Примечание

Количество

1

9818288

ADAPTER

Manifold Adapter

2шт.

2

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 18 - 19

1шт.

3

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl 18, 20

1шт.

4

47475004

HYDRAULIC HOSE

PRA Pressure Port "A" to Hydrostat, 19mm ID x 4140mm OAL

1шт.

5

47475005

HYDRAULIC HOSE

PRA Pressure Port "B" to Hydrostat, 19mm ID x 4230mm OAL

1шт.

6

86579683

HYD CONNECTOR,1-3/16"-12 ORFS x M33 x 2.0 ORB

Incl 19, 21

1шт.

7

87106155

SLEEVE

PRA Hose Protection, 1625mm OAL

1шт.

8

47475007

HYDRAULIC HOSE

PRA Valve Drain to PTO Pan, 12.5mm ID x 3350mm OAL

1шт.

9

47475006

HYDRAULIC HOSE

PRA Motor Drain to PTO Common Drain, 12.7mm ID x 5030mm OAL

1шт.

10

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

8шт.

11

87680392

12 PT SCREW,M14 x 2.0 x 90mm, Cl 12.9

8шт.

12

84154975

CLAMP

Plastic Tube Retainer, 106mm OAL x 30mm Thk

2шт.

13

87000231

PLATE

Retainer, 102mm ID x 30mm Thk

2шт.

14

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

25.4mm ID x 15.9mm W, Lined

1шт.

15

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

16

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

17

86566990

CABLE TIE,292mm OAL x 4.8mm W

6шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

19

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

21

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

22

87108048

SECURING STRAP

330mm OAL x 38mm W

3шт.

Выбрано товаров: 22
