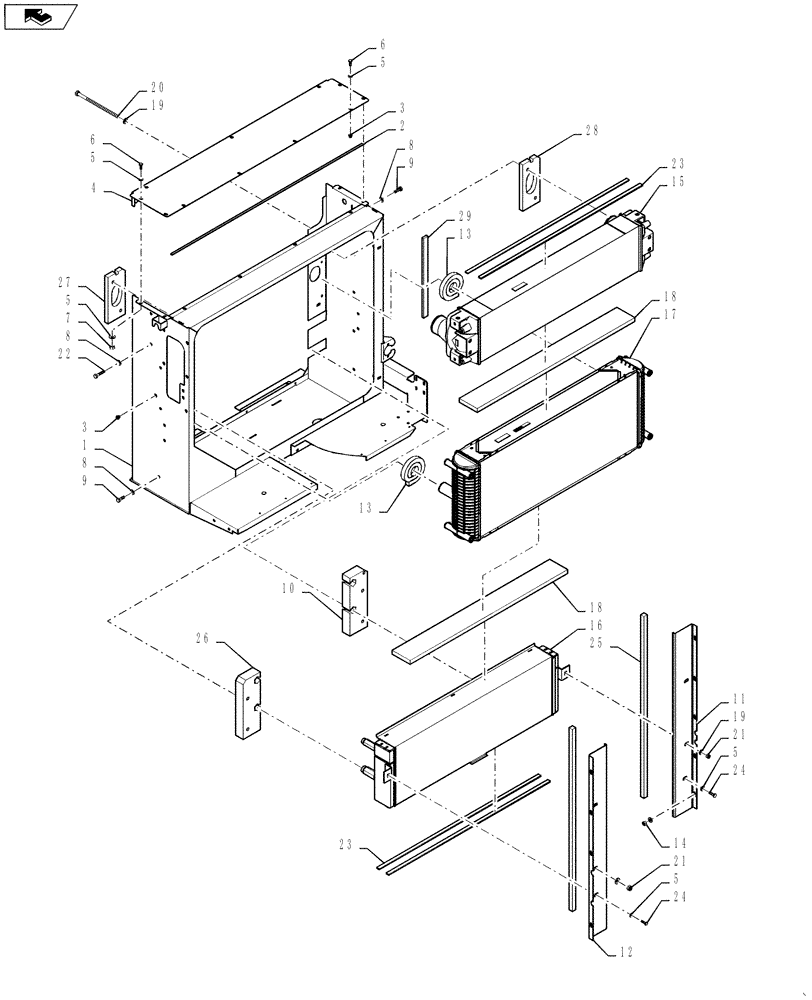

Запчасти Case IH 7230 (10.414.01) - COOLER BOX AND COOLERS- 7230 T2/T4 (10) - ENGINE

1

84493619

FRAME

1шт.

2

87510717

SEALING STRIP,10mm W x 1459mm L x 3.174mm Thk

1шт.

3

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

10шт.

4

87380302

COVER ASSY

Red

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

9706690

NUT,M8 x 1.25, Cl 8

11шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

10

84331748

FOAM INSULATION

1шт.

11

84170569

PLATE

1шт.

12

87388375

PLATE

1шт.

13

WIC291355

PAD

Sold In 25 Ft Bulk Roll. Quant. 25 Indicates Min. Order Quantity

25шт.

14

100016

NUT,M10 x 1.5, Cl 8

13шт.

15

87578692

INTERCOOLER,Charge Air

1шт.

16

87378363

COOLER, OIL

1шт.

17

87378361

RADIATOR

1шт.

18

87584962

SEALING STRIP

2шт.

19

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8шт.

20

364053

BOLT,Hex, M12 x 1.75 x 220mm, Cl 8.8

4шт.

21

100038

NUT,M12 x 1.75, Cl 8

4шт.

22

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

23

NA

NOT SERVICED

Seal Tape, 1/4" x 3/4", Procure Locally

16шт.

24

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

25

87710390

SEALING STRIP,25.4mm W x 1190mm L x 25.4mm Thk

2шт.

26

84359439

FOAM INSULATION

1шт.

27

84359435

FOAM INSULATION

1шт.

28

84331743

FOAM INSULATION

1шт.

29

87419199

FOAM INSULATION,31.8mm W x 520mm L x 12.7mm Thk

1шт.
