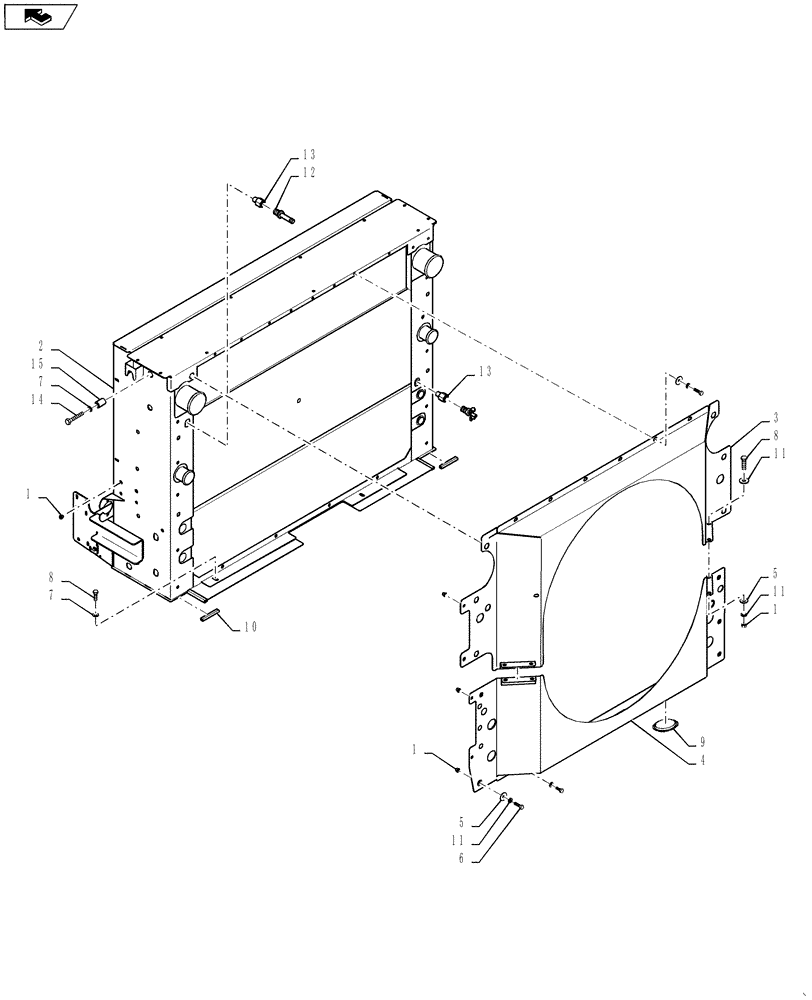

Запчасти Case IH 7230 (10.414.01[2]) - COOLER BOX AND COOLERS 7230 T2/T4 CONTINUED (10) - ENGINE

1

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

20шт.

2

87380303

COVER ASSY

2шт.

3

87576498

SHROUD

1шт.

4

84324391

SHROUD

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

32шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

32шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

9

87000778

PLUG,89mm OD

2шт.

10

291186

PROTECTION STRIP,9.9mm W

2шт.

11

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

32шт.

12

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

13

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

2шт.

14

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

2шт.

15

87735597

BUSHING

2шт.
